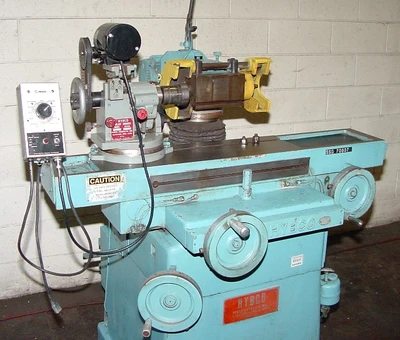

USED 1988 Hybco 1900/2100

Hybco 1900/2100 FORM GRINDER

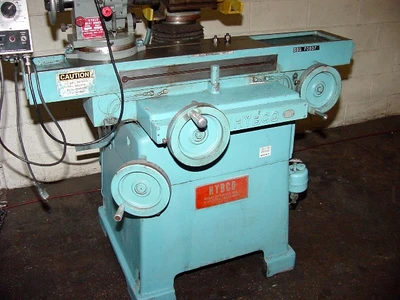

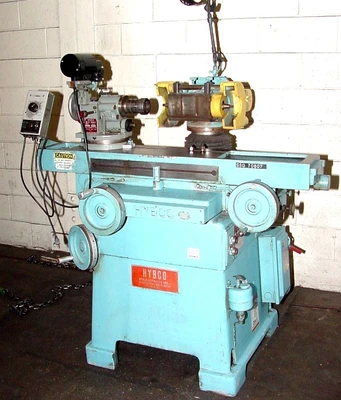

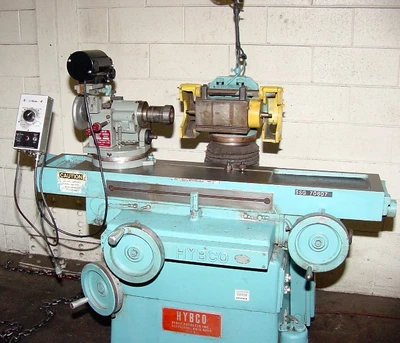

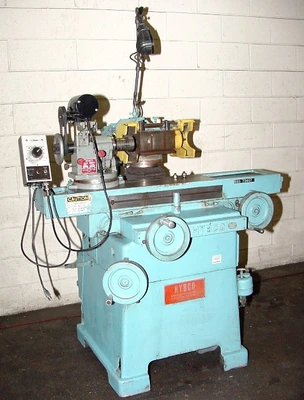

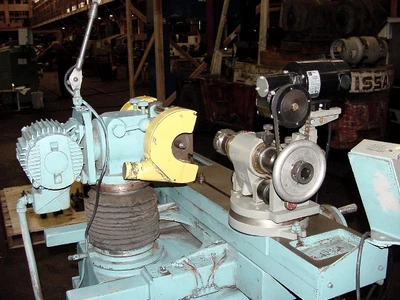

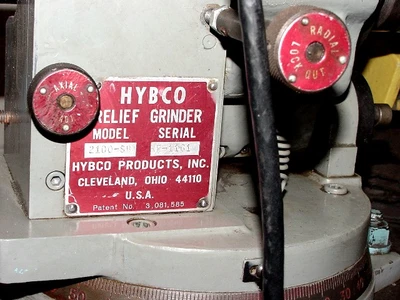

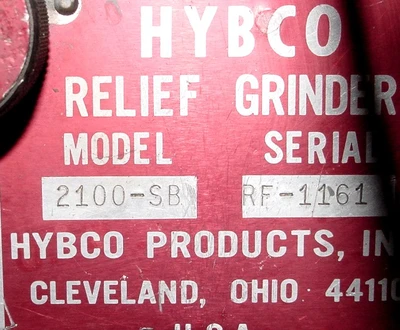

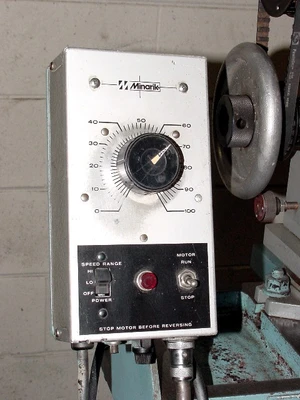

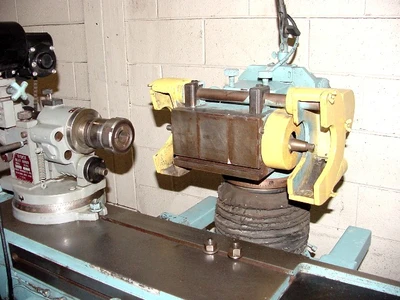

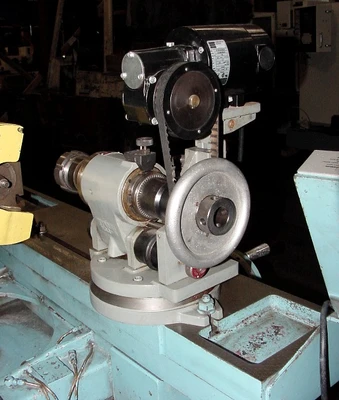

HYBCO Form Relief Grinder Model 1900/2100   S/N   TG376 (New   1988)  Table working surface:6" x 36"  Longitudinal table travel: 14" Cross table travel:6-1/2" Grinding spindle, vertical travel: 7-1/4? Grinding spindle rotation: 360 degrees Grinding spindle tilt, either side of horizontal: 25 Degrees Grinding spindle speeds (2): 3800 & 6400 RPM Grinding wheel maximum diameter: 7" Grinding spindle taper: 3"  per foot  Equipped with: Model 2100-SB two-way (radial and axial) motorized relieving fixture, S/N: RF-1161,   with swivel base,  "Minarik" Electronic  control of spindle speed.   Machine Tool - Full cast iron construction Roller bearing table Wheel head slide controlled by precision ground ball screw BIJUR one-shot lubrication system 1-1/2 H.P. 3/60/460 volt wheelhead drive motor and electrical controls Machine is wired for 460 volt operation.  *** Excellent Condition & Appearance **** Inspect Under Power in our Harrison, NJ Warehouse **

FOR MORE INFORMATION: Call Andy at 973-497-7600
