USED 2007 Engel VULCAN SP510

5 ' X Axis 10 ' Y Axis Engel VULCAN SP510 CNC PLASMA CUTTER

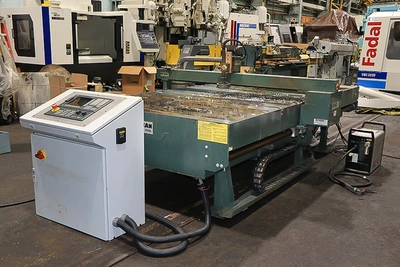

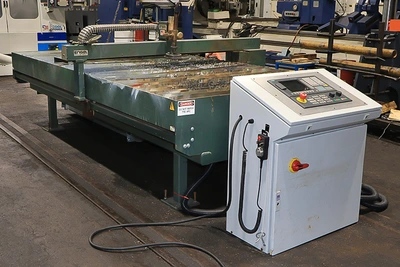

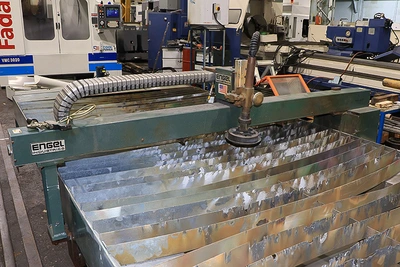

ENGEL VULCAN 5' X 10' CNC PLASMA CUTTER

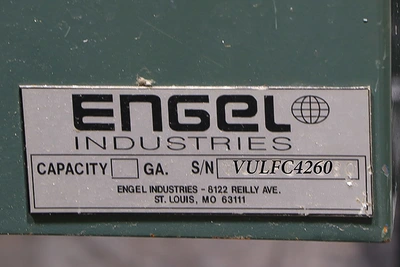

MODEL SP510       S/N VULFC4260       NEW 2007

Specifications:

Cutting Table:

Max. Sheet Thickness ............. 1/2"

Max. Sheet Size .................. 60" x 120"

Max. Sheet Weight ................ 1,000 Lbs.

Cutting Speed:

Depending On Sheet Thickness ..... 1- 1,000 IPM

Max. Positioning Speed ........... 2,000 IPM

Pierce ........................... 1/2"

Power Source:

Adjustable ....................... 20-50 Amps.

Duty Cycle ....................... 40 Amp. 100%

Dimensions (L x W x H): 140" x 65" x 55"

Weight: 3,000 Lbs.

EQUIPPED WITH:

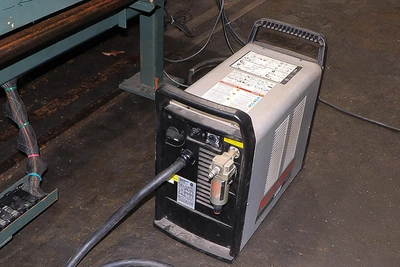

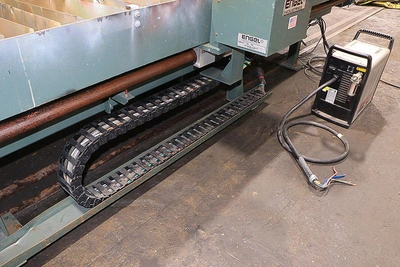

- HYPER POWERMAX 1000 G3 SERIES POWER SUPPLY

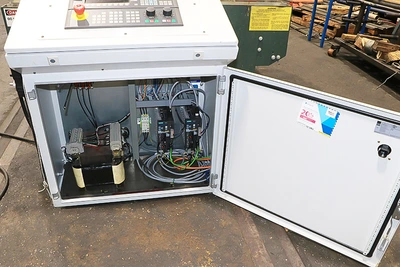

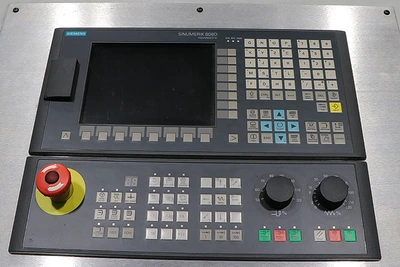

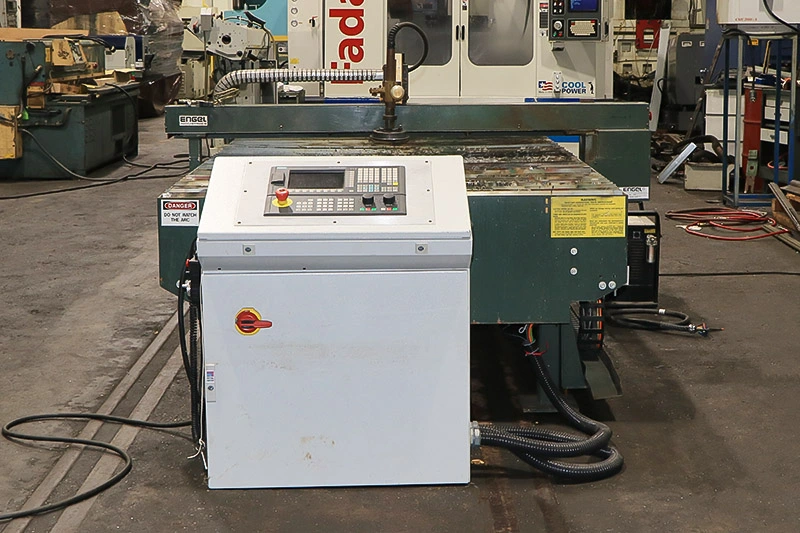

- SIEMENS SINUMERIK 808D ADVANCED M CONTROL

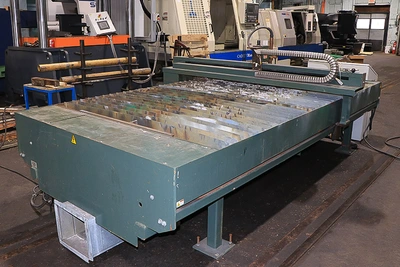

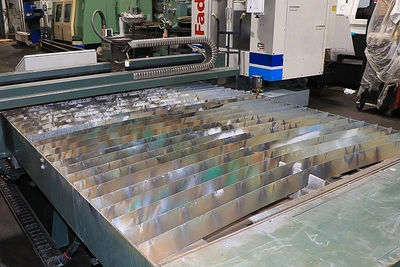

- DOWN DRAFT TABLE

- SIEMENS CONTROL, NEW SERVOS AND BALLSCREWS ALL INSTALLED 4 YEARS AGO

FOR MORE INFORMATION: Call Rick at 973-497-7560
