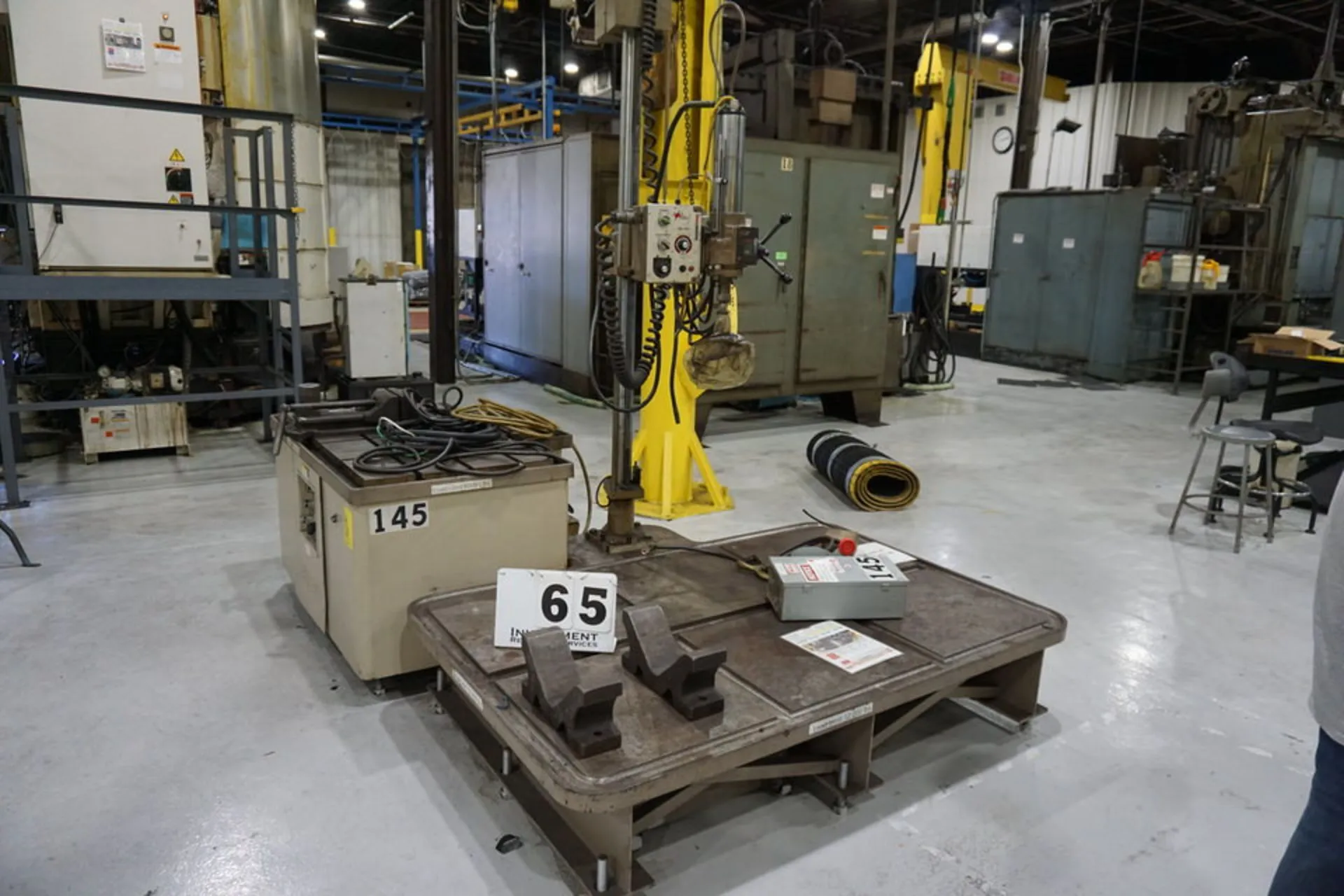

USED 2017 Electro Arc 10DVHK, 2017, "Q" HEAD& AUTO FEED, 440V SINGLE PH

20 KVA Electro Arc 10DVHK, 2017, "Q" HEAD& AUTO FEED, 440V SINGLE PH TAP DISINTEGRATER, SUB TABLE

   ELECTRO-ARC TAP DISINTEGRATOR

 WITH AUTOMATIC DOWNFEED, "Q" HIGH-PRECISION HEAD,

MODEL: 10DVHK     S/N: 15046      NEW: 2017

TABLE WORK SURFACE .... 50.5" X 39.5"

TABLE CAPACITY ........ 6,000 LBS.

CROSSARMS LENGTH ...... 48"

COLUMN HEIGHT ......... 60"

CUTTING SPEEDS:

1/4".............1 MIN.

5/16"............1-1/2 MIN.

3/8".............1-3/4 MIN.

1/2".............2 MIN.

5/8".............3-1/2 MIN.

3/4".............4 MIN.

  EQUIPPED WITH:

“HEAVY DUTY” "IN-THE-QUILL" “Q’ DISINTEGRATOR HEAD

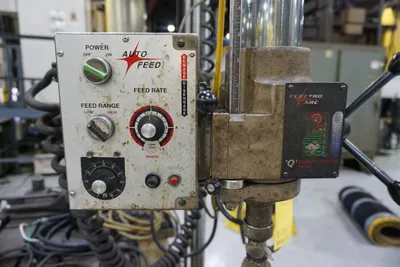

POWER ELECTRIC AUTOMATIC DOWNFEED UNIT

RADIAL CROSSARM, DOUBLE BARREL DESIGN WITH LINEAR BALL BEARINGS

ARM CARRIAGE ROTATES 360 DEGREES AROUND COLUMN,

  MANUALLY LOCKS INTO POSITION

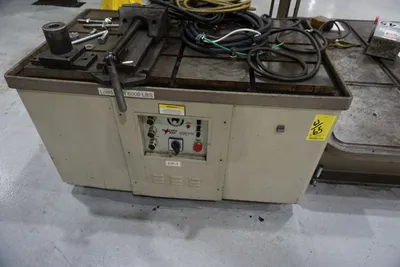

PULL-OUT COOLANT TANK

MACHINE IS PORTABLE ON 4-HEAVY DUTY CASTERS

SCREW DOWN LEGS, ADJUSTABLE

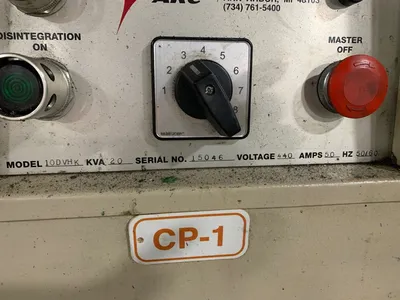

20 KVA POWER RATING, 10 CUTTING HEAT SETTINGS

WIRED FOR 440 VOLTS/SINGLE PHASE/60 CYCLE ELECTRICS, 20 AMPS

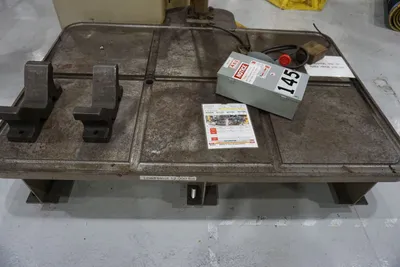

AUXILLARY TABLE INFO:

EACH QUADRANT (6) 21" X 20.5"

WORK SURFACE 67"L-R x 43"F-B

** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **

*** LIKE NEW CONDITION & APPEARANCE **

** - ORIGINAL TAN/BROWN COLOR SCHEME ***

FOR MORE INFORMATION: Call Andy at 973-497-7600
