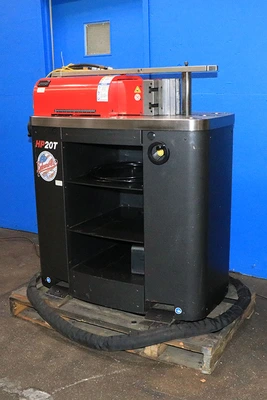

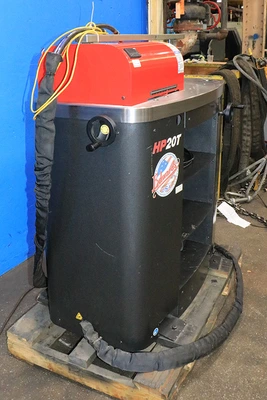

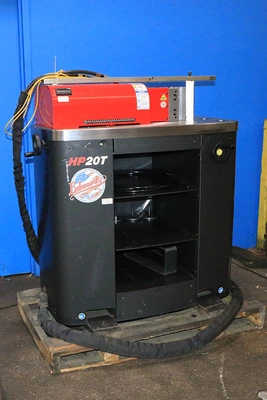

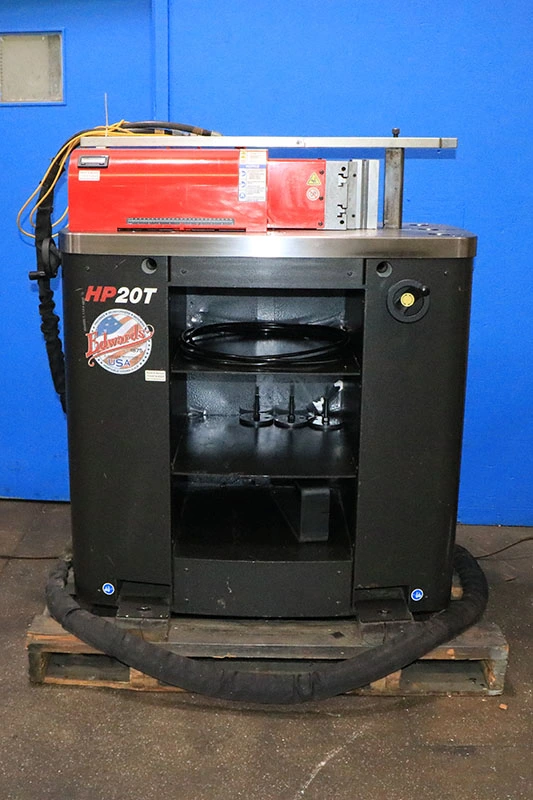

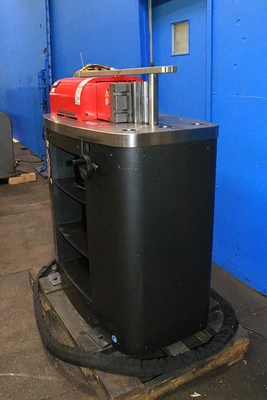

USED 2018 Edwards HP20T

20 TON EDWARDS HYDRAULIC BENDER

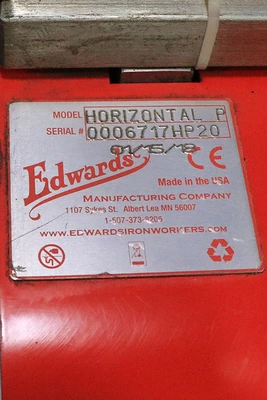

MODEL HP-20      S/N 0006717HP20      NEW 2018

SPECIFICATIONS:

RAM FORCE ...................... 20 TON

MAXIMUM STROKE ................. 10"

TABLE SIZE ..................... 24" WIDE X 42" LONG

CYLINDER ....................... 2-1/4"

MOTOR .......................... 5 H.P.

VOLTAGE AVAILABLE .............. 230/460 3 PH 60 HZ

FOOTPRINT ...................... 30" W X 48" L X 60" H

WEIGHT ......................... 1,500 LBS

STANDARD FEATURES:

- 20' quick-connect hoses for simple "plug & play" operation

- Designed for maximum flexibility with 4 pin locations to accept wide variety of custom tooling

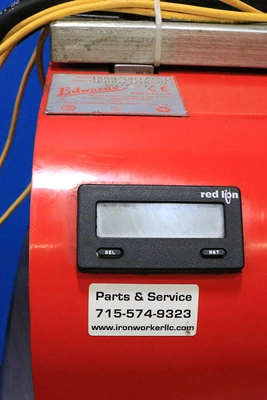

- Digital encoder provides enhanced accuracy for precise repeatability

- Easy-to-use hand/jog controls with integrated E-Stop

- Robust construction with 2" machine heavy-duty table

- Ships with a standard 6" Brake with 4-Way Die able to create clips, brackets, hangers and more

- Storage shelves perfect for holding additional tooling

FOR MORE INFORMATION: Call Rick at 973-497-7560
