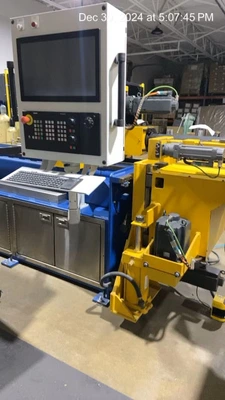

USED 2021 Pines e40
Overview
Description
1.5" Dia. Pines e40 PIPE BENDER
Specifications

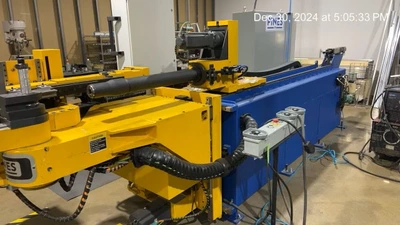

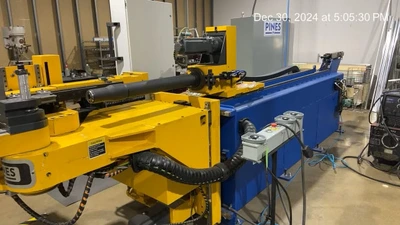

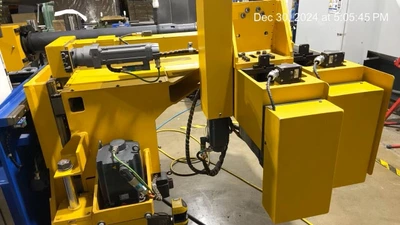

2021 Pines e40 Electric 10-Axis CNC Rotary Bender
SPECIFICATIONS:
Maximum radius – 6”
Minimum radius to diameter ratio – 1D
Programmable motion – 10-Axis
Maximum bend angle – 190°
Bend arm repeatability - +/- 0.05°
Carriage repeatability - +/- .005”
Bend arm forward speed – 25 RPM
Standard tube length over mandrel – 13’
B-Axis travel: 360° - Speed: 60 RPM
Y-Axis travel: 6’ - Speed: 2000 IPM
Working height ~ 48.5”
Voltage – 480 3 Phase 60 Hz. 50 amp circuit required (220/3/60 @ 80 amps also available)
CAPACITIES:
Round tubing, mild steel Y.P. to 40,000 psi – 1-1/2” x .109”
Round tubing, non-ferrous Y.P. to 25,000 psi – 1-5/8” x .187”
Round tubing, Stainless steel Y.P. to 60,000 psi – 1-3/8” x .065
Steel pipe, schedule 80 – 1
Square tubing, mild steel – 1-1/8“ x .125
MACHINE CONTROL:

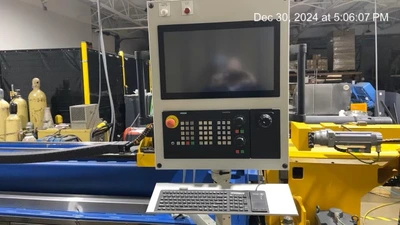

Siemens 840D 10-Axis CNC Control
SIMATIC IPC 477E. 22" Multitouch neutral
Windows 10 Emb loaded with Sinumerik Operate and WinCC RT software
Safety Integrated motion control system with reserve IO
Single Block operation for bend recipe troubleshooting
Machine operation animation
Keyboard with Touch Mouse
Advanced Self Diagnostics
Detailed Error Messages with Troubleshooting Procedures
Built in Siemens CNC Help manuals with descriptions
Enhanced Error Reporting and Logging
Configurable Levels of Operation
Displays and Rotates Parts In 3D
Edit/Display Part Programs in XYZ, YBC, Absolute modes
Edit/Display Parts Programs in Millimeter, Inches or Feet and Inches
Bend in Open Collet or Closed Collet Mode
Bend recipes can be stored Locally or in a Remote PC location through LAN
Automatic Part Program Backups
Programming from CAD source (Optional)
Production Monitoring
STANDARD EQUIPMENT:
Counterclockwise Rotation
Servo Controlled Swing Arm
Hitch Feed Capable
PDI Zone Recapture
In-Line Programable Pressure Die Assist – With Z-Axis Shift
Clamp Die Holder
Electric Swing & Stationary Arms – Quick Change Programmable Pressure Tooling
Wiper Die Holder

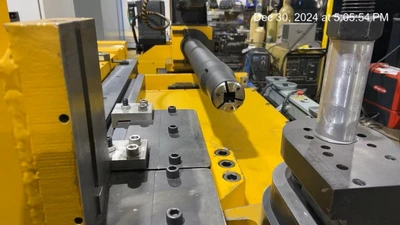

Programable Mandrel Extractor – Tangent Position and Extract Length
Heavy Duty Automatic Mandrel Lubricator
Laser Safety Scanner
Dual Palm Remote Operator Control
Roll Forming (Calendaring) Capability on Top Stack (Additional tooling required)
Self-Diagnostic Program
Carriage Push for Shorter Grip Lengths
Spring Back Compensation
Servo Drives Power to 10 Axes. (Y, B, C, PDA, PDA Z, Mandrel, Nose X, Nose Z,
Clamp, and Pressure Die)
MACHINE HAS ALMOST NO USE
FOR MORE INFORMATION: Call Rick at 973-497-7560
