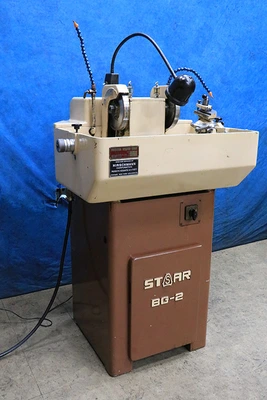

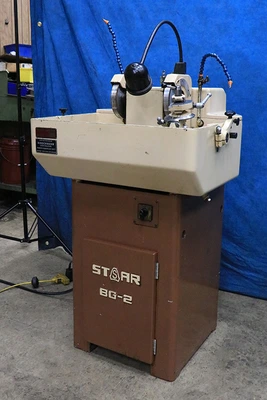

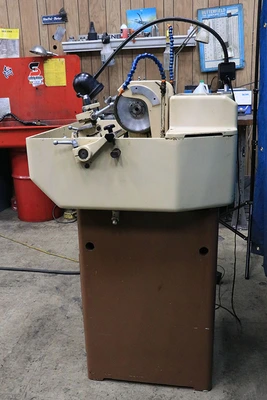

USED 1984 Star BG-2, 1984, DOUBLE END SPINDLE, UNIVERSAL FIXTURE
Overview
Description

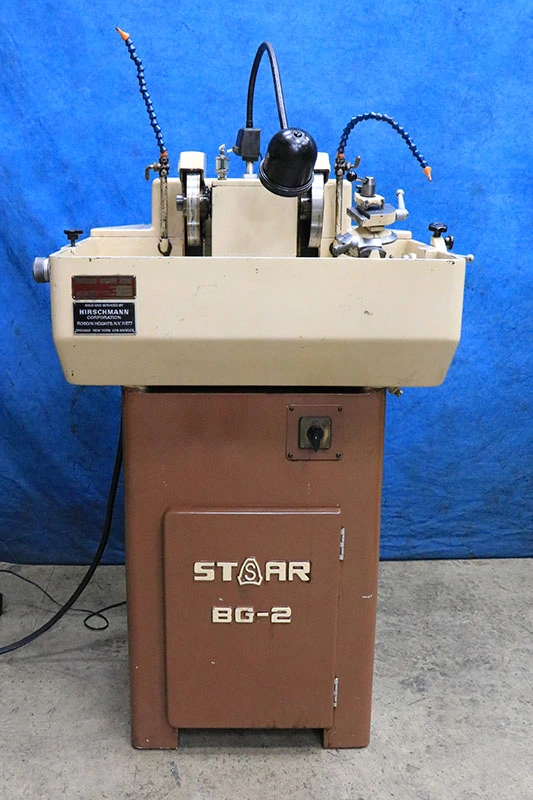

7" Wheel Star BG-2, 1984, DOUBLE END SPINDLE, UNIVERSAL FIXTURE CARBIDE GRINDER
Specifications
STAR "MADE IN JAPAN" "HIGH-PRECISION"
CARBIDE TOOL GRINDING & LAPPING MACHINE
SIMILAR TO AGATHON MODEL 175-DIA

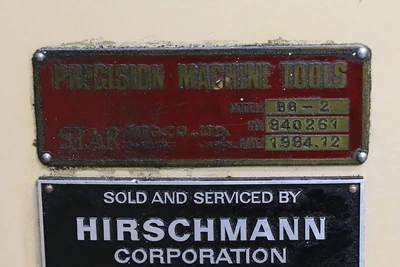

MODEL: BG-2 S/N: 840261 NEW: 1984
"The BG-2 offers an ideal solution for
the requirements of producing a large
variety of carbide single point turning
tools, as well as their maintenance
by resharpening.
Diamond-double-side rough and finish
grinding and lapping wheels eliminate
re-clamping of tools.
Direct and accurate reading of angular
setting facilitates extremely precise
adjustment of tool holder to cutting angle.
Micrometer infeed, combined with a
sensitive reciprocating motion of the tool
procedure perfect cutting faces and edges,
while providing for long life of grinding
and lapping wheels."
WHEEL SIZE ...................... 7"DIA. x 1- 1/4"B x 1"W
SWIVELLING ANGLE OF TOOLHOLDERS:
HORIZONTAL PLANE .............. 90° (RIGHT& LEFT)
VERTICAL PLANE ................ 32° (RIGHT& LEFT)
FRONT & BACK .................. 45°
SHANK SIZE OF TOOLS ............. 7/8" SQUARE
INFEED STROKE ................... 5/8"
SPINDLE MOTOR ................... 0.4 KW
COOLANT MOTOR ................... 0.6 KW
FLOOR SPACE ..................... 30" x 30" x 47"H
APPROX. WEIGHT .................. 880 LBS.
EQUIPPED WITH:

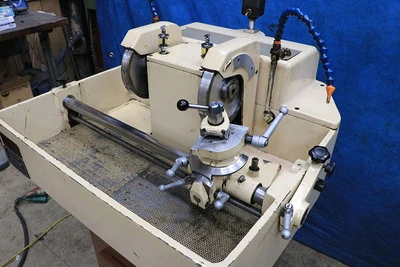

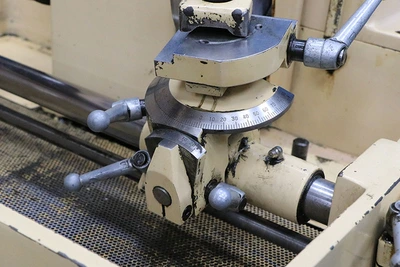

SWIVELLING UNIVERSAL TOOL FIXTURE

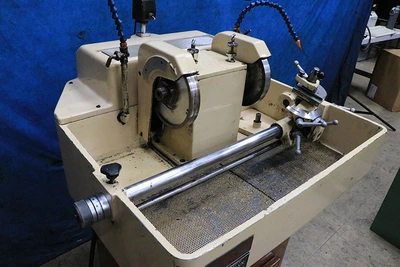

TWO DIAMOND WHEELS
COOLANT SYSTEM
WIRED PRESENTLY FOR 3/60/220 VOLTS
Available for Purchase Separately
for this Machine:
Star Model "ST-15"
"Small Cutter Grinding Attachment"
link to video: https://youtu.be/TTXe4f_6EyM?si=kVk93_24eHYgpWza
FOR MORE INFORMATION: Call Andy at 973-497-7600
