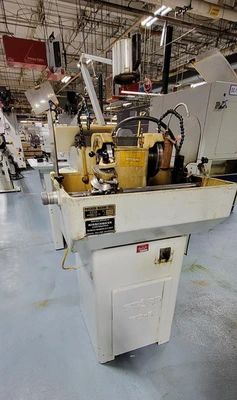

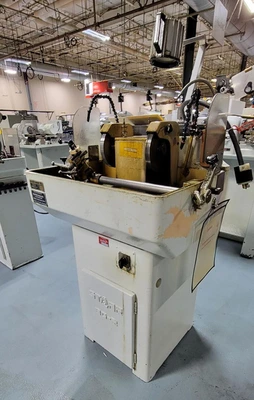

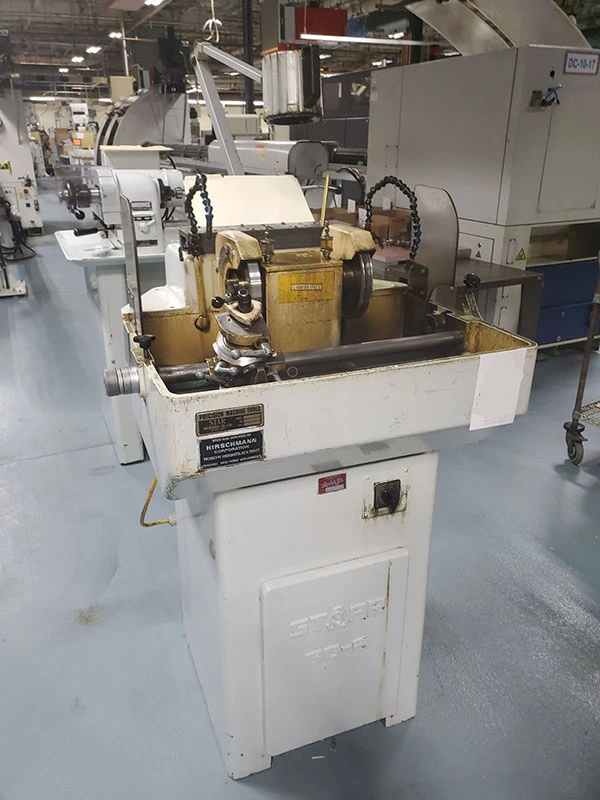

USED 1989 Star BG2, SIMILAR TO AGATHON 175-DIA, NEW 1989
Overview
Description
7" Wheel 1HP Motor Star BG2, SIMILAR TO AGATHON 175-DIA, NEW 1989 CARBIDE GRINDER
Specifications
STAR "MADE IN JAPAN" "HIGH-PRECISION"
CARBIDE TOOL GRINDING & LAPPING MACHINE
SIMILAR TO AGATHON MODEL 175-DIA
MODEL: BG-2 S/N: 890600 NEW: 1989
"The BG-2 offers an ideal solution for the
requirements of producing a large variety
of carbide single point turning tools,
as well as their maintenance by resharpening.
Diamond-double-side rough and finish grinding
and lapping wheels eliminate re-clamping
of tools.
Direct and accurate reading of angular setting
facilitates extremely precise adjustment of
tool holder to cutting angle.
Micrometer infeed, combined with a sensitive
reciprocating motion of the tool procedure perfect
cutting faces and edges, while providing for
long life of grinding and lapping wheels."
WHEEL SIZE ...................... 7"DIA. x 1- 1/4"BORE x 1"WIDTH
SWIVELLING ANGLE OF TOOLHOLDERS:
HORIZONTAL PLANE .............. 90 DEG. (RIGHT& LEFT)
VERTICAL PLANE ................ 32 DEG. (RIGHT& LEFT)
FRONT & BACK .................. 45 DEG.
SHANK SIZE OF TOOLS ............. 7/8" SQUARE
INFEED STROKE ................... 5/8"
SPINDLE MOTOR ................... 0.4 KW
COOLANT MOTOR ................... 0.6 KW
FLOOR SPACE ..................... 30" X 30" X 47"H
APPROX. WEIGHT .................. 880 LBS.
EQUIPPED WITH:

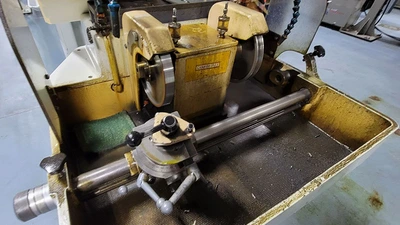

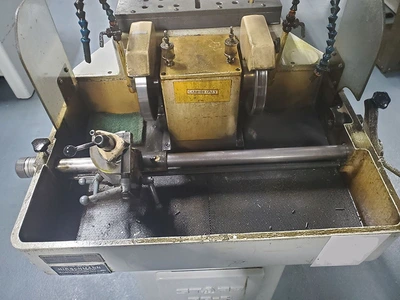

SWIVELLING UNIVERSAL TOOL FIXTURE
TWO DIAMOND WHEELS
COOLANT SYSTEM
WIRED PRESENTLY FOR 3/60/220 VOLTS
Available for Purchase Separately for this Machine:
Star Model "ST-15" "Small Cutter Grinding Attachment",
Uses W-20 Collets
** EXCELLENT CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
FOR MORE INFORMATION: Call Andy at 973-497-7600
