USED Opti-Dress E, FACTSTOR DRO, COMPLETE, REFURBISHED BY USA REP

Opti-Dress E, FACTSTOR DRO, COMPLETE, REFURBISHED BY USA REP WHEEL DRESSER

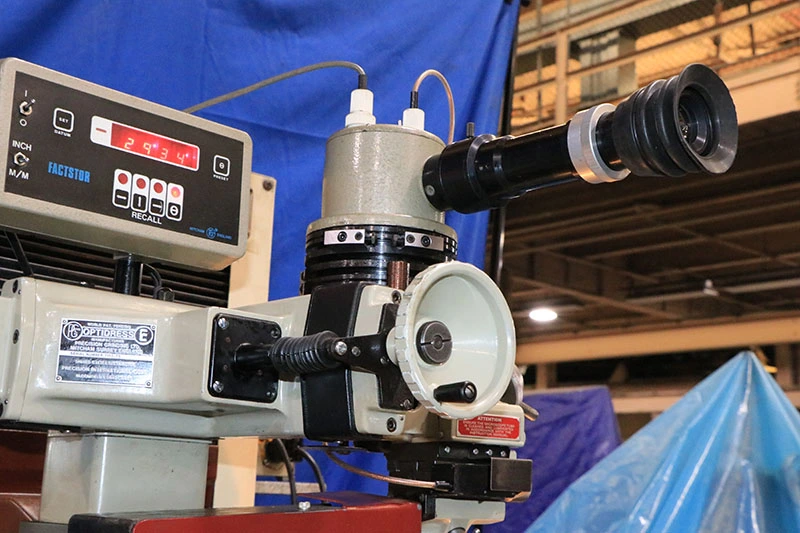

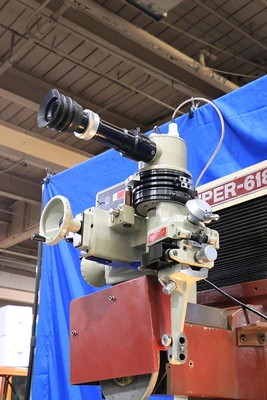

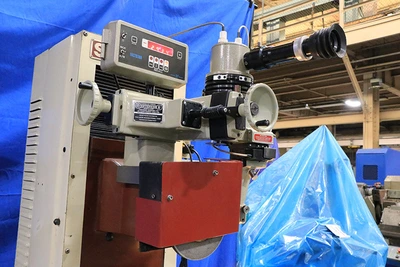

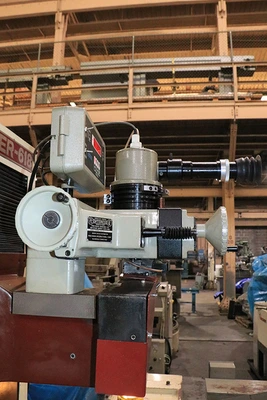

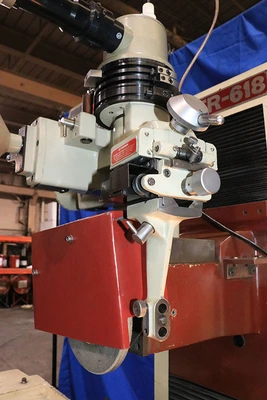

  "OPTI-DRESS" E FORM WHEEL DRESSER"

"REFURBISHED BY "PRECISION INT'L",

 THE USA REP. FOR OPTI-DRESS"

(MADE BY PG TECHNOLOGY IN GREAT BRITIAN)

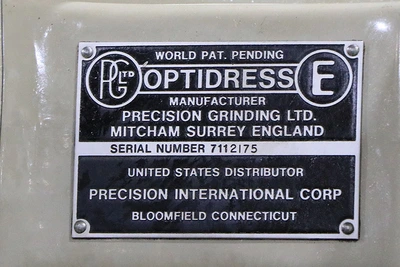

  MODEL: E    S/N: 7112175

Overview

The Optidress E Form Wheel Dresser easily

 mounts to your surface grinder — without

 removing the job from the chuck. Reduce

 the chore of form wheel dressing to

 seconds instead of hours, and free your

 highly trained operators for other tasks.

Features

Tolerances to .0001”
Spindle-mounted — re-dresses wheel
 in seconds without interfering with
  standard operation
Multiple dressing in a single set-up
 — do a combination of angles and radii
Highly accurate — forms wheels
  to ± 0.0002”
Dress a wheel in under 3 minutes
 — re-dress it in seconds
Improves toolmakers’ skills as well
 as production times and accuracy
Most applications have a one-year
 payback
Proven design — thousands of units
 in use across the nation

CONTROL OVER ROTARY, ANGULAR & COORDINATE MOVEMENTS

  OF THE DRESSING TOOL.

- DRESSES A RADIUS

- TANGENTAL DRESSING

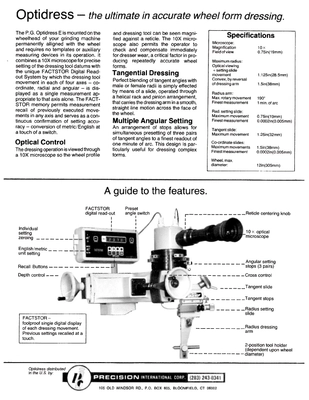

FOR MORE INFORMATION, SEE THE MANUFACTURER'S

  WEBSITE .....www.precint.com

 MANUFACTURER'S REPRESENTATIVE IN USA,

  "PRECISE INTERNATIONAL" (860) 243-0341

SPECIFICATIONS:

MAGNIFICATION .......................... 10X

FIELD OF VIEW .......................... 19mm (0.75")

MAXIMUM RADIUS:

OPTICAL VIEWING ........................ 9.5mm (0.375")

INCLUDING SETTING SIDE MOVEMENT ........ 28.5mm (1.125")

CONVEX, BY REVERSAL OF DRESSING ARM .... 38mm (1.5")

RADIUS ARM:

MAX. ROTARY MOVEMENT ................... 190 DEGREES

FINEST MEASUREMENT ..................... 1 MIN. OF ARC

RADIUS SETTING SLIDE:

MAXIMUM MOVEMENT ....................... 19mm (0.75")

FINEST MEASUREMENT ..................... 0.002mm (0.0001")

TANGENT SLIDE:

MAXIMUM MOVEMENT ....................... 32mm (1.25")

COORDINATE SLIDES:

MAXIMUM MOVEMENT ....................... 38mm (1.5")

FINEST MEASUREMENT ..................... 0.002mm (0.0001")

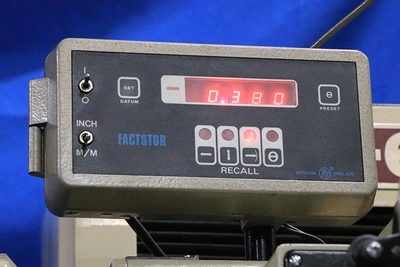

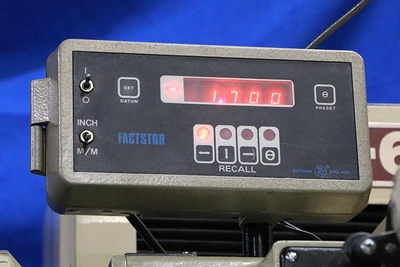

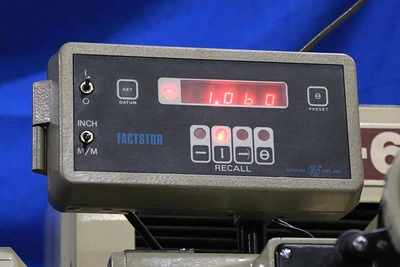

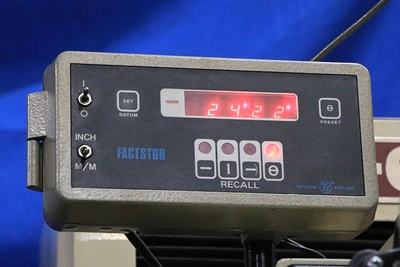

FACTSTOR DIGITAL READOUT:

DIGITAL READOUT OF ALL AXIS

  RESOLUTION ........................... 0.002mm (0.0001")

GRINDING WHEEL, MAXIMUM DIAMETER ....... 12"

** EXCEPTIONAL CONDITION & APPEARANCE - REFURBISHED

   BY "PRECISION INT'L", THE USA REP. FOR OPTI-DRESS" **

** F.O.B. HARRISON, N.J. **

FOR MORE INFORMATION: Call Andy at 973-497-7600
