USED 2011 Mazak NEXUS 4000 II

22.05" X Axis 24.8" Y Axis Mazak NEXUS 4000 II HORZ MACHINING CENTER, Mazatrol Matrix Nexus 4-Axis Control, 60 ATC, 40

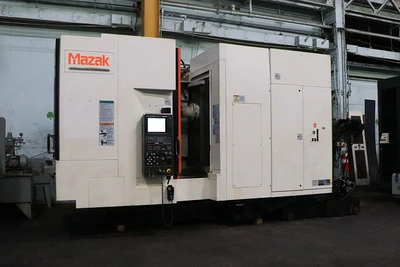

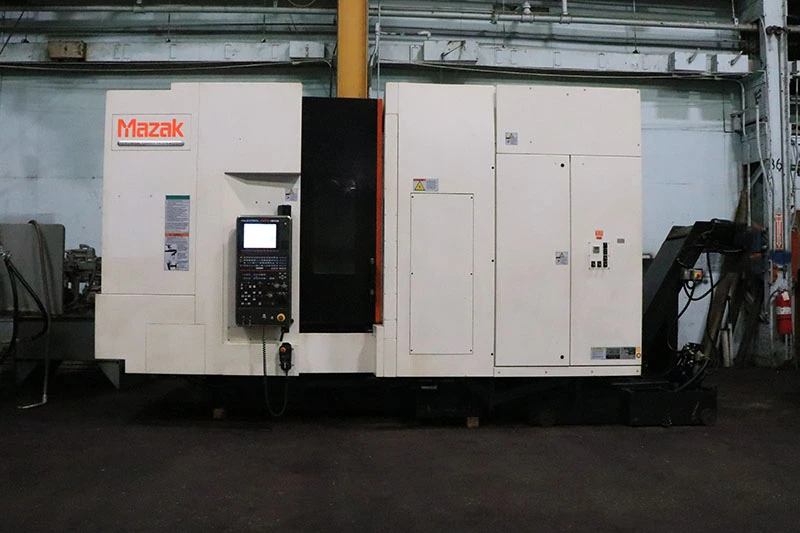

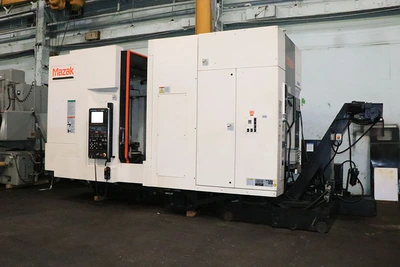

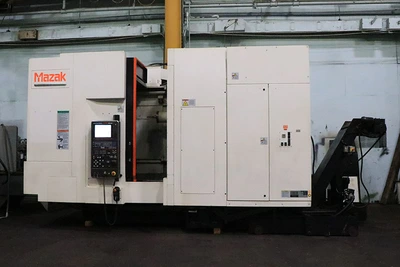

MAZAK 4-AXIS HORIZONTAL MACHINING CENTER

MODEL: NEXUS 4000 II, S/N: 230815, NEW: 2011

SPECIFICATIONS:

PALLET SIZE .......................... 15.7" X 15.7" (400MM)

PALLET LOAD CAPACITY ................. 882 LBS  / 400KG

MAXIMUM WORKPIECE DIMENSIONS ......... 24.8" x 35.43"

MACHINE TRAVELS:

  X-AXIS TRAVEL ...................... 22.05"

  Y-AXIS TRAVEL ...................... 24.8"

  Z-AXIS TRAVEL ...................... 25.2"

PALLET SURFACE TO SPINDLE CENTER ..... 2.76" - 27.96"

PALLET CENTER TO SPINDLE GAUGE PLANE . 3.15" - 27.95"

NUMBER OF PALLET STATIONS ............ 2

PALLET INDEXING (FULL FOURTH) ........ .001 DEGREE

SPINDLE TAPER ........................ CAT #40

SPINDLE SPEEDS ....................... 0 - 18,000 RPM

CUTTING FEEDRATE ..................... 0.04 - 2362 IPM

POWER RAPID TRAVERSE ................. 2362 IPM

TOOLCHANGER CAPACITY ................. 40 STATIONS

SPINDLE DRIVE ........................ 40/33.5 HP

APPROXIMATE WEIGHT ................... 21,000 LBS

APPROXIMATE FLOOR SPACE .............. 85" W x 209"L

                                            110"H

EQUIPPED WITH:

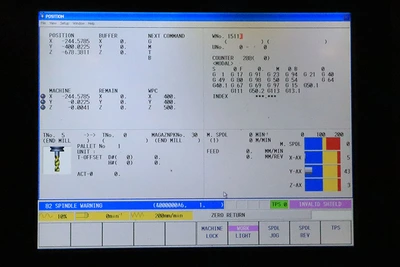

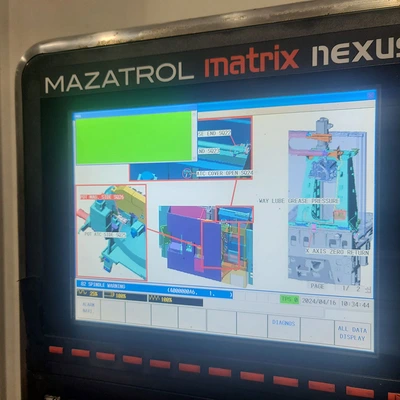

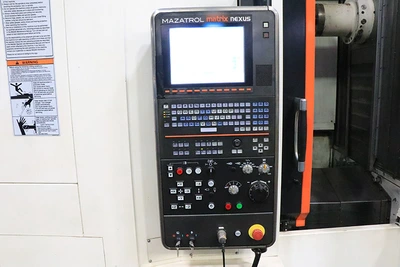

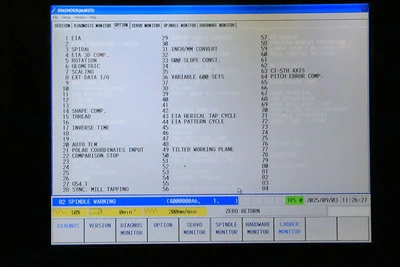

- MAZATROL MATRIX NEXUS CONTROL (FULL FOURTH)

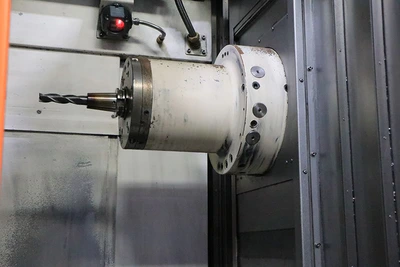

- 40/33.5 HORSE POWER SPINDLE DRIVE, 18,000 RPM SPINDLE

- THRU-SPINDLE COOLANT, 1000 PSI

- SUPERFLOW V8M/1000 PSI UNIT

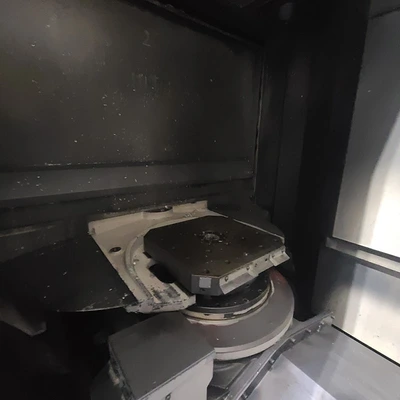

- 2 PALLETS

- PROGRAMMABLE PALLET

- 40 STATION AUTOMATIC TOOL CHANGER

- CHILLER

- CHIP CONVEYOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call Sales at 973-497-7510
