51" X Axis 35" Y Axis Milltronics HM-35 HORZ MACHINING CENTER, 7200 4-Axis Control, Rotary Tbl, 8,000 RPM. 24 HP.

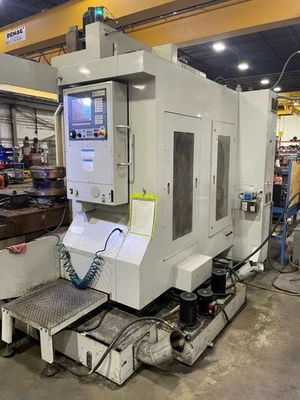

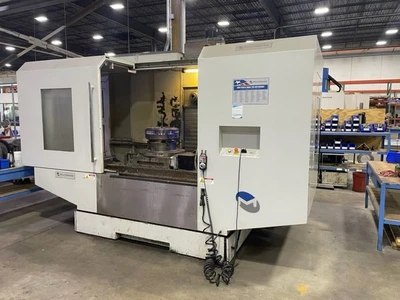

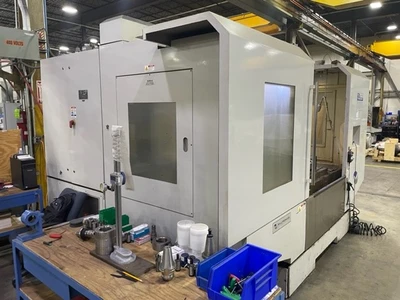

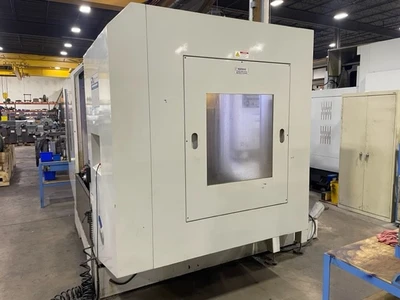

MILLTRONICS HORIZONTAL MACHINING CENTER

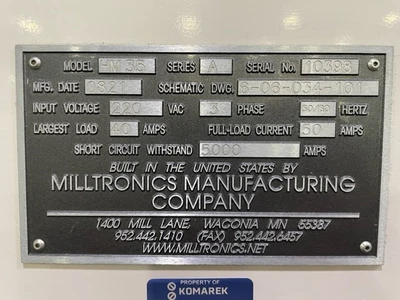

MODEL: HM35, S/N: 10398, NEW: 2008
SPECIFICATIONS:
X-AXIS TRAVEL ................... 51″
Y-AXIS TRAVEL ................... 35"
Z-AXIS TRAVEL ................... 25″
SPINDLE SPEED ................... 8,000 RPM
TABLE SIZE ...................... 59" x 26"
PLATTER DIAMETER ................ 30"
MAX WEIGHT ON TABLE & PLATTER ... 3,300 LBS
SPINDLE MOTOR ................... 24/15 HP
SPINDLE TAPER ................... CAT 40
TOOL POSITIONS (ATC) ............ 30
APPROXIMATE MACHINE WEIGHT ...... 24,500 LBS
EQUIPPED WITH:

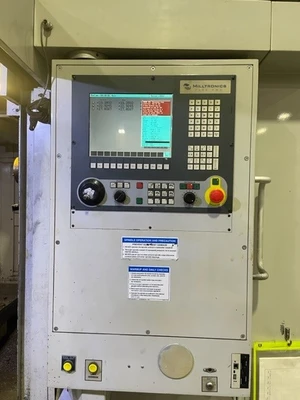

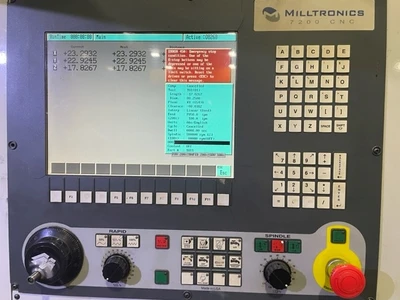

MILLTRONICS MODEL: 7200 CONTROL
REMOTE JOG HANDLE

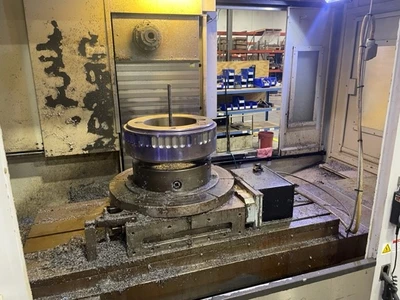

25" DIAMETER 4TH AXIS ROTARY TABLE
CHIP AUGER
COOLANT SYSTEM WITH MACHINE WASHDOWN
SIDE-MOUNT TOOL CHANGER (30 ATC)
24 / 15 HORSE POWER 2-SPEED SPINDLE MOTOR
INSPECT IN A MIDWEST WAREHOUSE
FOR MORE INFORMATION: Call Sales at 973-497-7510
