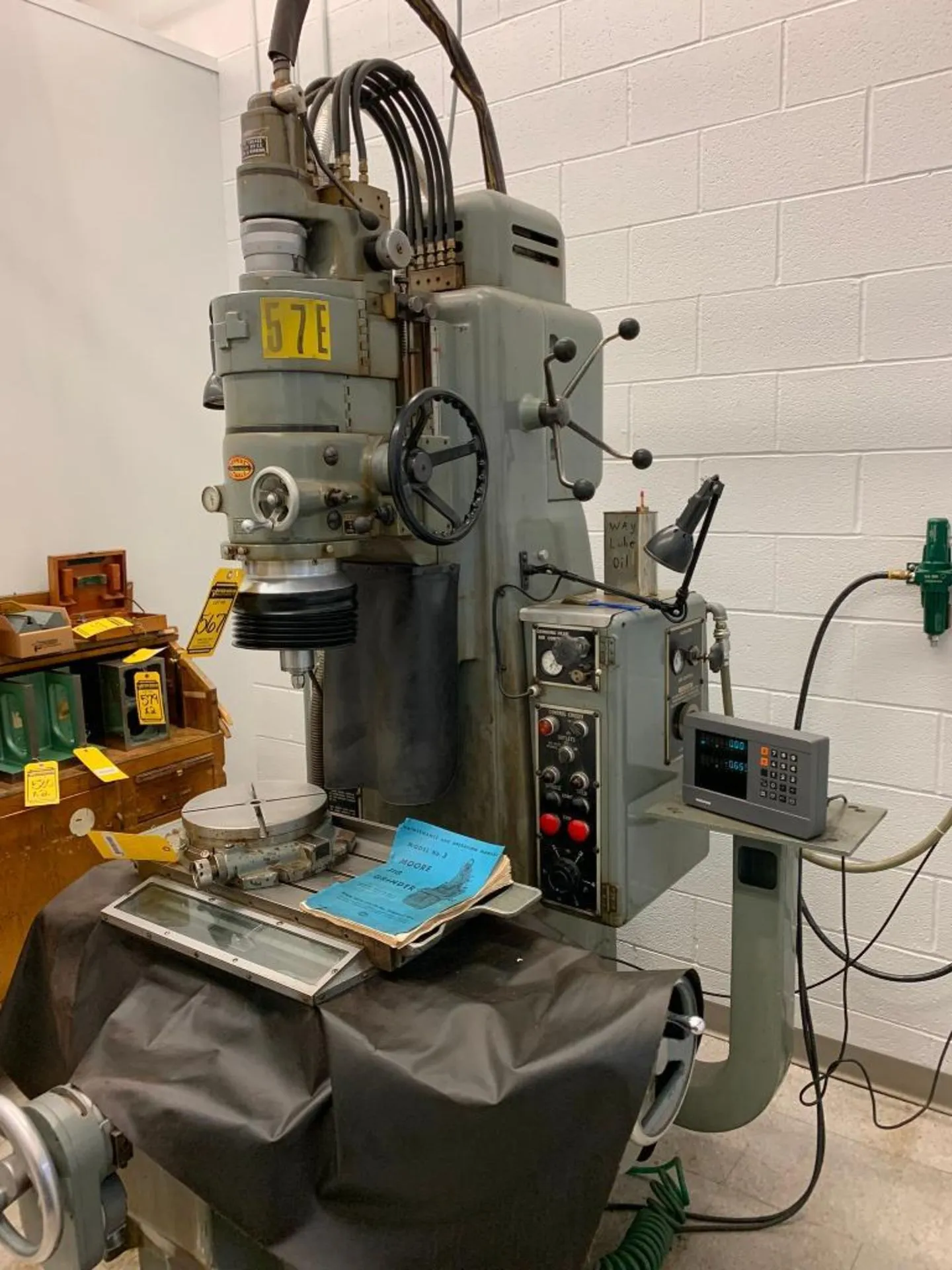

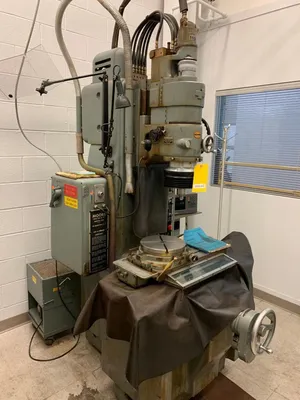

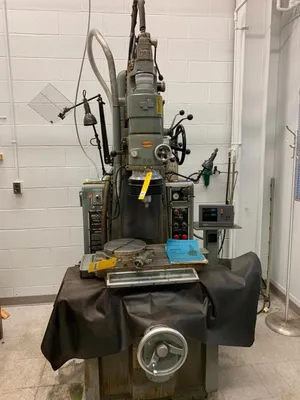

USED 1966 Moore #3. S/N: G-825, 2X DRO, (2) MOORE HEADS

11" Y Axis 24" X Axis Moore #3. S/N: G-825, 2X DRO, (2) MOORE HEADS JIG GRINDER

    #3 MOORE JIG GRINDER

  WITH HEIDENHAIN 2-AXIS DRO

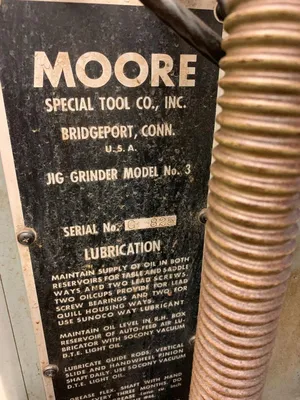

S/N: G-825

TABLE SIZE ........................... 11" x 24"

RANGE:

TABLE MOVEMENT ....................... 11" x 18"

TABLE TOP TO WHEEL COLLET ............ 2" x 18"

SPINDLE TO COLUMN WAYS ............... 10"

SPINDLE TO COLUMN BELOW WAYS ......... 13-1/2"

INFINITELY VARIABLE SPINDLE SPEEDS ... 40 TO 250 RPM

INFINITELY VARIABLE SPINDLE FEEDS .... 2 TO 120 SPM

GRINDING CAPACITY:

GRINDING WHEELS ...................... 3/16" TO 5"

DIAMOND MANDRELS ..................... 1/64" TO 3/16"

MAIN SPINDLE SLIDE ADJUSTMENT ........ 1-1/2° EITHER WAY,

                                       3° INCLUDED ANGLE

RADIAL OFF-SET OF GRINDING SPINDLE:

  (A) - FROM CENTER TO 1-1/8" OFF CENTER BY ROUGH ADJ.

  (B) - WHILE RUNNING .0001" ADJ. FOR DISTANCE OF .100"

         ANYWHERE IN THE 1-1/8" RANGE

APPROXIMATE WEIGHT ................... 3,700 LBS

APPROX. FLOOR SPACE REQUIRED ..... 72"LR x 84"FB x 102"H

EQUIPPED WITH:

HARDENED, GROUND AND LAPPED STEEL WAYS (NO GIBS)

HARDENED, GROUND & LAPPED LEAD SCREWS

1/2 HP VARIABLE DC MOTOR WITH RECTIFIER

MACHINE IS WIRED FOR 1PH/60Hz ELECTRICS

TOOLING & ACCESSORIES:

TWO  MOORE JIG GRINDING HEADS

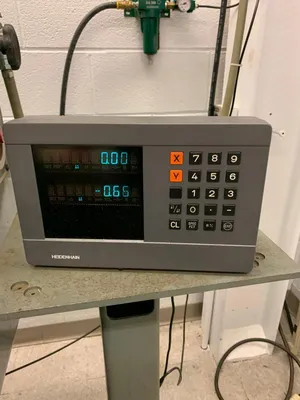

HEIDENHAIN 2-AXIS DIGITAL READOUT

WORK LIGHT

DUST COLLECTOR

** INSPECT UNDER POWER IN OUR WAREHOUSE **

** EXCELLENT CONDITION & APPEARANCE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
