USED 1981 Pexto 3617-B

Pexto 3617-B CRIMP & BEADING MACHINE

ROPER WHITNEY (PEXTO) Power Beading (Combination) Machine

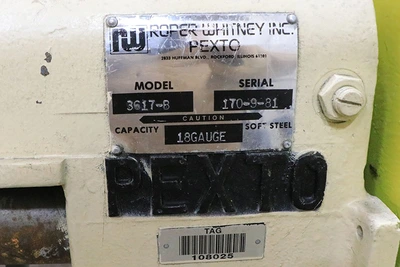

MODEL 3617-B         S/N 170-9-81        NEW 1981

Capacity, up to - 18 gauge

Throat depth - 13"

Distance between centers - 3"

Roll speed - 40 R.P.M.

Ratio gearing - 3-1/2:1

Equipped with:

- Tooling (as shown)

- Capability of being used with the following type of rolls: turning, burring, wiring, elbow edging, flange, flattening, crimping, ogee bead, single bead, slitting cutter, furnace collar edging, and offset

- Floor stand with adjustable motor mount

- Remote electric foot pedal for directional control of rolls

- 3/4 H.P. 3/60/230 volt "V" belt driven geared motor drive and electrical controls

- On wheels for easy movement throughout the shop

Approximate Weight:  320 Lbs.

FOR MORE INFORMATION: Call Rick at 973-497-7560
