USED 1989 Hansvedt DS-2, NEW 1989, COMPLETE AND RUNNING PROPERLY

10.5" Y Axis 6.5" X Axis Hansvedt DS-2, NEW 1989, COMPLETE AND RUNNING PROPERLY WIRE-TYPE EDM, 6"Z,

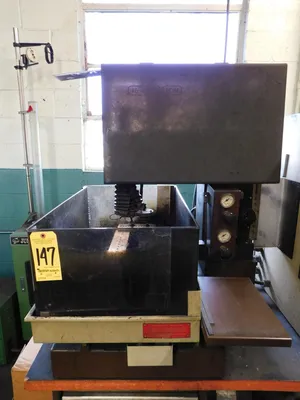

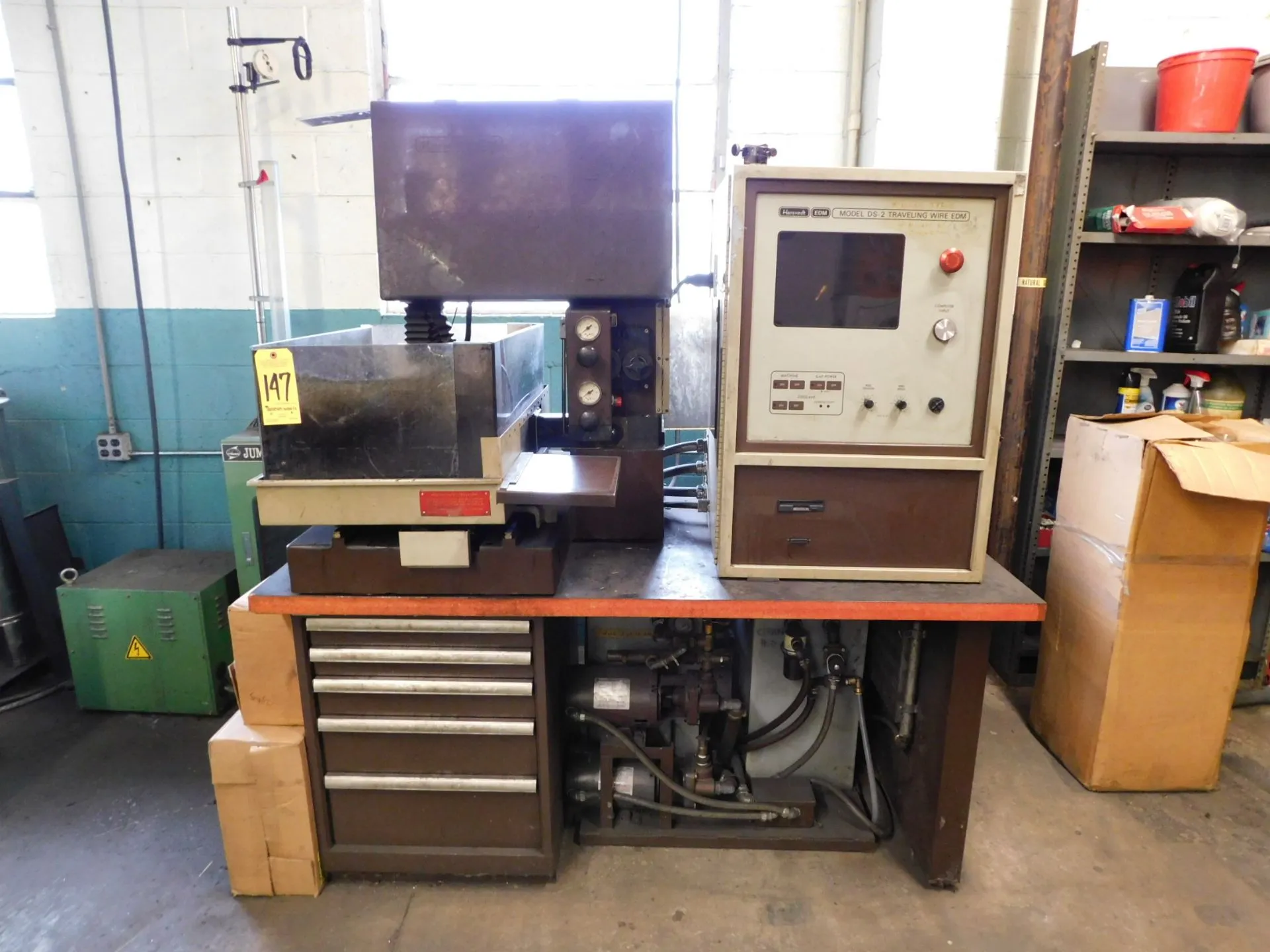

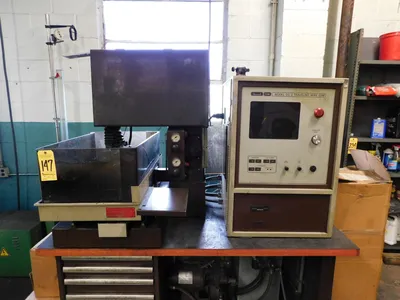

  Hansvedt/Hardinge Model #DS-2 CNC Wire EDM

S/N: AJ09121         New:  1989

Specifications:

Max. Workpiece Dimension       18" x 27"

Travels:

X:                             6.5"

Y:                             10.5"

Z:                             6" Max Thickness

Positioning Accuracy           +/- .0002"

Max. Workpiece Weight          300 Lbs.

Wire Diameter Range            0.004" to .012"

Power Supply:                  20 Amps

Max. Cutting Speed             14 In./Hour

NC Unit:                       Hansvedt w/RS-232 Port

Maximum Input:                 208/240 VAC, 3 PH, 60 HZ

Equipped With:

Precision Linear Guideways for X & Y Axes

Turcite Lined Z Axis Guideway

M-Pulse CNC Power Supply w/Flexible, User-Friendly Softtware,

XY Simultaneous Controlled Axes

CRT Display

3.5 Floppy Disk Drive & RS-232 Port

** SUPERB CONDITION & APPEARANCE **

** F.O.B. OUR HARRISON, NJ WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
