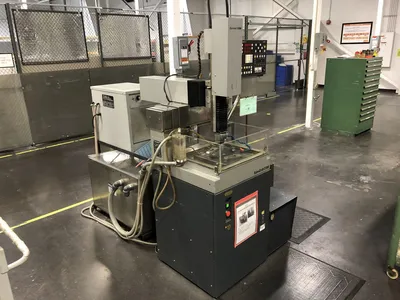

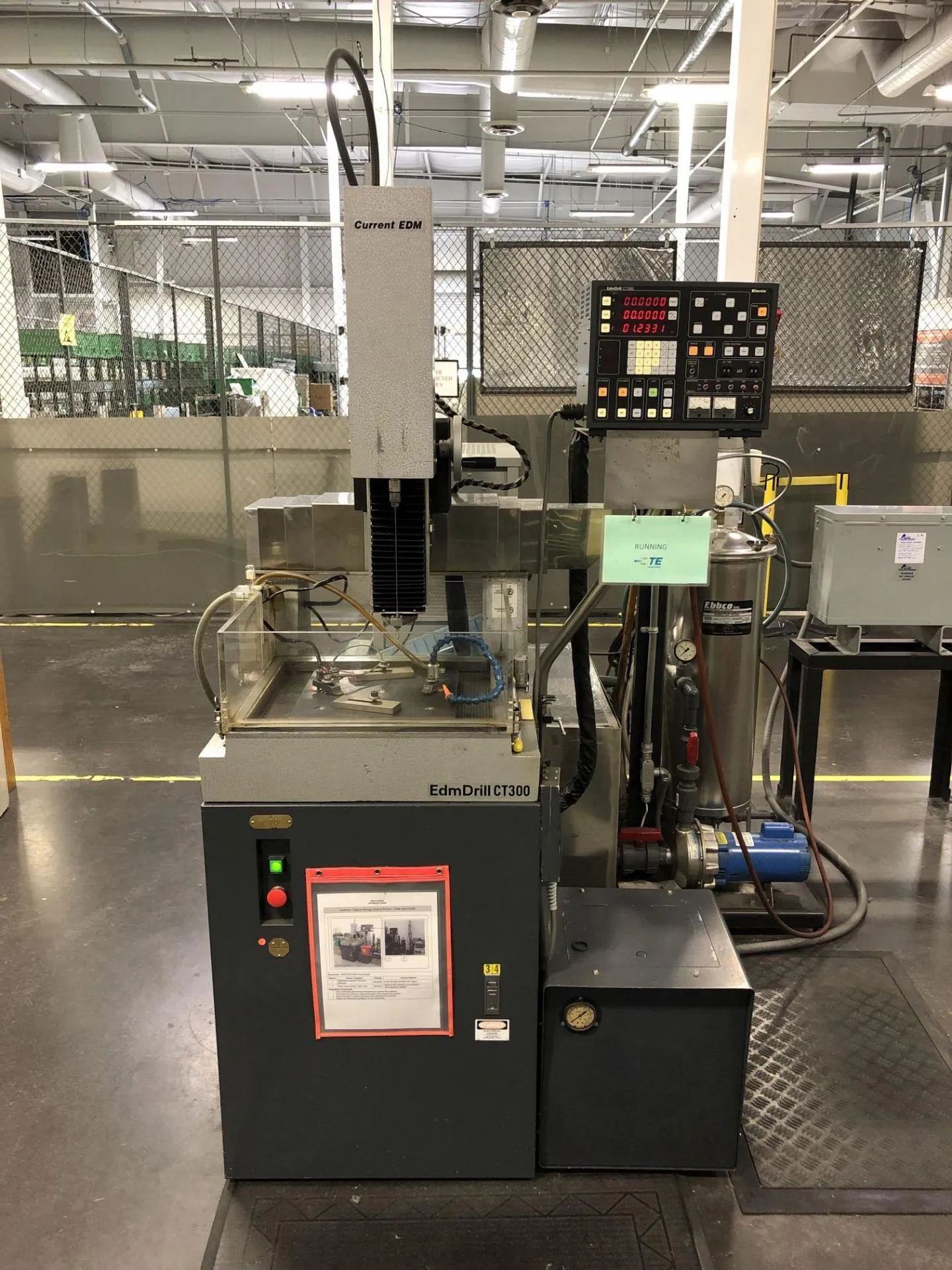

USED 1998 Current EDM CT300, CNC, 1998, MADE IN JAPAN,

57 AMPS Current EDM CT300, CNC, 1998, MADE IN JAPAN, EDM HOLE DRILLER, HIGH-PRECISION,

    CURRENT (Made in Japan)

"High Accuracy" CNC EDM Hole Driller

Model: CT300       S/N: 84120      Year: 1998

X-axis travel 300 mm (12")

Y-axis travel 200 mm (8")

Z-axis travel 300 mm (12")

Guide axis travel (G-axis) 250 mm (10")

Throat distance (min) 10 mm (0.4")

Throat distance (max) 210 mm (8.3")

Work table size 300 mm x 300 mm (12" x 12")

Max workpiece weight 310 kg (682 lbs)

Feedback X/Y axis rotary encoders

Feedback Z axis encoder, direct shaft

Inch/metric display

RS232 machine input

200/230 volt three phase, 60 HZ, 3 KVA

Machine weight: (2,000 Lbs.)

Machine Features:

Single-cast, bridge construction with

 stainless steel head and precision ball screws

 provide years of reliable, accurate machining.

Predictable and consistent results using

 economical water dielectric fluid.

57 peak amp power supply effectively

 operates with electrode diameters

 from .004" to .256".   User friendly

 control programs 5-axis, giving you 9

 coordinate systems, canned cycle routines

 and electrode wear compensation cycles

 for blind hole applications.

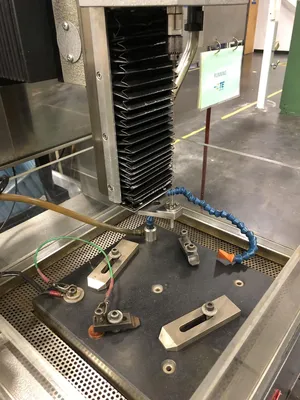

Granite Table with Tapped Insert Holes

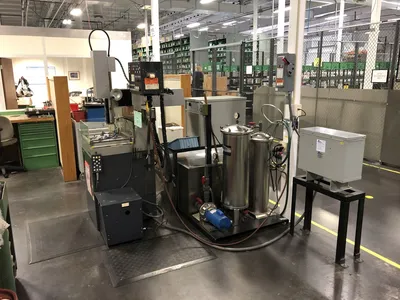

Equipped With:

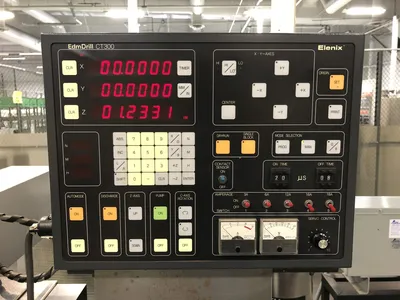

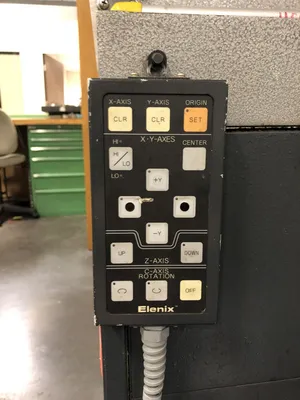

Current EDM CNC Control

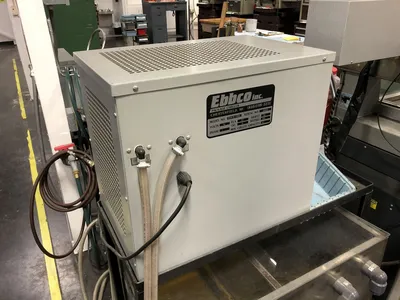

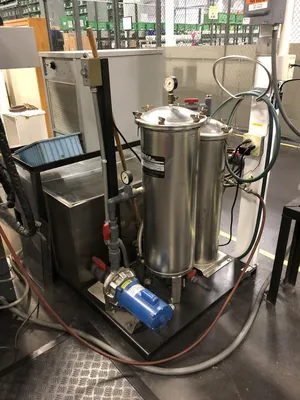

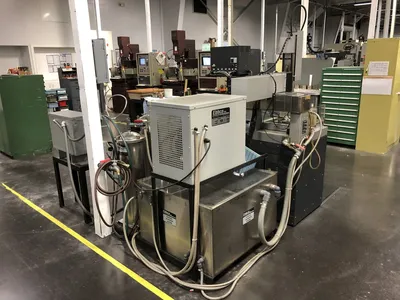

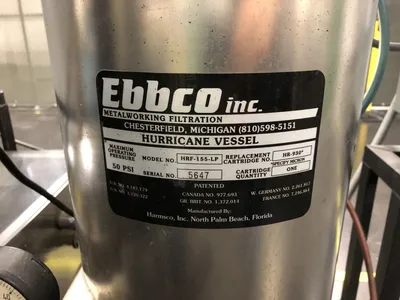

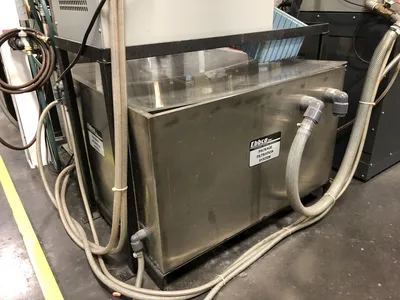

"Ebbco" filtration system, sits behind the machine

Transformer to Allow use for 460 Volts

** Superb Condition & Appearance **

** From Fortune 500 Company - Just Beautiful **

** Inspect in our Harrison, NJ Warehouse **

** Link to Video: https://youtu.be/9BwQlK79D0E **

FOR MORE INFORMATION: Call Andy at 973-497-7600
