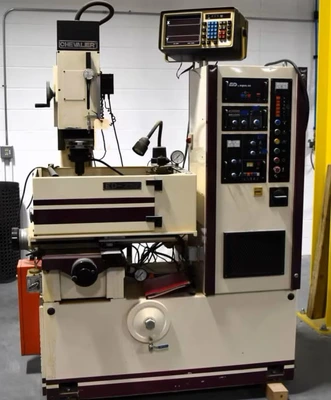

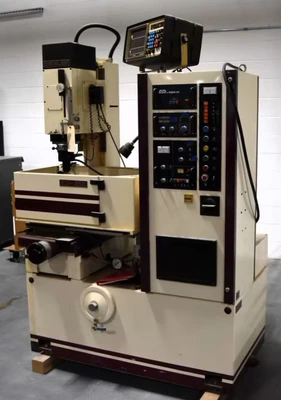

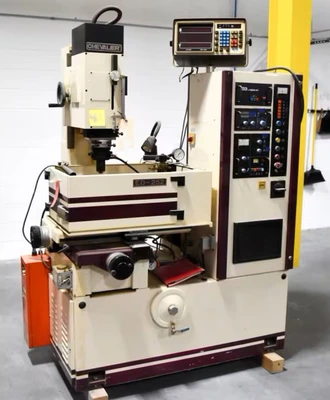

USED 1992 Chevalier ED-252, 1992, DRO, 148 HOURS USE!!

7.9" Y Axis 11.8" X Axis Chevalier ED-252, 1992, DRO, 148 HOURS USE!! RAM-TYPE EDM, 5.9" QUILL TRAVEL

   CHEVALIER/SURE FIRST MADE IN TAIWAN

     RAM TYPE CONVENTIONAL EDM

    WITH DIGITAL READOUT DISPLAY

**** ONLY 148 HOURS!!, HOLY COW!! ****

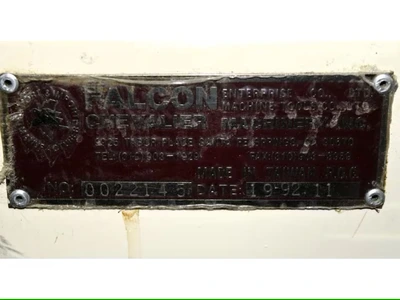

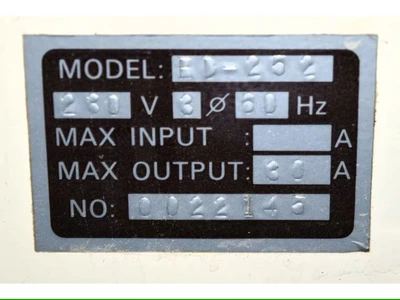

MODEL: ED252        S/N: 0022145       NEW: 1992

TABLE DIMENSIONS ............. 23.6" X 11.8"

X-TRAVEL ..................... 11.8"

Y-TRAVEL ..................... 7.9"

QUILL STROKE ................. 5.9"

WORK TANK DIMENSIONS ......... 30.3" X 20" X 10.6"

OIL CAPACITY ................. 87 GALLONS

MACHINE HEAD STROKE .......... 7.9"

MAXIMUM ELECTRODE LOAD ....... 132 LBS.

MAXIMUM TABLE LOAD ........... 1,100 LBS.

APPROX. DIMENSIONS ........... 56"L-R x 47"D x 80"H

APPROX. WEIGHT ............... 2,500 LBS.

  EQUIPPED WITH:

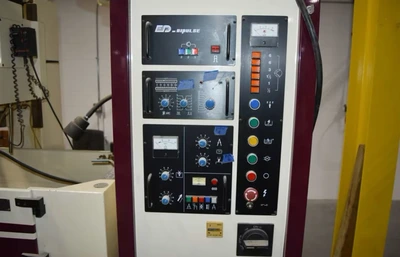

  CHEVALIER/SURE FIRST 30 AMP POWER SUPPLY

  SERVO MOTOR DOWNFEED

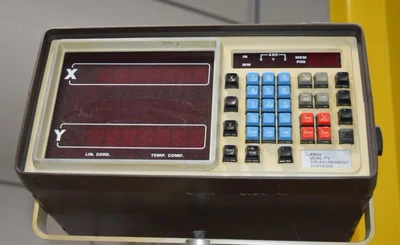

  "QUALITY MEASUREMENTS SYSTEMS" 2-AXIS DRO

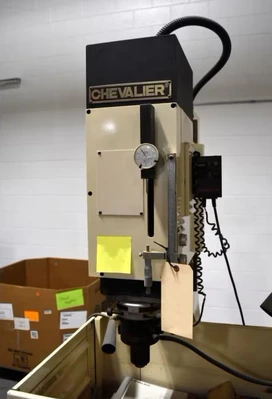

  DIAL INDICATOR FOR RAM TRAVEL

  "SYSTEM 3R" TOOLING SET-UP AND MAGNETIC CONTROL BOX

  "X" & "Y" LEADSCREWS HAVE ADJUSTABLE COMPENSATION

    SCREWS FOR BACKLASH

  "SCHNEEBERGER" ROLLER BEARING SYSTEM ON ELEVATING GUIDEWAYS

  AUTOMATIC FIRE EXTINGUISHER

  MACHINE IS PRESENTLY WIRED FOR 3/60/230 VOLTS/4 KVA

  MACHINE CAN BE WIRED FOR OTHER VOLTAGES

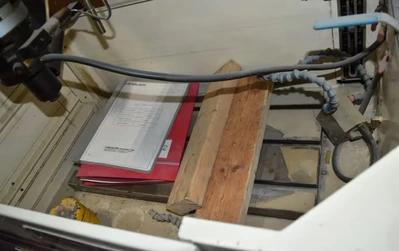

  MACHINE COMES WITH A MANUAL & ELECTRICAL DRAWINGS

** VERY LOW USEAGE - BEAUTIFUL MACHINE  **

 **** ONLY 148 HOURS!!, HOLY COW!! ****

** F.O.B. OUR HARRISON, NJ WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
