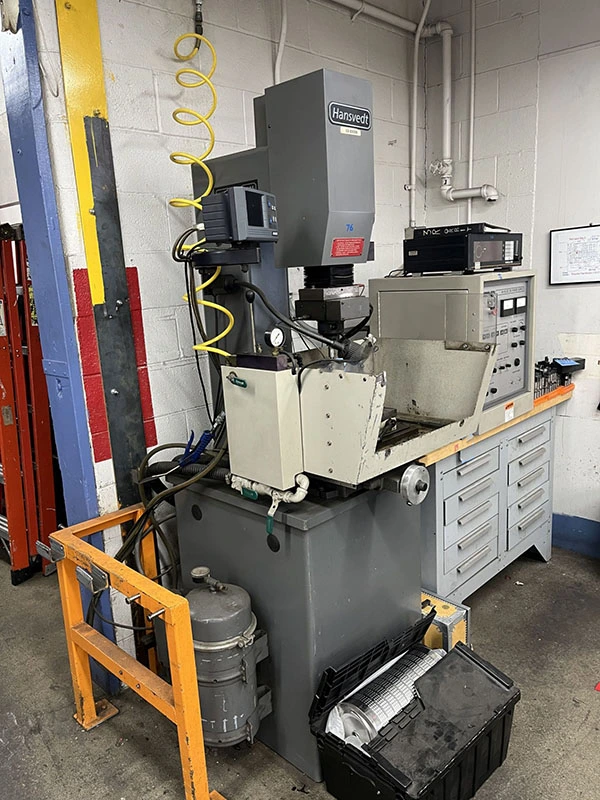

USED 1996 Hansvedt CS-1, 1996, WITH SYSTEM 3R ORBICUT CNC
Overview
Description

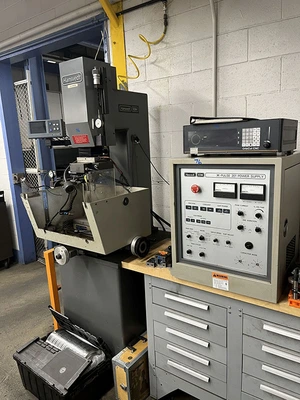

6" Y Axis 8" X Axis Hansvedt CS-1, 1996, WITH SYSTEM 3R ORBICUT CNC RAM-TYPE EDM, H201 POWER SUPPLY, 9" X 15" TABLE,
Specifications

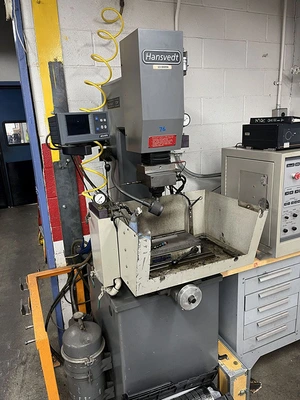

HANSVEDT "CONVENTIONAL" RAM TYPE EDM
WITH SYSTEM 3R "ORBICUT CNC" ORBITOR ACCESSORY
MODEL: CS-1 WORKMAN S/N: AP16936 NEW: 1996
WORK TABLE SIZE ............ 9" x 15"
TABLE TRAVEL ............... 6" x 8"
WORTANK SIZE ............... 16" x 24" x 11"H
PLATEN TO TABLE ............ 18" MAX.
RAM TRAVEL ................. 8"
PLATEN SIZE ................ 5.75" x 4"
MAX. ELECTRODE WEIGHT ...... 75 LBS.
MAX. WORKPIECE WEIGHT ...... 200 LBS.
WORKTANK CAPACITY .......... 18 GALS.
RESEVOIR CAPACITY .......... 45 GALS.
APPROX. WEIGHT ............. 1,400 LBS.
APPROX. DIMS. .............. 64" x 38" x 82"H
MACHINE FEATURES:

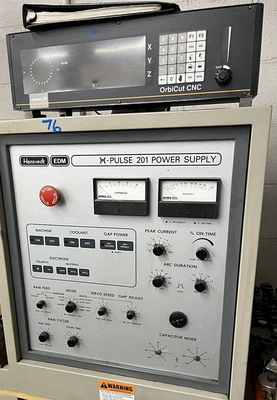

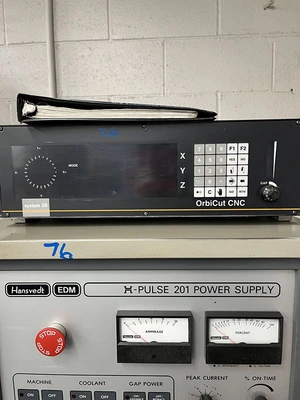

HANSVEDT "H-PULSE" 201E 20 AMP POWER SUPPLY
ON SEPERATE ROLL AROUND STAND
-SIMPLE, UNDERSTANDABLE SPARK& SERVO CONTROLS
-"SERVO CONTROLS" FEATURING DITHER, MANUAL, EDGE FINDER,
AUTO RETRACT, AUTO LOCK, ORBIT STOP, ORBIT LOCK,
SERVO SPEED& GAP ADJUST
-"EDM CONTROLS" LOW PEAK CURRENT, ARC DURATION
(.5 TO 1843 MICROSECONDS), PEAK CURRENT, POLARITY,
ELECTRODE MATERIALS & % ON-TIME SELECTIONS
FOR ULTRA-FINE FINISHING
DC SERVO & BALLSCREW DRIVE FOR RAM
RAM CYCLER PROVIDES UP/DOWN MOVEMENT TO PROMOTE BLIND
CAVITY FLUSH
"GAP MONITOR" AUTOMATIC DC ARC PROTECTION SYSTEM

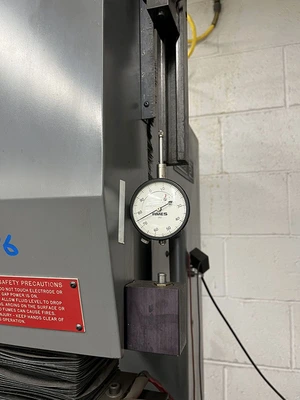

MICROMETER DOWN STOP W/AUTOMATIC RETRACTION
EQUIPPED WITH:

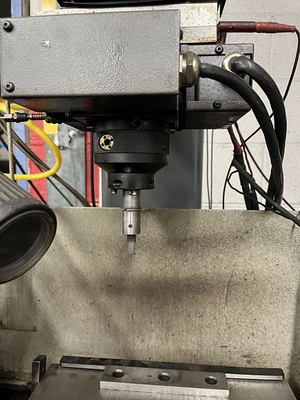

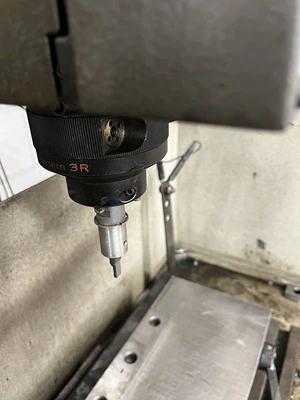

SYSTEM 3R "ORBICUT CNC" ORBITOR ACCESSORY

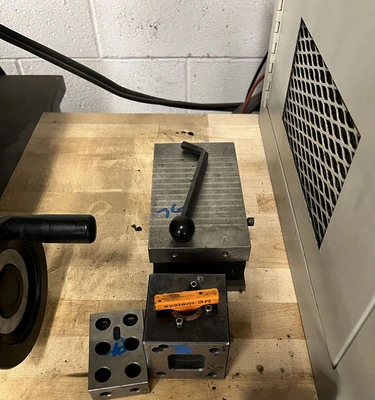

LARGE AMOUNT OF ACCESSORIES
CABINET WITH WOOD TOP
ALL CONTENTS IN CABINET

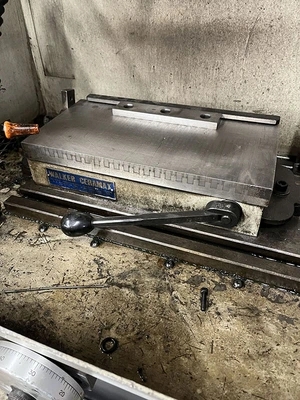

PERMANENT MAGNETIC CHUCK

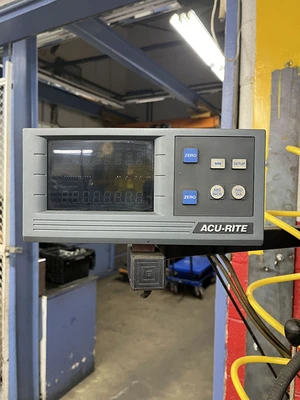

"ACU-RITE" 2-AXIS DIGITAL READOUT DISPLAY
"ACU-RITE" SCALES WITH .0001" RESOLUTION
SINGLE PHASE/60 CYCLE/117 VOLT ELECTRICS
** F.O.B. OUR HARRISON, N.J. WAREHOUSE **
** EXCELLENT CONDITION & APPEARANCE **
FOR MORE INFORMATION: Call Andy at 973-497-7600
