USED Pressmaster GSP-150T-4/8

150 Ton 16" Stroke Pressmaster GSP-150T-4/8 STRAIGHTEN PRESS, Gantry Style for Flat Plate or Bar

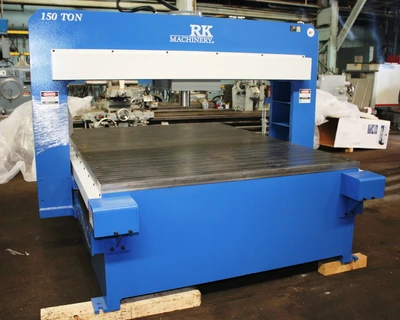

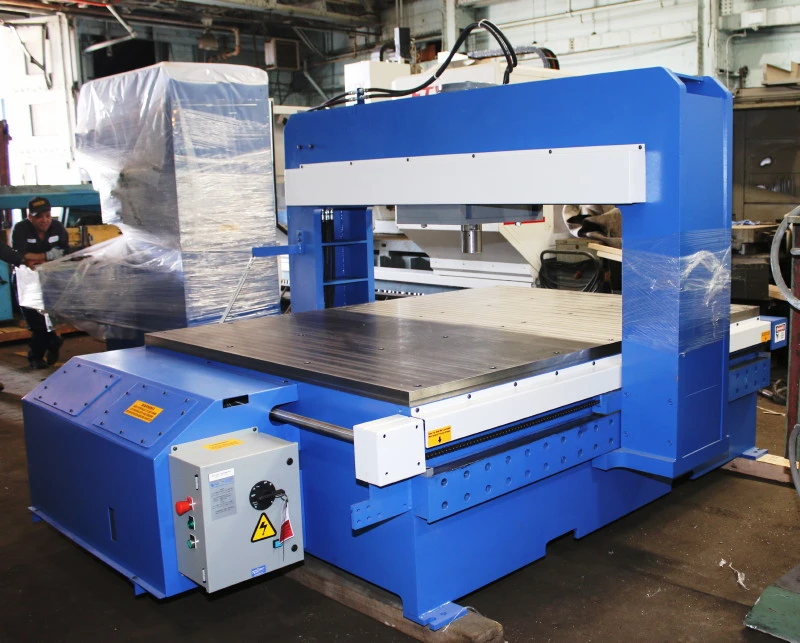

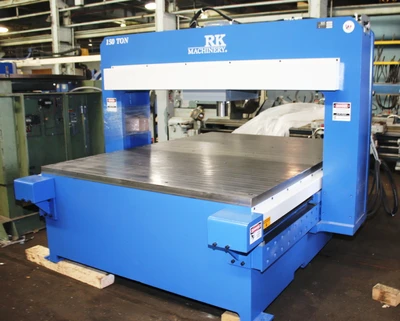

150 TON PRESSMASTER GANTRY STYLE

HYDRAULIC STRAIGHTENING PRESS

MODEL GSP-150T-4/8

RATED CAPACITY, TONNAGE .................... 150

STROKE ..................................... 16"

BORE ....................................... 11"

RAM SPEED PRESS ............................ 6 IPM

          ADVANCE .......................... 24 IPM

          RETURN ........................... 28 IPM

TABLE SIZE (RIGHT TO LEFT) ................. 48"

TABLE SIZE (FRONT TO BACK).................. 96"

DISTANCE BETWEEN POST (L-R)................. 54"

DAYLIGHT ................................... 15.5"

RAM TRAVEL (LEFT TO RIGHT) ................. 32.5"

MOTOR SPECS ....(230/460/575 AVAILABLE) .... 5 HP / 3 PH

WEIGHT ....................... 12,000 LBS.

SHIPPING DIMENSIONS .......... 102"L X 87"W X 93"H

STANDARD FEATURES:

- POWERED MOVAEABLE WORKHEAD - FOR OFF CENTER WORK ALLOWS OPERATOR TO POSITION THE CYLINDER FROM LEFT TO RIGHT AND FRONT TO BACK WITH THE TOUCH OF A LEVER.

- CYLINDER ACTIVATION - IS FINGERTIP CONTROLLED, THE MORE THE HAND LEVER IS ENGAGED THE MORE THE RAM MOVEMENT IS ACCELERATED. THIS ALLOWS THE OPERATOR TO CONTROL THE PROPER SPEED FOR THE TASK.

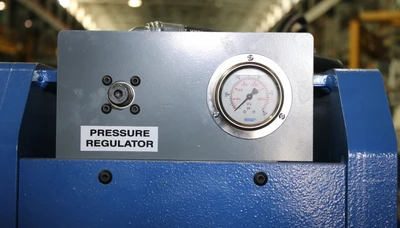

- PRESSURE REGULATOR - LIMITS RAM PRESSURE.

- FLAT RAM NOSE - CAN BE EASILY CHANGED TO ALLOW THE USER TO ADAPT THE PRESS TO A SPECIFIC JOB.

- LOW PRESSURE - HYDRAULIC SYSTEM MAINTAINS LOWER OIL TEMPERATURES, RESULTING IN HIGHER EFFICIENCY AND SAFER OPERATION.

- ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD IN THE INDUSTRY, AND AVAILABLE THROUGHOUT NORTH AMERICA.

- OPTIONAL MOVEABLE PEDESTAL C/W HEIGHT ADJUSTMENT FOR EASE AND COMFORT OF OPERATOR

- FULL ONE YEAR WARRANTY.

- NOT A CHEAP IMPORT. MANUFACTURED IN CANADA WITH QUALITY US & CANADIAN COMPONENTS.

OPTIONS:

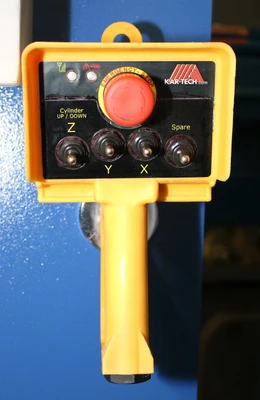

HAND HELD REMOTE ....................... $9,500

CHECK OUT THIS AMAZING PRODUCT BY CLICKING ON THE BELOW YOUTUBE LINK!!!

https://www.youtube.com/watch?v=XL1Tys3dJsk

FOR MORE INFORMATION: Call Rick at 973-497-7560
