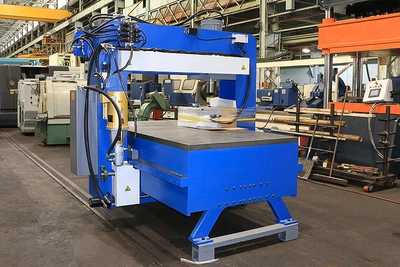

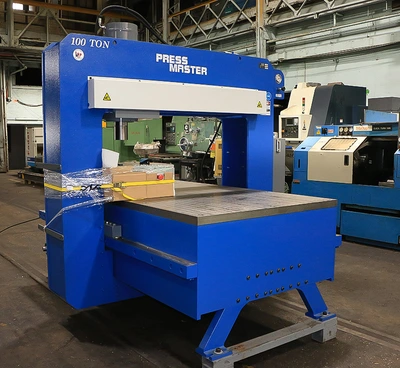

NEW Pressmaster GSP-100T-4/8

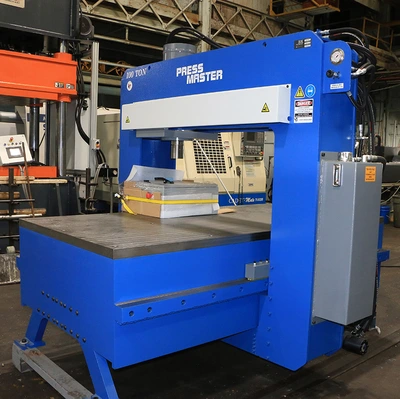

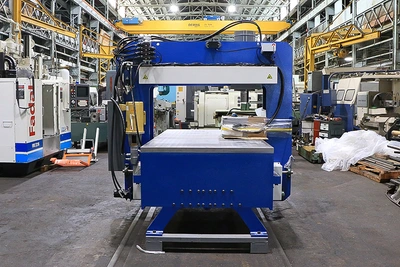

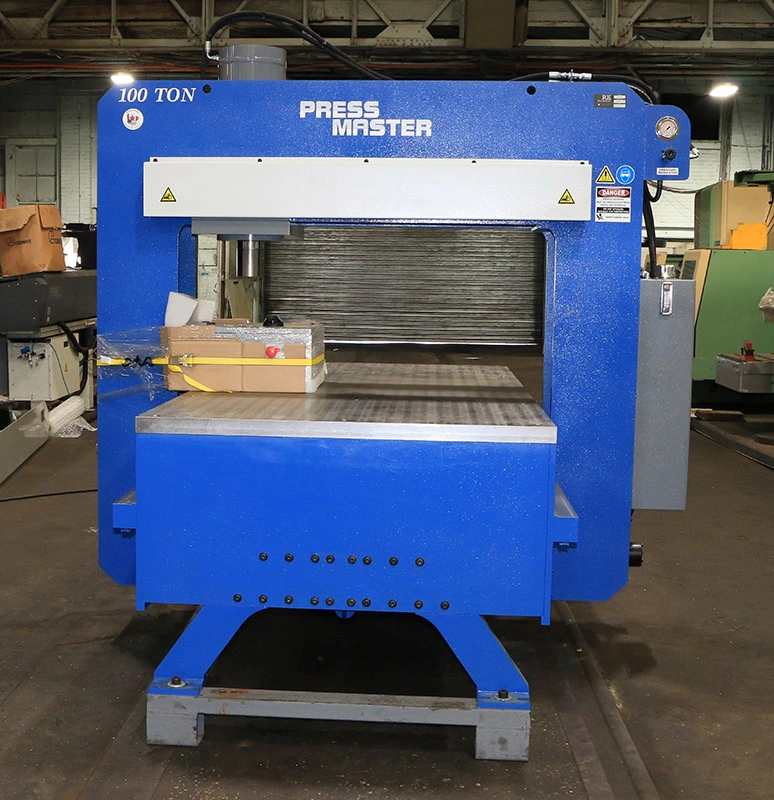

 100 TON PRESSMASTER H-FRAME HYD. PRESS

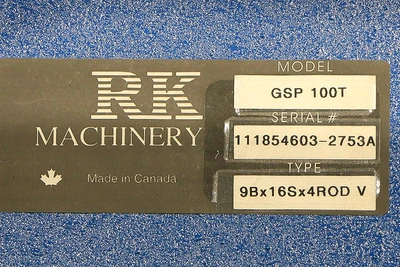

MODEL GSP-100T-4/8

RATED CAPACITY, TONNAGE ...................... 100

STROKE ....................................... 16"

BORE ......................................... 9"

RAM SPEED ADVANCE ............................ 24 IPM

          PRESSING ...........................  6 IPM

          RETURN ............................. 31 IPM

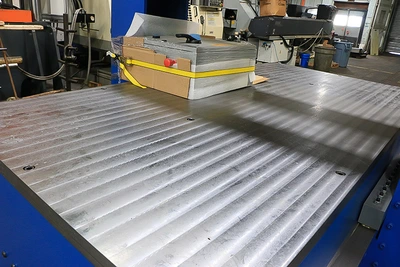

TABLE SIZE (RIGHT TO LEFT) ................... 48"

TABLE SIZE (FRONT TO BACK) ................... 96"

DAYLIGHT ..................................... 16.5"

RAM TRAVEL (LEFT TO RIGHT) ................... 35"

MOTOR SPECS ..(230/460/575 AVAILABLE) .... 5 HP / 3 PH

WEIGHT ........................ 12,000 LBS.

SHIPPING DIMENSIONS ........... 88"L X 132"W X 80"H

STANDARD FEATURES:

- JUST REBUILT CYLINDERS

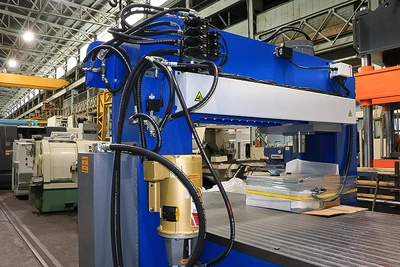

- POWERED MOVABLE WORKHEAD - FOR OFF CENTER WORK ALLOWS OPERATOR TO POSITION THE CYLINDER FROM LEFT TO RIGHT AND FRONT TO BACK WITH THE TOUCH OF A LEVER.

- CYLINDER ACTIVATION - IS FINGERTIP CONTROLLED, THE MORE THE HAND LEVER IS ENGAGED THE MORE THE RAM MOVEMENT IS ACCELERATED. THIS ALLOWS THE OPERATOR TO CONTROL THE PROPER SPEED FOR THE TASK.

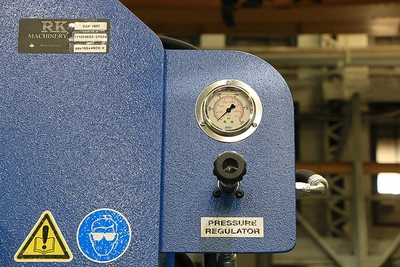

- PRESSURE REGULATOR - LIMITS RAM PRESSURE.

- FLAT RAM NOSE - CAN BE EASILY CHANGED TO ALLOW THE USER TO ADAPT THE PRESS TO A SPECIFIC JOB.

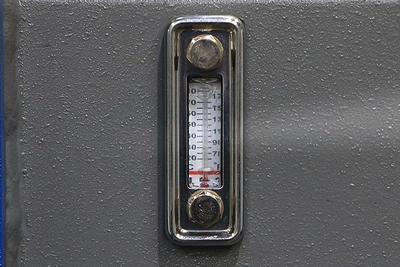

- LOW PRESSURE - HYDRAULIC SYSTEM MAINTAINS LOWER OIL TEMPERATURES, RESULTING IN HIGHER EFFICIENCY AND SAFER OPERATION.

- ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD IN THE INDUSTRY, AND AVAILABLE THROUGHOUT NORTH AMERICA.

- FULL ONE YEAR WARRANTY ON ALL PARTS.

- NOT A CHEAP IMPORT. MANUFACTURED IN CANADA WITH QUALITY US & CANADIAN COMPONENTS.

OPTIONS:

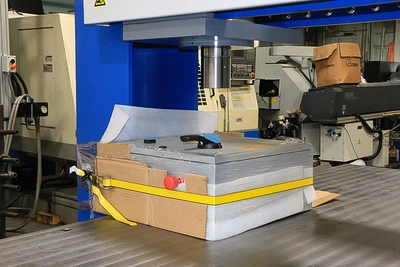

HAND HELD REMOTE .................... $9,500

GSP-100 2/8 ..................... $84,950

FOR MORE INFORMATION: Call Rick at 973-497-7560
