USED 1999 Press Room Eqpt PE-MB-10-1-2
Overview
Description

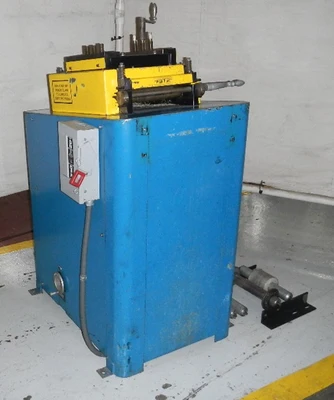

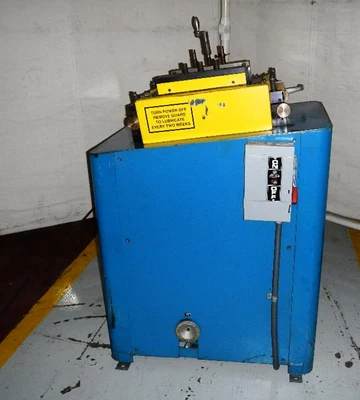

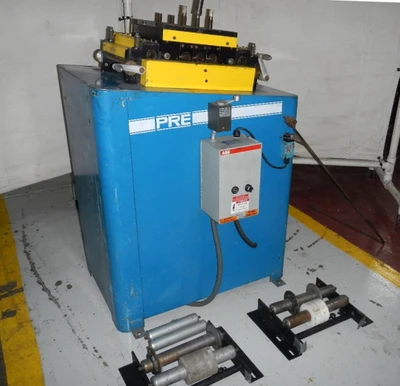

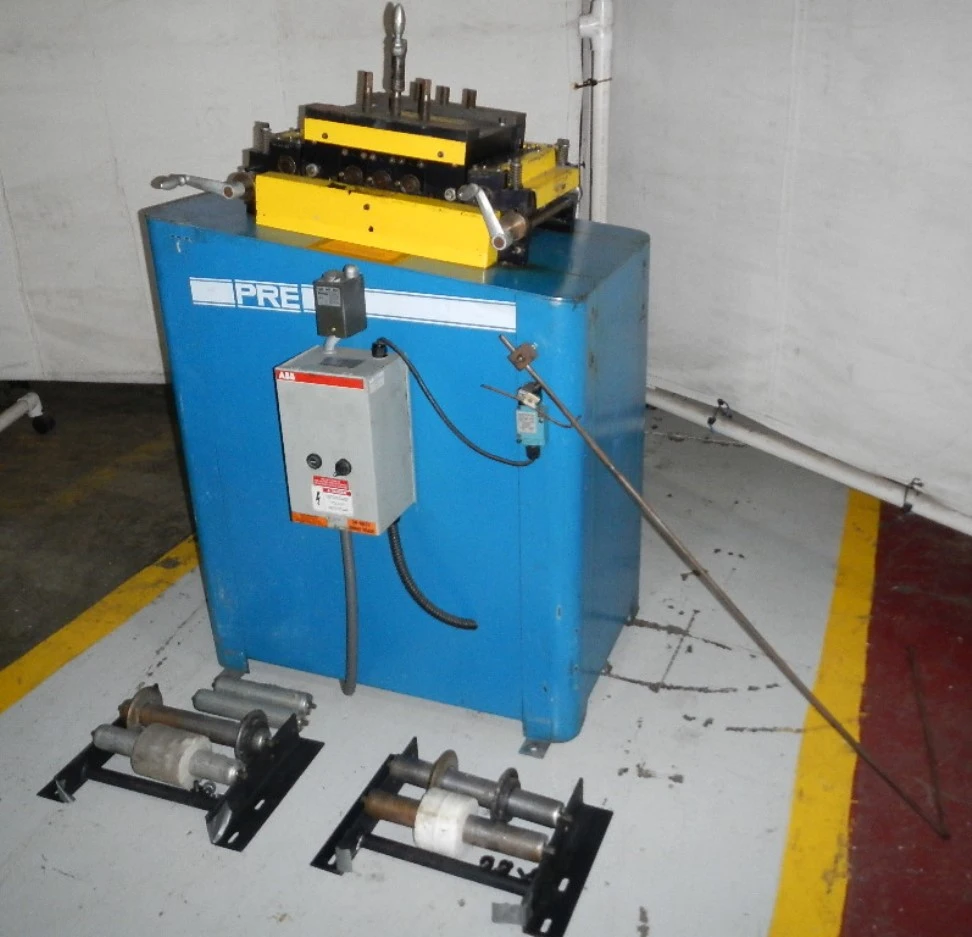

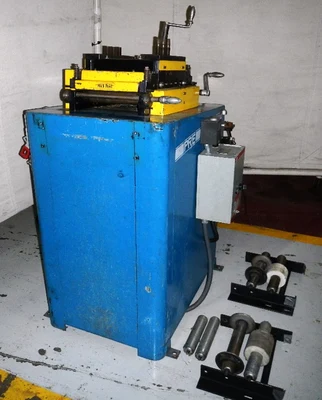

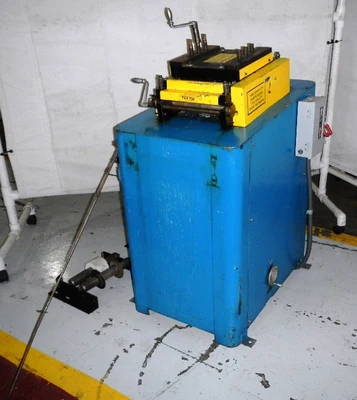

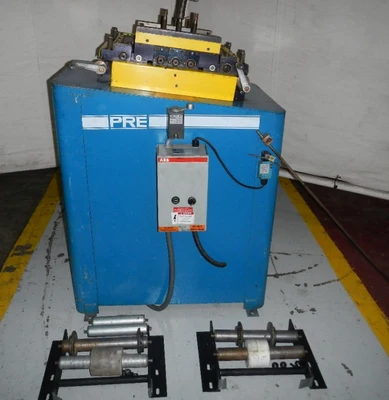

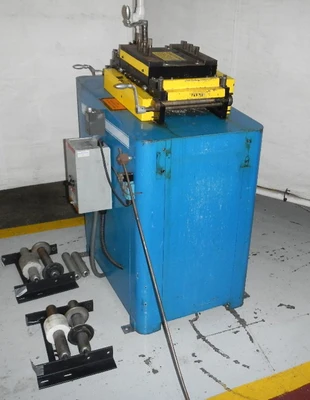

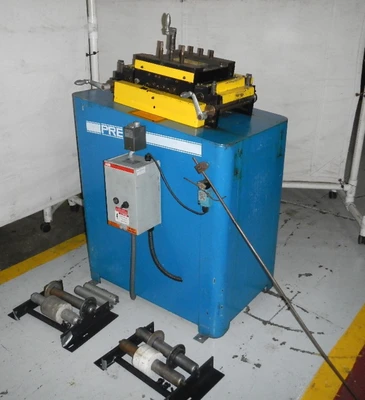

10" Width 0.139" Cap. Press Room Eqpt PE-MB-10-1-2 STRAIGHTENER
Specifications
10" x .139" PRESS ROOM EQUIPMENT STRAIGHTENER
MODEL PR-MD-10-I-2 S/N 1098-063 Year 1999
Capacity .......................... 10" x .139"
Minimum thickness ................. .020"
Number of straightening rolls ..... 7 (3 over 4)
Diameter of straightening rolls ... 2"
Speed (variable) .................. 22 - 66 FPM
Roll Spacing ...................... 2-1/4"
Pass line height .................. 43" Entry
Motor ............................. 2 HP
Dimensions 33" x 38" x 48" high
Weight 1,800 lbs.
Machine is equipped with:
- Variable line speed
- Loop control
- Canted head design
- Manual / auto - forward / reverse - stop / start modes
- Independently adjustable upper straightening rolls
- Hardened & ground rolls
*PRELIMINARY SPECIFICATIONS - SUBJECT TO VERIFICATION
** Located in our Harrison,NJ Warehosue **
FOR MORE INFORMATION: Call Rick at 973-497-7560
