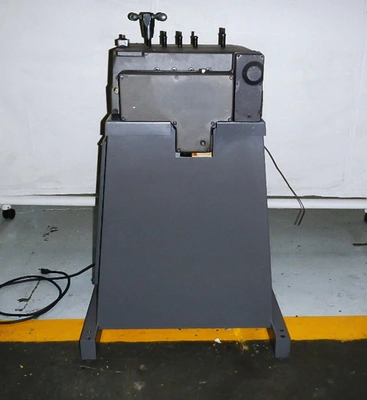

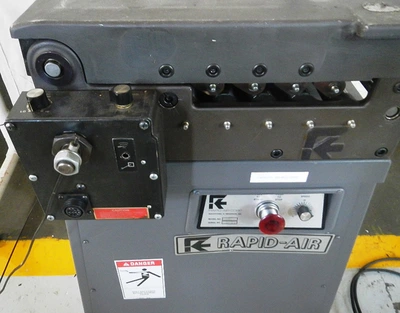

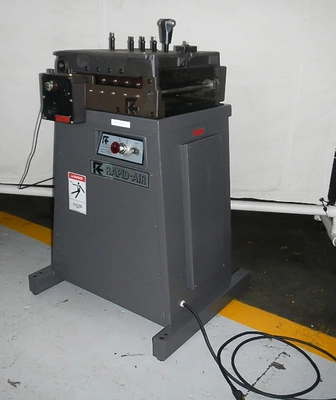

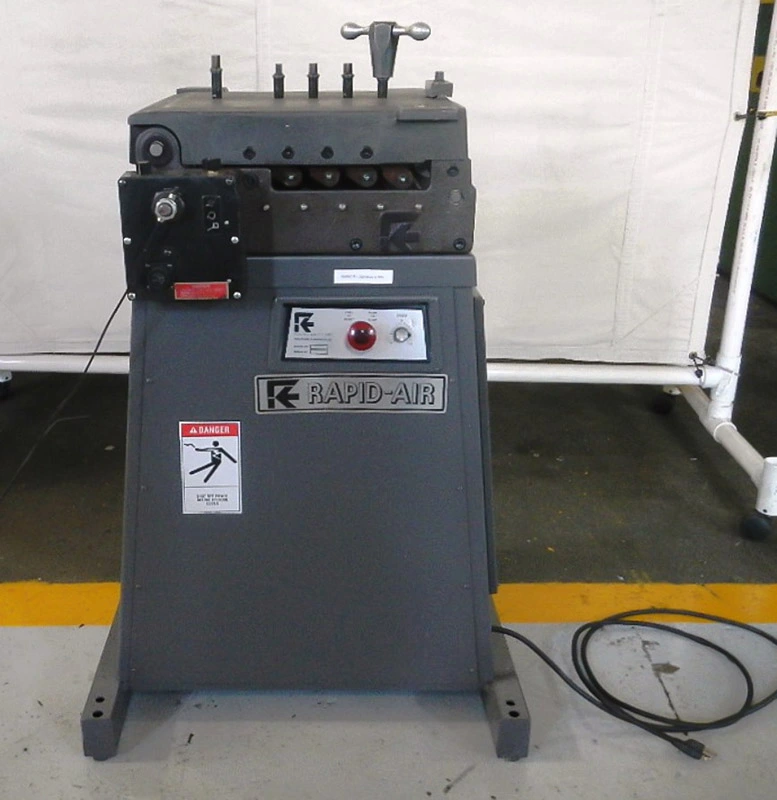

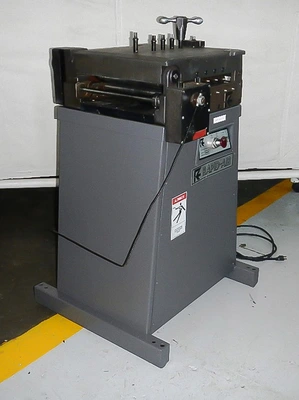

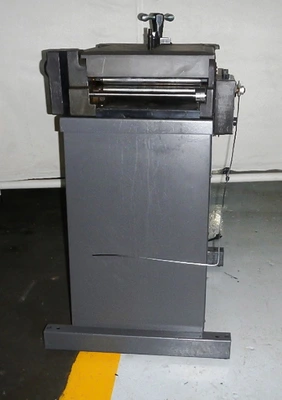

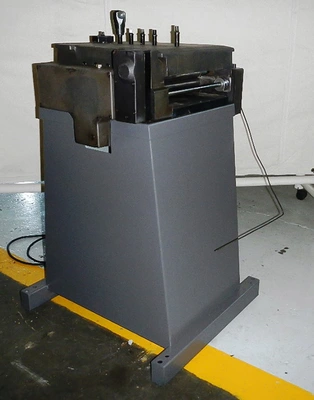

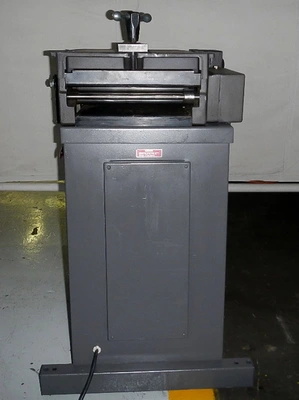

USED 2001 Rapid Air SC-12

12" Width 0.05" Cap. Rapid Air SC-12 STRAIGHTENER, Variable Speed Drive

12" x .050" RAPID AIR STRAIGHTENER*

MODEL SC12         S/N 83979        Year 2001

Max width of stock 12"

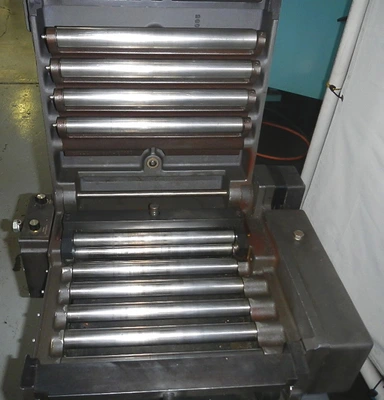

Straightening rolls (9) @ 1 1/4"

Pinch rolls (2) @ 1 1/4"

Rated material width .015" - .050"

Max line speed 0 - 825 in/min

Pass line height 35 1/2"

Drive motor 1 hp

Voltage 115V single phase

Dimensions 30" x 25" x 43" high

Weight 1,500 lbs.

Machine is equipped with:

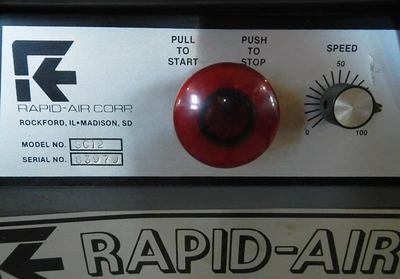

Variable speed drive

Loop control system (dancer arm or sensor)

Adjustable loop height

4-position loop arm range selector

Entry & exit guide rolls with Adjustable side guides

Hinged top roll housing for easy access

*PRELIMINARY SPECIFICATIONS - SUBJECT TO VERIFICATION

** Located in our Harrison,NJ Warehosue **
