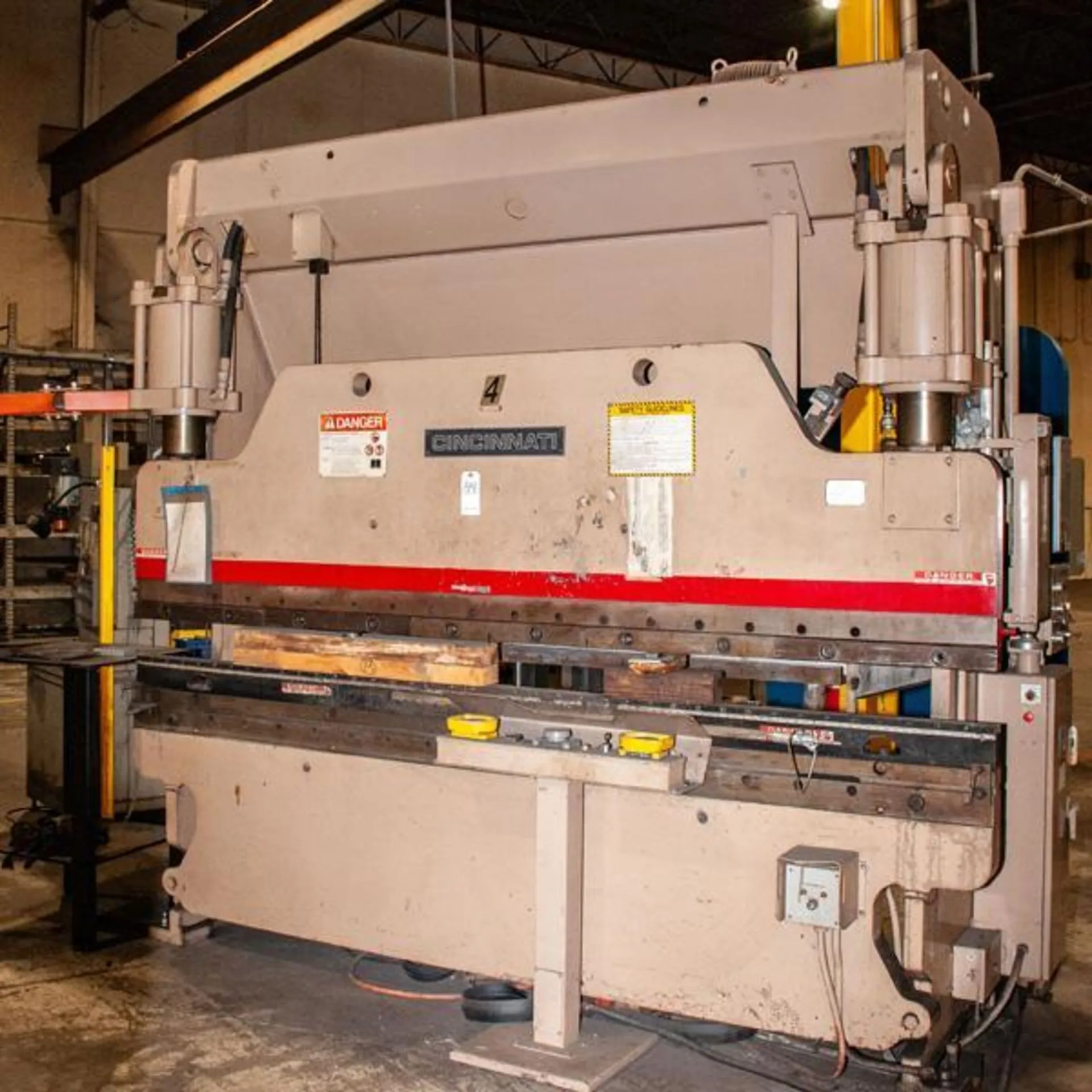

USED 1990 Cincinnati 135CB8

135 Ton 120" Bed Cincinnati 135CB8 PRESS BRAKE

135 TON x 10' CINCINNATI HYDRUALIC PRESS BRAKE

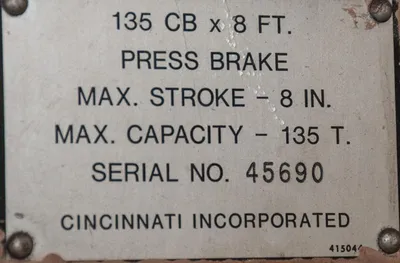

MODEL 135CBx8          S/N 45690          NEW 1990

TONNAGE ...................... 135 TONS

OVERALL LENGTH ............... 10'

DIST. BETWEEN HOUSINGS ....... 8'6"

BENDING CAP. (MILD STEEL) .... 3/16" X 10'3"

                               1/4" x 7'6"

                               1/2" x 4'8"

STROKE ....................... 8"

THROAT DEPTH ................. 7"

OPEN HEIGHT .................. 15"

CLOSED HEIGHT ................ 7"

RAM SPEED - HIGH ............. 136 IPM

            MEDIUM ........... 65 IPM

            LOW .............. 16 IPM

            RETURN ........... 122 IPM

MOTOR ........................ 25 HP

Dimensions: 126" x 48" x 122" high

Weight: 16,000 lbs

CURRENTLY 480 VOLT / 3 PHASE

EQUIPPED WITH:

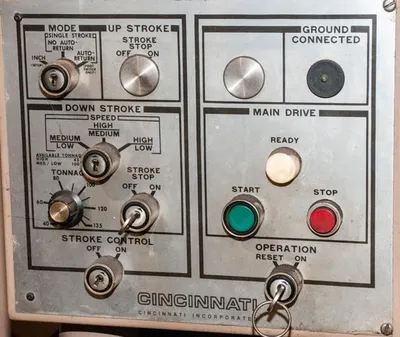

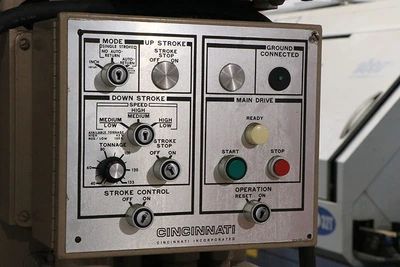

- LOW, MEDIUM & HIGH SPEED MODES

- ADJUSTABLE TONNAGE

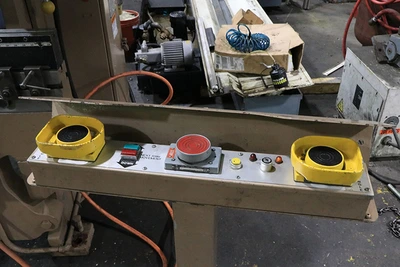

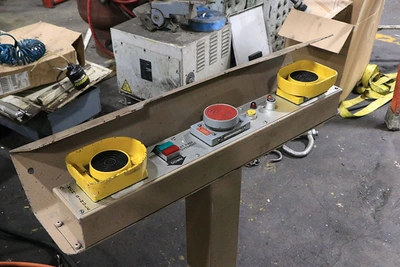

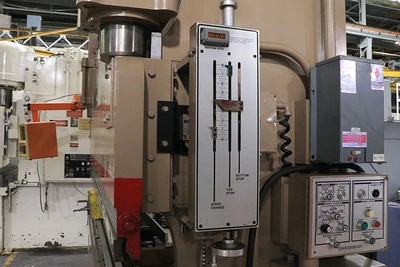

- PEDESTAL MOUNTED PALM BUTTONS

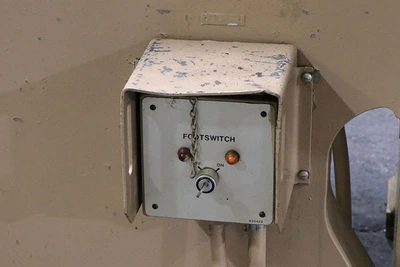

- FOOT PEDAL

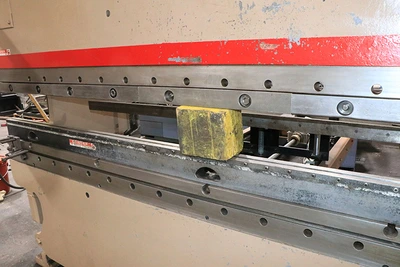

- LOWER DIE RAIL

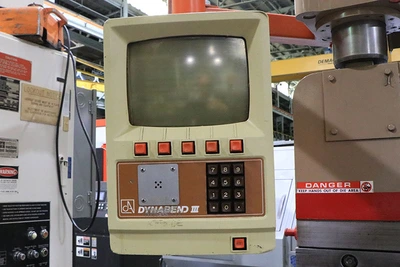

- NON-WORKING DYNA-BEND II BACK GAUGE

FOR MORE INFORMATION: Call Rick at 973-497-7560
