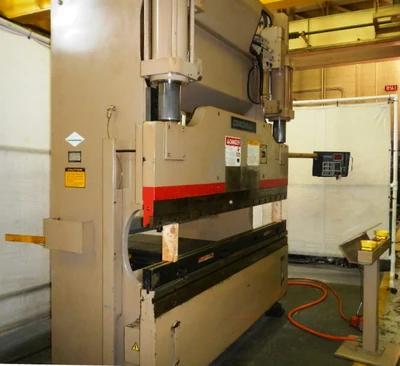

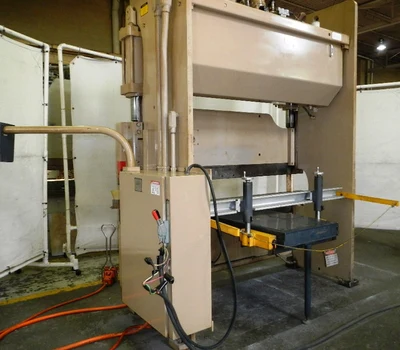

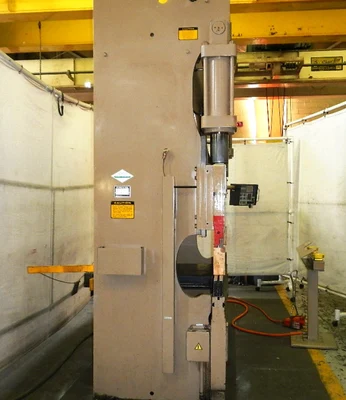

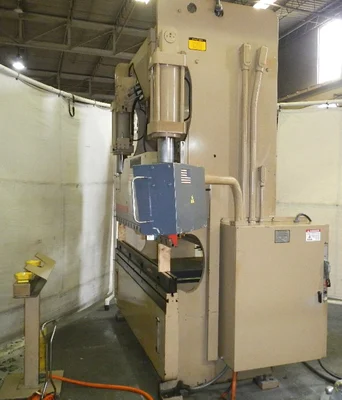

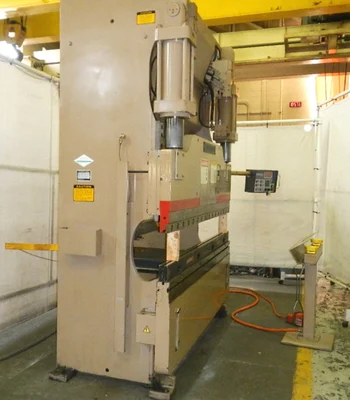

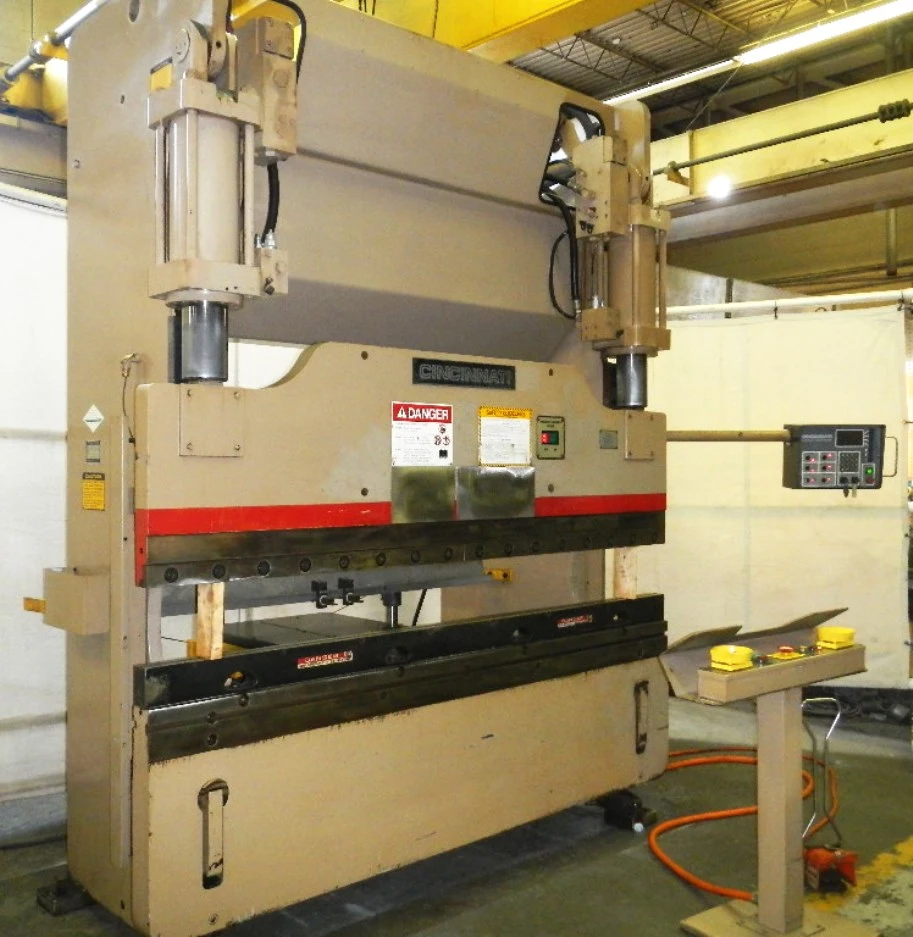

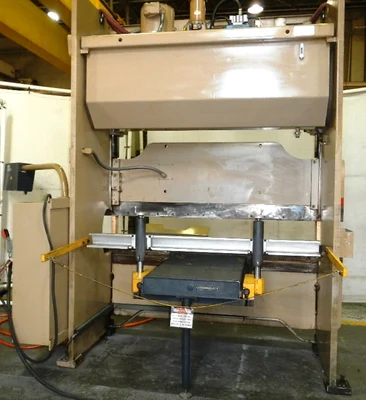

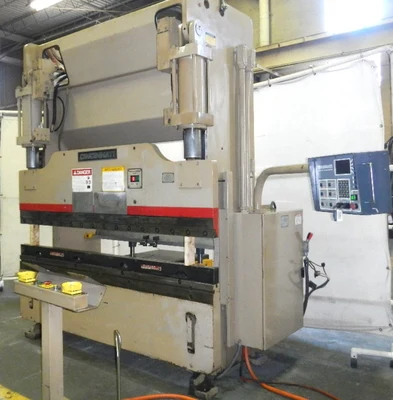

USED 1998 Cincinnati 90CBIIX6

90 Ton 96" Bed Cincinnati 90CBIIX6 PRESS BRAKE

8' X 90 TON CINCINNATI HYRAULIC PRESS BRAKE

MODEL 90CBX6         S/N 50092         Year 1998

Capacity .............................. 90 tons

Overall length of bed & ram ........... 96"

Distance between housings ............. 72"

Stroke of ram ......(Extended)......... 14"

Open daylight ......................... 15"

Closed daylight ....................... 7"

Throat depth .......................... 7"

Bending capacity ...................... 5' x 1/4"

                                        6'8" x 3/16"

Ram speed: ............................ Approach 200 ipm

                                        High 55 ipm

                                        Medium 20 ipm

                                        Low 5 ipm

                                        Return 185 ipm

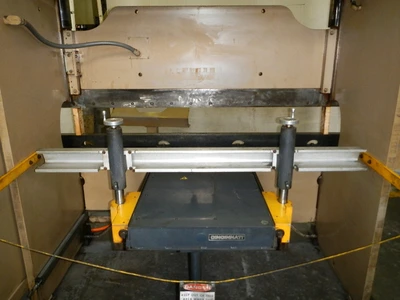

Back gauge range ...................... 24"

Motor ................................. 15 hp

Dimensions 102" x 60" x 112" high

Weight 12,000 lbs

Machine is equipped with:

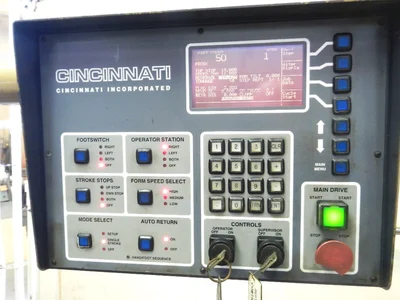

- Cincinnati CNC 2-axis Control (Ram & Back Gauge)

- Adjustable Tonnage Control

- 3-speed (low/ medium/ high) Ram control w/ selector switch

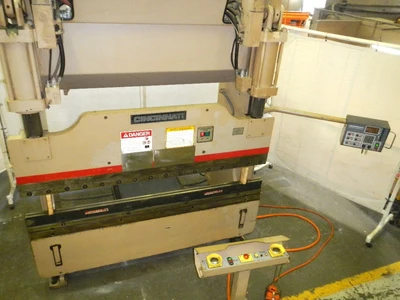

- Remote Pedestal w/Palm Buttons and E-Stop

- Adjustable Ram Tilt

- Lower Die Rail

*PRELIMINARY SPECIFICATIONS - SUBJECT TO VERIFICATION
