USED 1998 Cincinnati 90CBIIx8

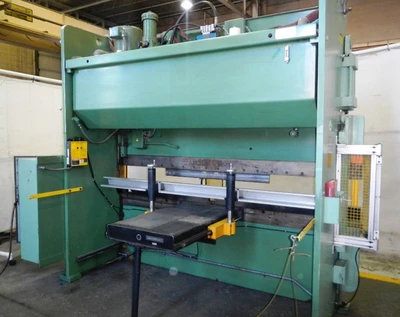

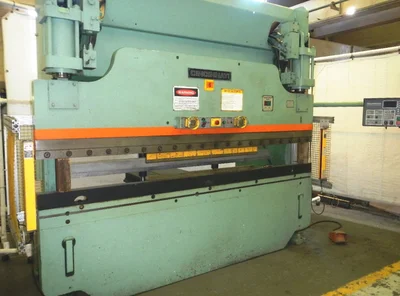

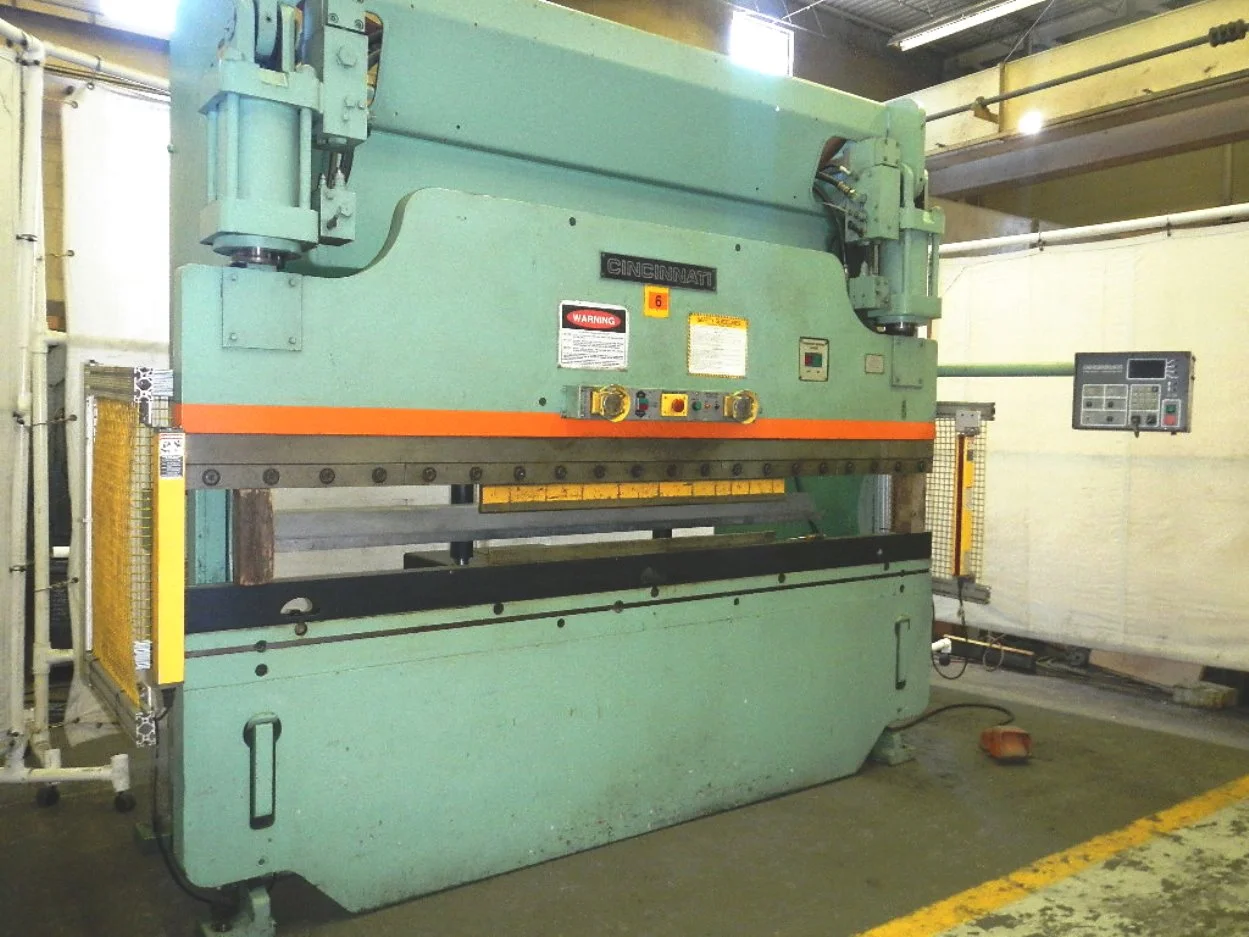

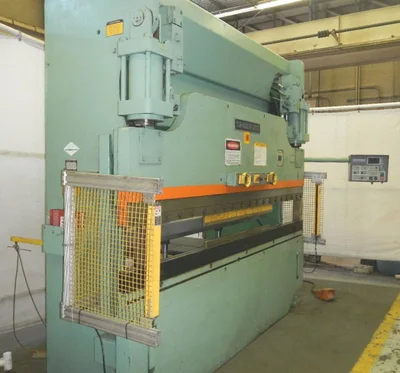

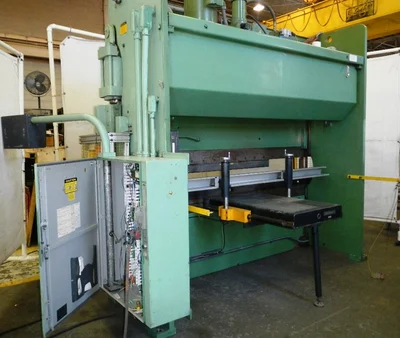

90 Ton 120" Bed Cincinnati 90CBIIx8 PRESS BRAKE

90 TON X 10' CINCINNATI HYDRAULIC PRESS BRAKE

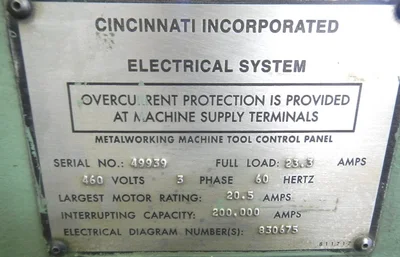

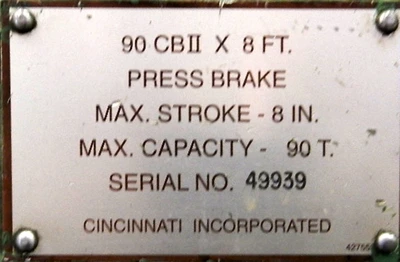

MODEL 90CBIIX8           S/N 49939          NEW 1998

Capacity ............................. 90 tons

Bending capacity ..................... 10' x 12 gauge

                 ..................... 6'8" x 3/16"

                 ..................... 5' x 1/4"

Distance between housings ............ 8' 6"

Stroke ............................... 8"

Throat ............................... 7"

Overall die surface .................. 10"

Die space - open ..................... 15"

Closed ............................... 7"

Ram speed: Approach .................. 260 ipm

           High ...................... 80 ipm

           Medium .................... 20 ipm

           Low ....................... 10 ipm

           Return .................... 280 ipm

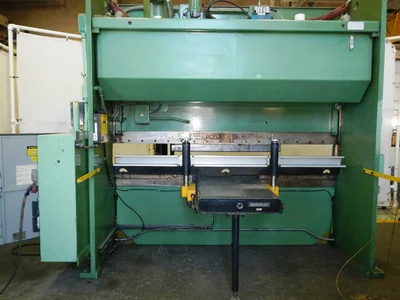

Back gauge range ..................... 24"

R-axis adjustment (manual) ........... 2" - 10"

Motor ................................ 15 HP

Approximate overall dimensions ....... 60 D x 120 W x 116 H

Approximate weight ................... 14,000 lbs.

Machine is equipped with:

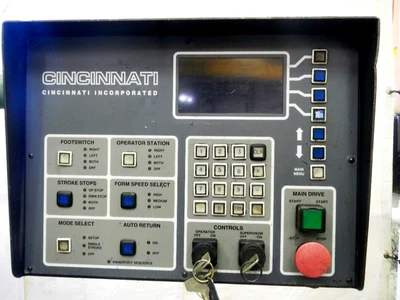

- Cincinnati CNC 2-Axis Back Gauge and Ram Control

- Manual R Axis

- Lower die rail

- 3-speed (low / medium / high)

- Adjustable tonnage control

- Micrometer ram tilt adjustment

- Palm buttons mounted on machine face with E-Stop

- Remote foot pedal

FOR MORE INFORMATION: Call Rick at 973-497-7560
