USED 1966 Carlton 1A 4'x9"

4' Arm Lth 9" Col Dia Carlton 1A 4'x9" RADIAL DRILL

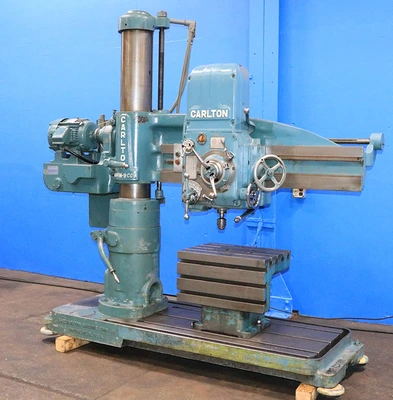

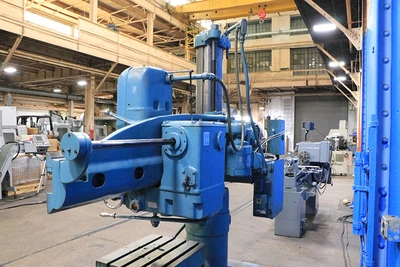

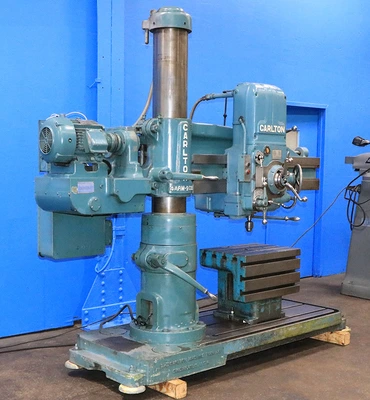

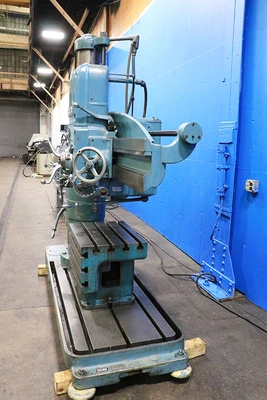

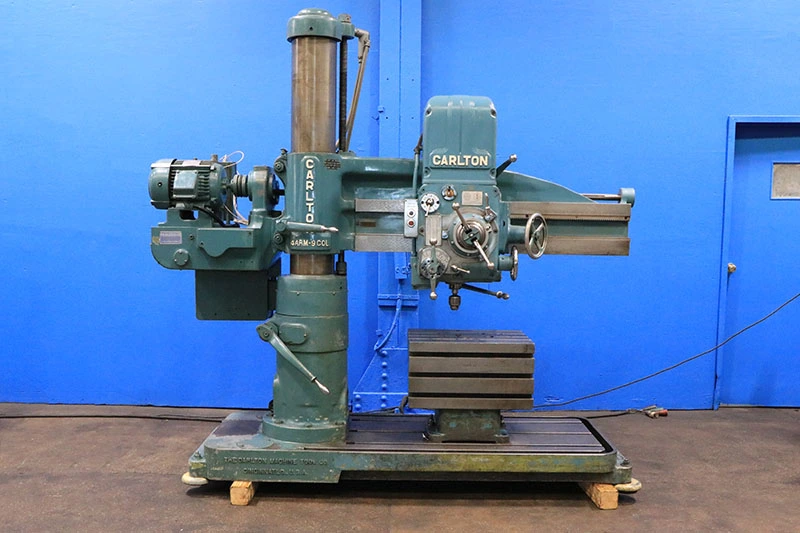

4' X 9" CARLTON RADIAL DRILL

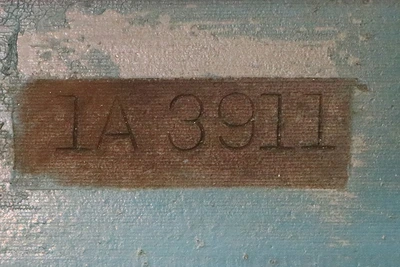

MODEL: 1A, S/N: 1A-3911, NEW: 1966

SPECIFICATIONS:

ARM LENGTH .................................... 4'

DIAMETER OF COLUMN............................. 9"

MAX. / MIN. SPINDLE RADIUS .................... 4'7" / 16"

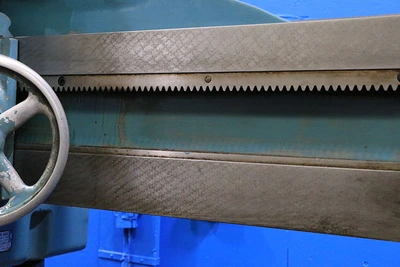

TRAVERSE OF SPINDLE HEAD ON ARM................ 39"

TRAVERSE OF ARM ON COLUMN ..................... 27"

  MAX. DISTANCE BETWEEN SPINDLE AND BASEPLATE.. 4'5"

  MIN. DISTANCE BETWEEN SPINDLE AND BASEPLATE.. 14"

SPINDLE:

  TRAVERSE OF SPINDLE........................... 12"

  TAPER IN SPINDLE.............................. #4 MT

  DIAMETER OF SPINDLE .......................... 2-1/2"

  RANGE OF SPINDLE SPEEDS(12) .................. 60 - 1500 RPM

  RANGE OF FEEDS (6)................ 6,8,11,15,20 & 25 PER REV

APPROXIMATE BASE WORKING SURFACE .............. 53"L x 30"W

APPROXIMATE MACHINE DIMENSIONS ......... 86"L x 30"W x 91"H

APPROXIMATE MACHINE WEIGHT .................... 7,500 LBS.

EQUIPPED WITH:

 POWER ELEVATION OF ARM ON COLUMN

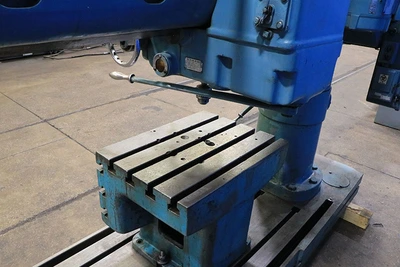

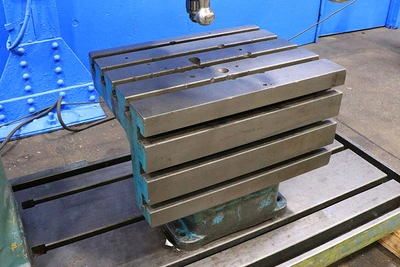

 T-SLOTTED TILTING BOX TABLE

 T-SLOTTED BASE

 COOLANT SYSTEM PUMP

 5 HORSE POWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

CONDITION:   ****   SUPERB   ****

FOR MORE INFORMATION: Call David at 973-497-7570
