30" Throat 10" Height Clausing 30RWH VERTICAL BAND SAW, Vari-speed, 3/4" Blade, Hyd-Tbl Feed, 2 HP,

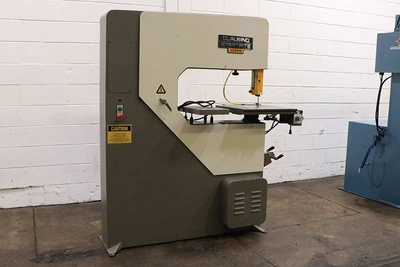

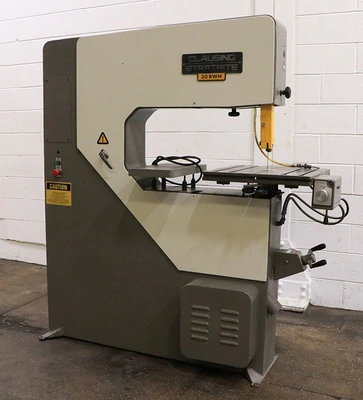

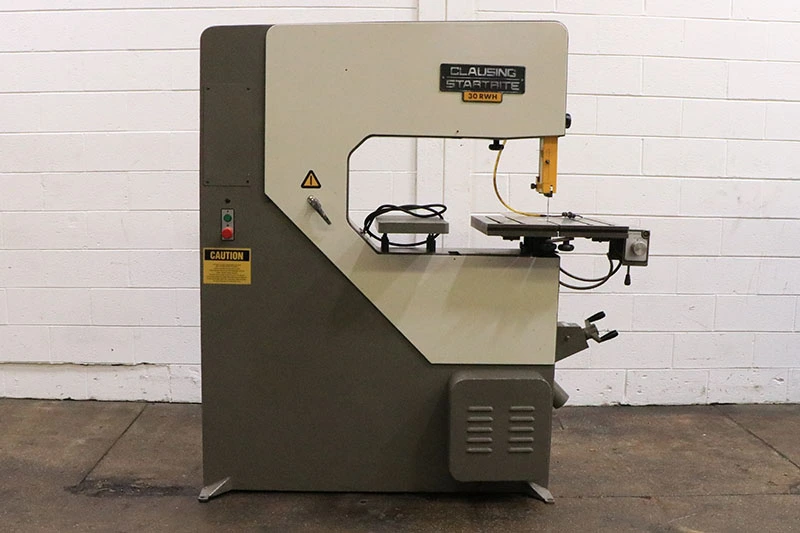

30" CLAUSING-STARTRITE VERTICAL BAND SAW
MODEL: 30 RWH, S/N: 9804
SPECIFICATIONS:
THROAT SIZE .......................... 30"
MAXIMUM WORK HEIGHT .................. 10"

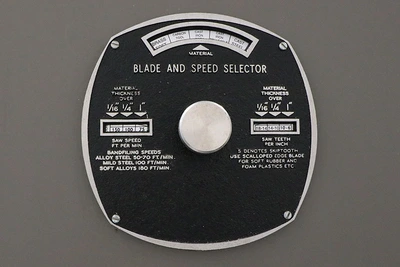

INF VAR BAND SPEED RANGE (2) ......... 50 TO 3,000 F.P.M.
BAND WIDTH RANGE, .................... 1/8" - 3/4"
BAND WHEEL DIAMETER .................. 14"
BAND LENGTH
TWO WHEEL ......................... 112"

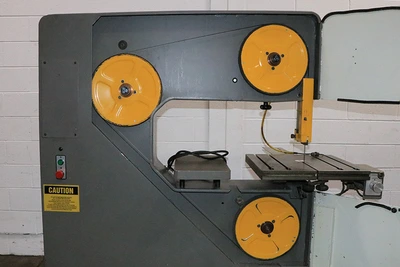

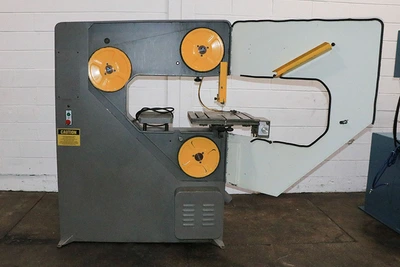

THREE WHEEL ........................147"
TABLE SIZE ........................... 20-1/2" x 20-1/2"
TABLE STROKE ......................... 8-1/2"
TABLE TILT, MANUAL ................... RIGHT 45°, LEFT 15°

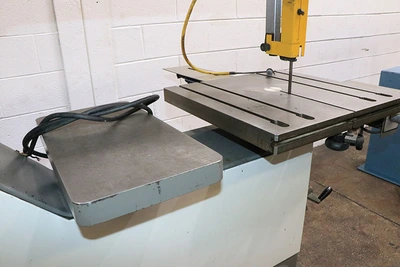

AUXILARY TABLE ....................... 10" x 19"
TABLE HEIGHTS ........................ 43-1/2"
APPROXIMATE WEIGHT ................... 1,175 LBS
APPROXIMATE DIMENSIONS ............... 66"L x 25"W x 72"H
EQUIPPED WITH:

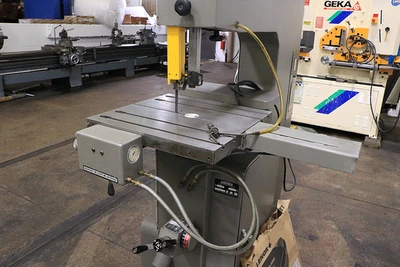

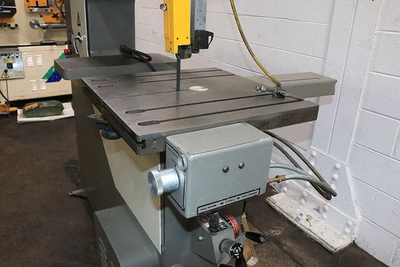

- HYDRAULIC SLIDING TABLE FEED
- T-SLOTTE TABLES

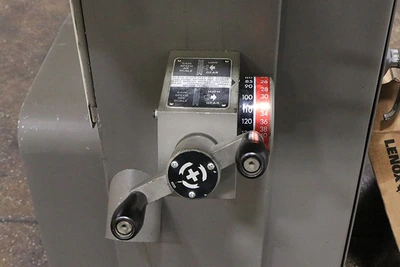

- TWO BLADE SPEED RANGES WITH VARIABLE SPEED DRIVE
- REMOVABLE CHIP DRAWER
- 2 HORSE POWER BLADE DRIVE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
FOR MORE INFORMATION: Call David at 973-497-7570
