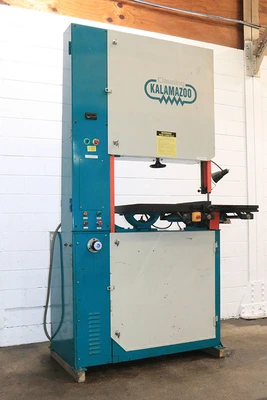

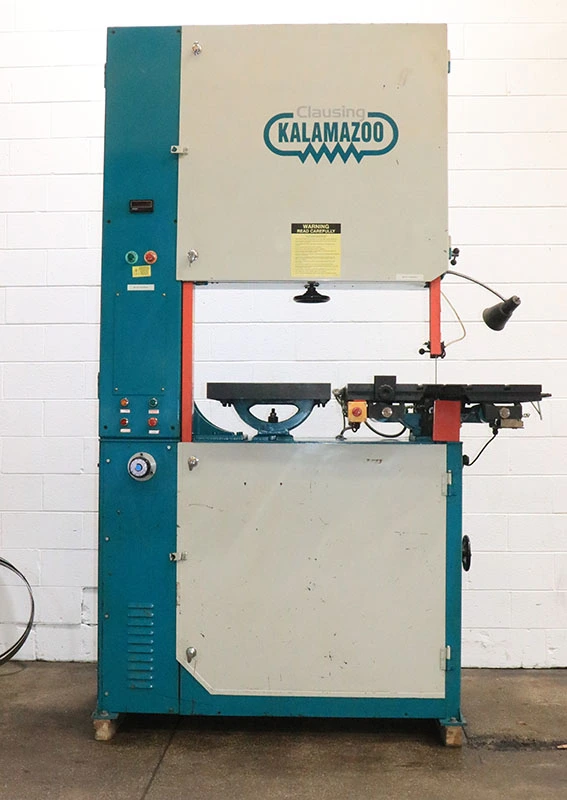

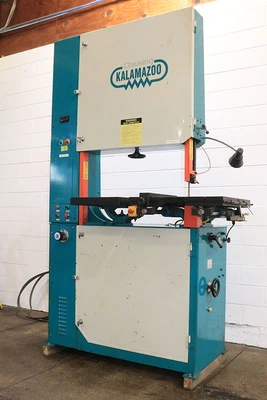

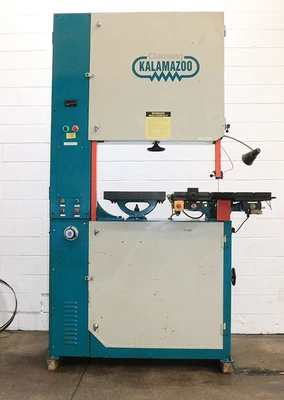

USED 2013 Kalamazoo Giant V-4014H

40" Throat 14" Height Kalamazoo Giant V-4014H VERTICAL BAND SAW, Vari-Speed, Hyd-Tbl Fd, 1" Blade, T-Slotted, 5 HP

40" CLAUSING KALAMAZOO BANDSAW W/HYDRAULIC TABLE FEED

MODEL: GIANT V4014H,  S/N: M1310834,  NEW: 2013

SPECIFICATIONS:

THROAT BAND TO COLUMN.................. 40"

MAXIMUM WORK HEIGHT.................... 14"

TABLE HEIGHT........................... 54"

BAND WIDTH CAPACITY.................... 1/16" TO 1-1/4"

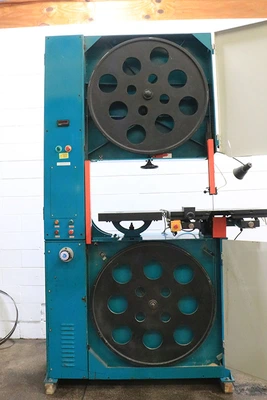

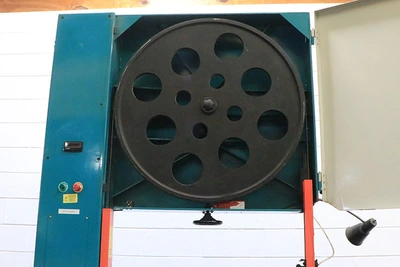

BAND LENGTH............................ 260" - 263"

TABLE SIZE OF FRONT TABLE.............. 29" X 27"

TABLE TILT............................. 45 DEG. RIGHT/

10 DEG./LEFT

TABLE SIZE OF REAR TABLE............... 19" X 26-3/4"

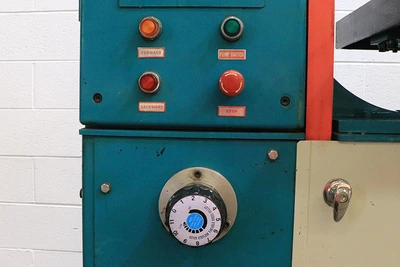

VARIABLE SPEED DRIVE, INF. VARIABLE.... 50 - 5200 FPM

TABLE STROKE........................... 12"

APPROXIMATE FLOOR SPACE................ 40"W X 72"L X 113"H

APPROXIMATE WEIGHT .................... 3,500 LBS

EQUIPPED WITH:

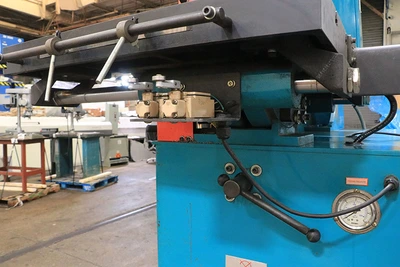

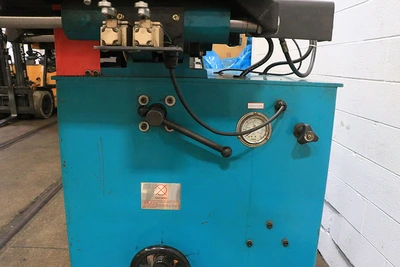

HYDRAULIC TABLE FEED VARIABLE PRESSURE

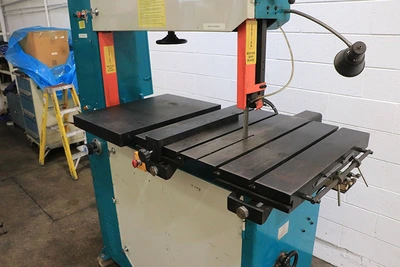

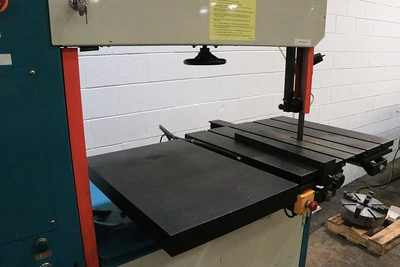

T-SLOTTED TABLE

4-SPEED VARIABLE TRANSMISSION

BUILT-IN AIR CHIP BLOWER

5 HORSE POWER DRIVE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
