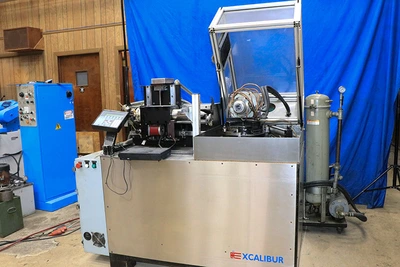

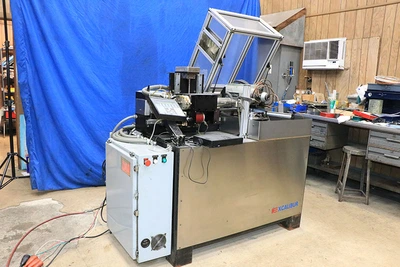

USED 2007 Excalibur E45CNC, 4-AXIS CNC & 1-AXIS PNEUMATIC

5 Axis Excalibur E45CNC, 4-AXIS CNC & 1-AXIS PNEUMATIC CNC TOOL GRINDER, CONVERSATIONAL PROGRAMMING, 5 H.P.

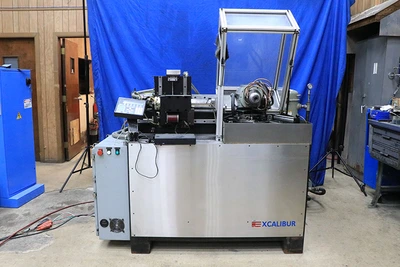

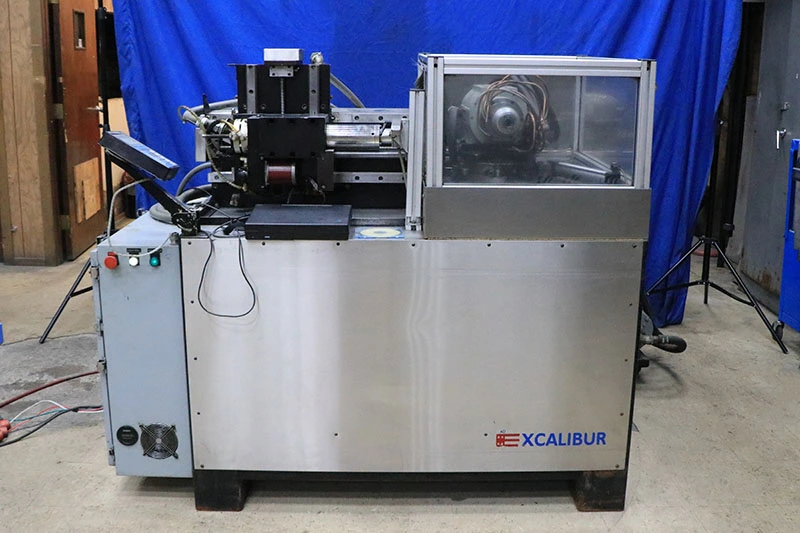

EXCALIBUR CNC TOOL & CUTTER GRINDER

New: 2007

The E45 is designed to manufacture small end

 mills from solid blanks in ONE chucking.

 It has four CNC axes and one pneumatic axis.

 The E45 has superb accuracy to produce tools

 from 1/32" to 3/4" diameter, straight or

 helical flute to 60 degree spiral.

MODEL: E45CNC    S/N: 4541     NEW: 2007

Max Tool Diameter: 0.750", 19.05 mm

Min Tool Diameter: 0.030", 0.76 mm

Max Length of Grind: 3.0", 76.2 mm

Max Overall Length of Tool: 8.0", 304.8 mm

WHEELHEAD AXES:

Y Slide: 9.0" (228.6 mm), repeatability 0.0002"

C Rotary (pneumatic): 0 to 60° left or Right

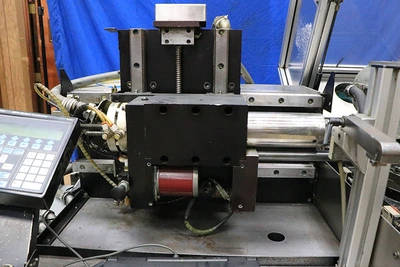

TOOLHEAD AXES:

X Slide: 15" (381 mm), repeatability 0.0002"

Z Slide:7.0" (177.0 mm), repeatability 0.0002"

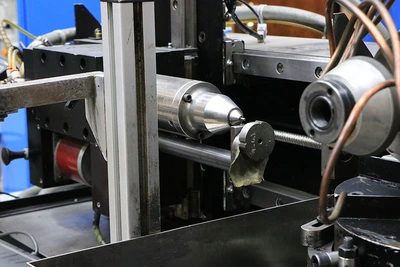

A Rotary : (Work Spindle) free rotation,

 resolution 0.005°

FEEDRATES:

All Linear Axes: 0-200 IPM

Rotary A Axis: 150 RPM

Rotary C Axis: Pneumatic

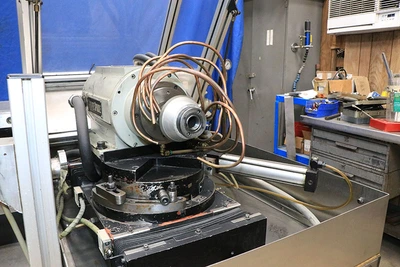

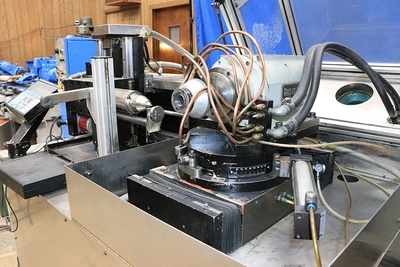

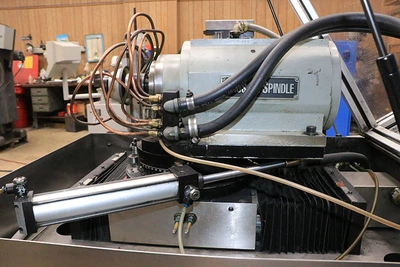

WHEELHEAD:

Wheel Spindle RPM: 0-6000 RPM

Wheel Diameters: 4"-6"

Spindle HP: 5 HP (10 HP optional)

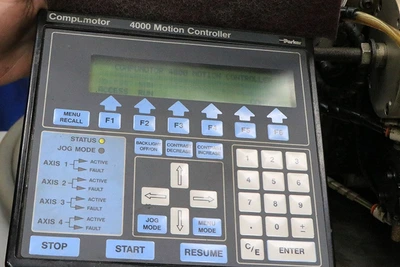

CONTROL:

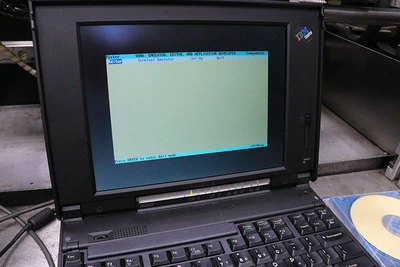

Intel Pentium controlled 6-axis CNC controller.

Digital AC servos drive all linear axes.

Excalibur Conversational tool programs,

 written in-house by Excalibur.

Optional programs available; Stepdrills,

 Reamers, Routers, Tapered Mills.

LINK TO VIDEO: https://youtu.be/iOa3Y0wCL8s?si=_m-Hq2udkxUpLNpU

*** EXCEPTIONAL CONDITION - JUST BEAUTIFUL CONDITION **

** INSEPRCT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
