1" Dia. Optima UNIVERSAL, OPTICAL SCOPE, TOOLING DRILL GRINDER, MADE IN SWITZERLAND

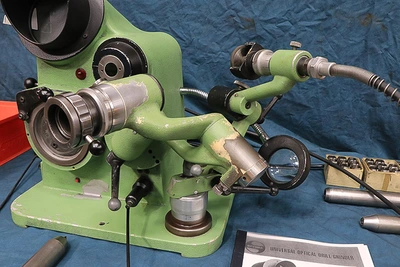

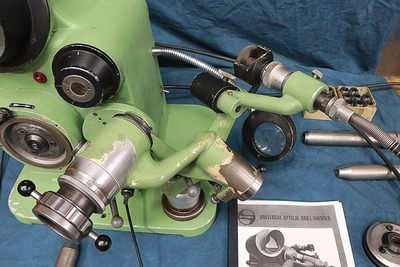

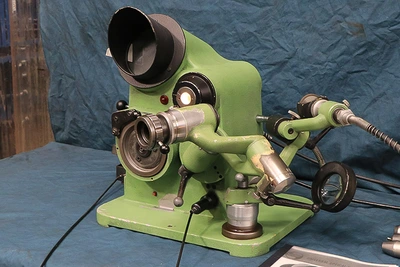

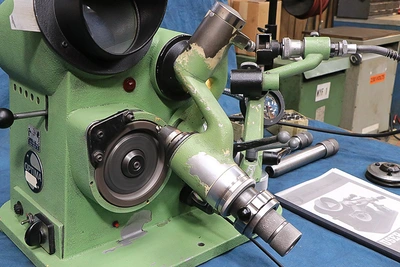

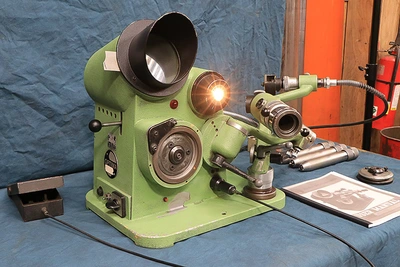

OPTIMA (MADE IN SWITZERLAND) HIGH PRECISION DRILL GRINDER
MODEL: UNIVERSAL S/N: B176.65 NEW: 1990's
RANGE................................. .0135"- 1"DIAMETER
POINT ANGLE.................. 70 DEGREES TO 145 DEGREES &
(DIFFERENT SETTING) 145 DEGREES TO 180 DEGREES
PRIMARY CUTTING ANGLE............ 0 DEGREES TO 40 DEGREES
SECONDARY CLEARANCE ANGLE........ 0 DEGREES TO 40 DEGREES
POINT THINNING WHEEL............................ 6800 RPM
APPROX. WEIGHT (MACHINE ONLYo .................. 120 LBS.
STANDARD FEATURES:
CAPABILITY TO GRIND RIGHT AND LEFT HAND DRILLS, HIGH SPEED
STEEL AND CARBIDE TIPPED OR SOLID CARBIDE DRILLS, SPADE
DRILLS, COUNTERSINKS, CENTER DRILLS OF ALL TYPES, TWO
AND THREE FLUTED DRILLS AND END MILLS (THREE FLUTED
OPTIONAL), TAPER SHANK DRILLS NO. 2 AND 3, SLOW OR FAST
SPIRAL, (UP TO 3/4" DIAMETER ANY LENGTH, STANDARD LENGTH
ABOVE 3/4" DIAMETER).
MACHINE WILL GRIND AND POINT THIN OR SPLIT POINT IN ONE
SETTING.

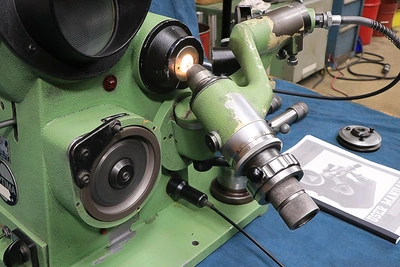

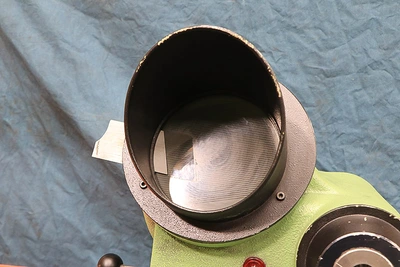

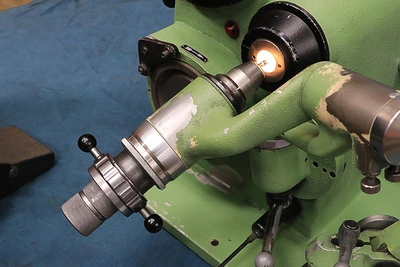

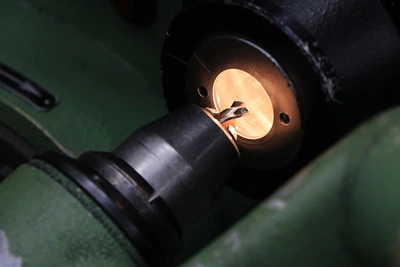

BUILT-IN OPTICAL COMPARATOR WITH MAGNIFYING LENS
BUILT-IN DIAMOND WHEEL DRESSER
BUILT-IN POINT SPLITTING OR WEB THINNING ATTACHMENT
FOOT PEDAL
SINGLE PHASE ELECTRICS
EQUIPPED WITH:

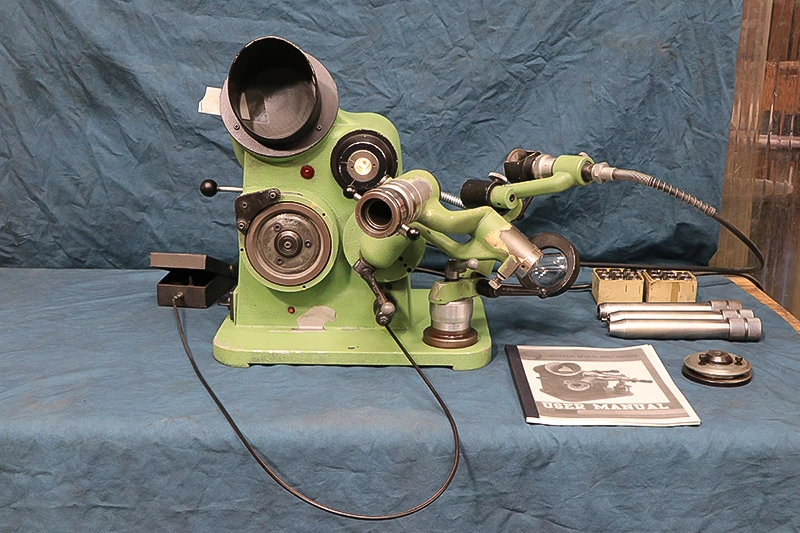

VERY NICE COMPLIMENT OF ACCESSORIES AS SHOWN IN THE PHOTOS

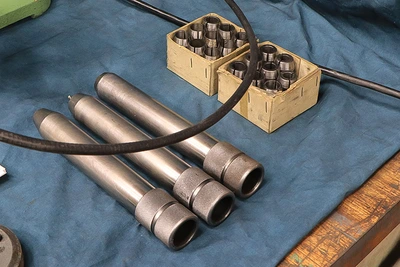

(2)DRILL CHUCKS
(1)COLLET CHUCK
(19) COLLETS
** EXCELLENT CONDITION & APPEARANCE (ORIGINAL PAINT) **
** INSPECT UNDER POWER OUR HARRISON, NJ WAREHOUSE **
LINK TO VIDEO: https://youtu.be/FJDTox157q4?si=fQPLh7ukxnvK6_A-
FOR MORE INFORMATION: Call Andy at 973-497-7600
