USED 1970 Cincinnati-Heald 274 UNIVERSAL WITH LONG BASE

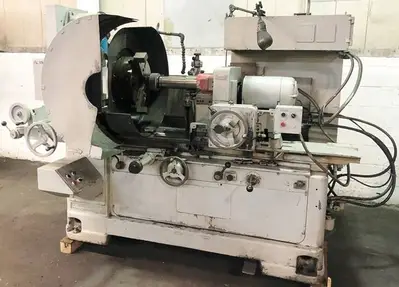

34.5" Swing 30.25" Stroke Cincinnati-Heald 274 UNIVERSAL WITH LONG BASE ID GRINDER, 4,800 RPM RED HEAD SPINDLE, 3-JAW CHUCK, DRESSER,

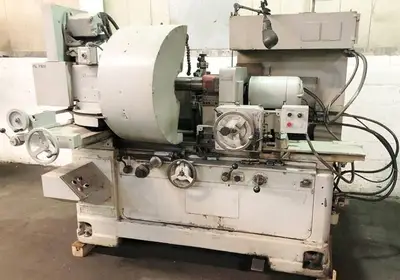

  CINCINNATI-MILACRON HEALD MODEL No. 274 UNIVERSAL

   "LARGE CAPACITY - LONG BASE INTERNAL GRINDER"

   MODEL:  No. 274      S/N: 40414      NEW: 1976

SPECIAL NOTE:

MACHINE WAYS HAVE BEEN REDONE BY THE REKNOWNED

 MACHINE TOOL REBUILDER, "AMERICAN MACHINE TOOL REPAIR

  & REBUILDING CO. INC." OF RANDOLPH, NJ.

  PLEASE CALL MR. ALEX KAROLY, FOR DETAILS

  ABOUT THE WORK HE PERFORMED FOR THIS MACHINE.

  HIS OFFICE PHONE IS (973) 927-0820 **

** A INTERNAL GRINDER WITH WIDE ANGULAR

   CAPACITY, BROAD APPLICATION VERSATILITY,

   SPEED, EASE OF OPERATION.  THIS VERSATILE

   MACHINE GRINDS STRAIGHT OR TAPERED HOLES,

   STRAIGHT OR TAPERED EXTERNAL SURFACES,

   AND FLAT, CONCAVE OR CONVEX FACES. **

SWING OVER TABLE ....................... 34.5"

  (WORKHEAD PARALLEL TO

  TABLE ON CENTER)

SWING INSIDE CHUCK GUARD ............... 31"

ANGULAR ADJ. OF WORKEAD ................ 0 TO 90 DEG.

TABLE WORKHEAD CROSS SLIDE ............. FRONT, MAX. 6"

                                         REAR, MAX. 15"

DIAMETER OF WORKHEAD SPINDLE FLANGE .... 9- 5/8"

WORKHEAD SPINDLE SPEEDS ................ 40 TO 350 RPM

TOTAL TABLE TRAVEL ..................... 30- 1/4"

INFINITELY VARIABLE TABLE SPEED ........ 0 TO 15' FPM

RAPID TRAVERSE OF TABLE ................ 35' FPM

CROSS FEED, 1 REV. OF HANDWHEEL ........ 0.050" ON DIA.

ROUGHING CROSS FEED - ADJ. FROM ........ 0.0001" TO .0006" DIA.

FINISHING CROSS FEED - NON ADJUSTABLE .. 0.0001" ON DIA.

ONE TURN OF WORKSLIDE HANDWHEEL ........ 0.100"

APPROX. DIMENSIONS...................... 120" X 81"W

APPROX. MACHINE WEIGHT.................. 8,850 LBS

MACHINE FEATURES:

LARGE CAPACITY, LONG BASE FOR LONG WORK, WITH

  30-1/4" TABLE TRAVEL34.5" SWING TO TABLE IN

  THE GAP, 31" SWING INSIDE CHUCK GUARD,

  THE CENTER OF GRINDING WHEEL TO TABLE

  TOP IS 16" (32" SWING)

HYDRAULIC TABLE FEEDS WITH HANDWHEEL FOR MANUAL OPERATION

AUTOMATIC FEEDS OF THE WWHEELHEAD, HAS "PLUNGE" FEED

HEAVY DUTY WORKHEAD

WORKHEAD HAS HANDWHEEL FOR CROSS-SLIDE MOVEMENT

WORKHEAD SWIVELS 0 TO 90 DEGREES

INFINITELY VARIABLE SPEED CONTROL FOR WORKHEAD SPINDLE SPEEDS

SELF-CONTAINED HYDRAULIC SYSTEM

HYDRAULIC SYSTEM IN THE REAR OF THE MACHINE,

 WITH NEWER 3 H.P. BALDOR MOTOR & HYDRAULIC PUMP

10 H.P./3/60/230-460 VOLT MOTOR (WHEELHEAD)

EQUIPPED WITH:

15" DIAMETER 3-JAW CHUCK

HEALD RED HEAD I.D. SPINDLE,

  TYPE 407-160209-7,

  S/N: 110069,

  4,800 MAX. RPM,

 SPINDLE IS 12- 3/4" FROM THE CASTING TO THE WHEEL,

  WHEEL IS 5" DIAMETER x 2"WIDTH,

  THIS SPINDLE HAS BEEN REBUILT BY "SOPKO"

   IN THE RECENT PAST

FACING ATTACHMENT

MULTI-POSITION STOP FOR CROSS-SLIDE POSITIONING

DIAL INDICATOR HOLDER FOR MULTI-STOP

DROP DOWN WHEEL DRESSER

COOLANT SYSTEM

COMES WITH ORIGINAL ELECTRIC PRINTS

TAG ON THE MACHINE SAYS "CINCINNATI-MILACRON"

MACHINE IS PRESENTLY WIRED FOR 440 VOLTS

 ** PRESENTLY DISASSEMBLED, OUR MACHINE IS LOCATED

    IN OUR HARRISON, NJ WAREHOUSE **

** - WAYS REDONE BY:

    "AMERICAN MACHINE TOOL REPAIR & REBUILDING CO. INC."

     OF RANDOLPH, NJ (973) 927-0820 - **

** WITH THE WAYS REDONE, OUR MACHINE IS SUPERIIOR

   IN ALL RESPECTS! **

FOR MORE INFORMATION: Call Andy at 973-497-7600
