USED 1991 Tschudin HTG310, 1991, SWISS, FACTORY RISERS

11.8" Swing 13.4" Centers Tschudin HTG310, 1991, SWISS, FACTORY RISERS OD GRINDER, FULL AUTO CYCLE, #5MT WORKHEAD

 11.8" X 13.4" TSCHUDIN "MADE IN SWITZERLAND"

            SUPER-PRECISION

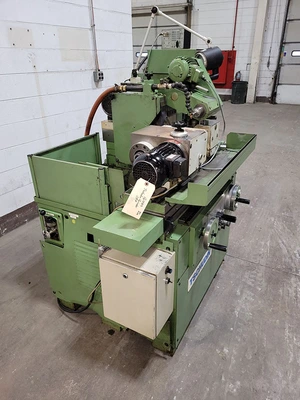

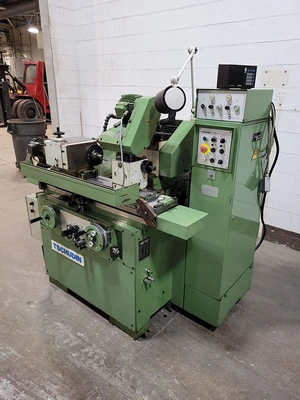

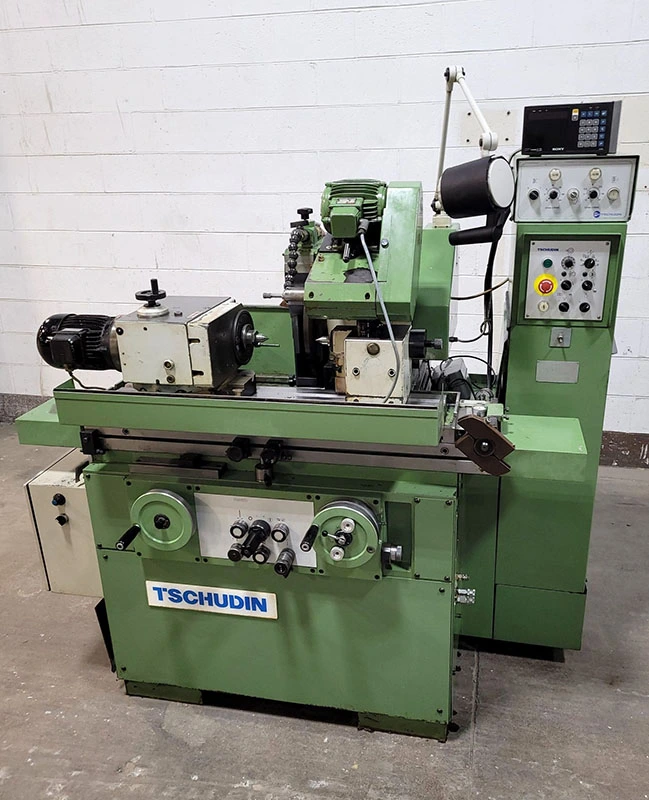

   UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER

MODEL:  HTG-310     S/N:  31452      NEW:  1991

TABLE:

SWING OVER TABLE, AS EQUIPPED,

 WITH 2" FACTORY RISERS ....... 11.8"

CENTER HEIGHT, WITH RISERS .... 5.9"

DISTANCE BETWEEN CENTERS ...... 13.4"

SWIVELLING RANGE .............. +/- 11°

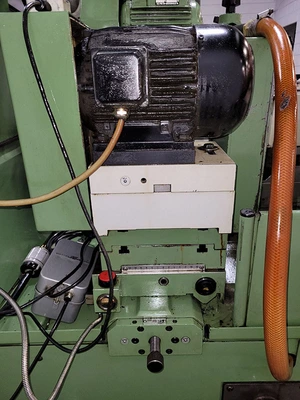

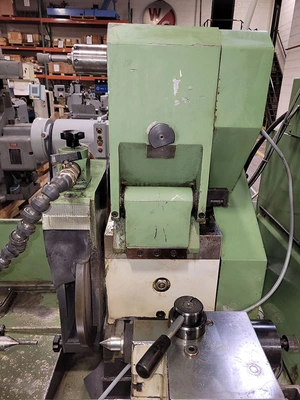

WHEELHEAD:

WHEEL SIZE ............... 14"DIA. x 2"W x 5"BORE

SWIVELLING RANGE .............. +/- 12°

MOTOR ......................... 4 HP

RAPID APPROACH, POWER ......... 1-1/2"

MANUAL TRAVEL ................. 1.77"

INFEED-AUTOMATIC .............. 0 TO .050" ON DIA.

NORMAL INFEED TRAVEL, MAX ..... 0.047"

FINE INFEED TRAVEL, MAX. ...... 0.0059"

INFEED SPEED, MAXIMUM ......... 1.2"/MIN.

SPARKOUT ...................... 2 TO 30 SECONDS

WORKHEAD:

SPINDLE TAPER ................. #5MT

SWIVELLING RANGE .............. 360°

INF. VAR. SPINDLE SPEEDS ...... 50 TO 500 RPM

TAILSTOCK:

TAPER OF CENTER BORE .......... #3MT

TRAVEL OF CENTER .............. 0.8"

APPROXIMATE DIMS. ........ 79.53"L x 47.25"D x 57.1"H

APPROXIMATE WEIGHT ............ 4,000 LBS

STANDARD FEATURES/ATTRIBUTES:

TSCHUDIN HYDRODYNAMIC TYPE CYLINDRICAL BRONZE TO

  STEEL BEARING WHEELHEAD DESIGN

SIMPLE ONE-KNOB CONTROL INITIATES ALL THE SETTINGS

  FOR TRAVERSE & PLUNGE GRINDING CYCLES

HYDRAULIC OPERATION FEATURING:

-POWER TABLE TRAVERSE

-AUTOMATIC INFEED

-PLUNGE INFEED

-RAPID WHEELHEAD ADVANCE AND RETRACTION

-SPARKOUT TIMER

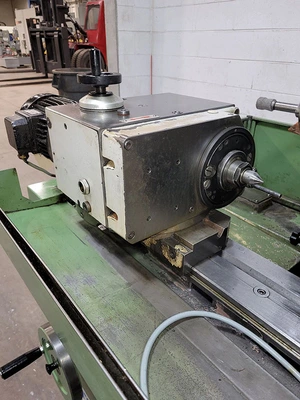

DUAL LIVE/DEAD WORKHEAD SPINDLE

A 0.00002" GRADUATED DIAL SETS POSITIVE STOP DIAMETER

3/60/230-460 VOLT ELECTRICS

EQUIPPED WITH:

FACTORY RISERS, WHICH INCREASES THE SWING TO 11.8"

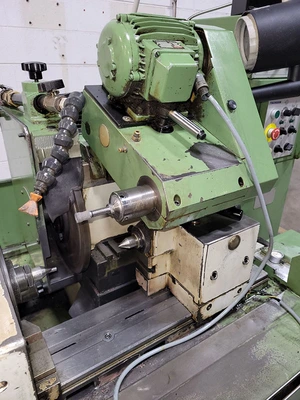

SWING DOWN I.D. GRINDING ATTACHMENT

I.D. GRINDING SPINDLE, COMPLETE, WITH ARBOR & WHEEL

EXTRA GRINDING WHEELS FOR THE I.D. SPINDLE

EXTRA BELTS

ELECTRONIC VARI-SPEED CONTROL, FOR THE I.D. SPINDLE,

 FACTORY OPTION THAT OUR MACHINE IS EQUIPPED WITH.

"SONY" SINGLE AXIS DIGITAL READOUT DISPLAY

"FIXED STOP FOR TABLE SLIDE FACTORY ACCESSORY

DUAL RATE AUTOMATIC PLUNGE INFEED OPTION,

 "COARSE" & "FINE" CYCLE FEED OPTION

COOLANT SYSTEM WITH PAPER FILTRATION

COOLANT GUARDING

WORK LIGHT

(2) ADDITIONAL GRINDING WHEEL HUBS, WITH GRINDING WHEELS

DIAL INDICATOR, FOR TABLE SWIVEL ADJUSTMENT

CENTER IN WORKHEAD

RADIUS DRESSER

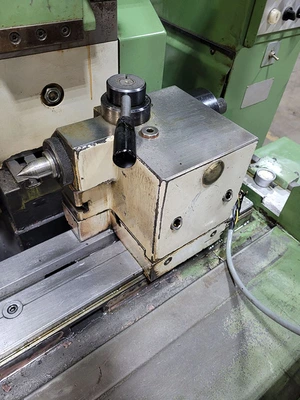

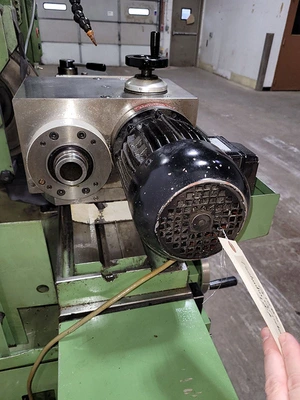

WORKHEAD SPINDLE IS A LARGE TAPER, No. 5 MT.

 THIS ALLOWS ONE TO USE A 5C COLLET WITH AN

 ATTACHMENT THRU THE SPINDLE, EITHER A

 DRAW BAR, A QUICK ACTING LEVER TYPE UNIT,

 OR A PNEUMATIC POWER CLOSER TYPE.

MACHINE MANUAL, COMPLETE DOCUMENTATION

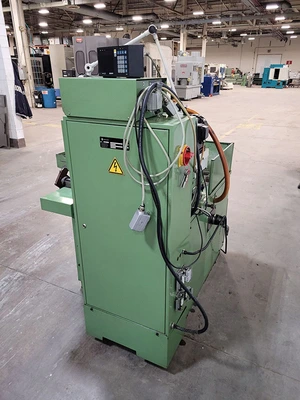

HIGH-TYPE ELECTRICAL CABINET, ATTACHED TO MACHINE

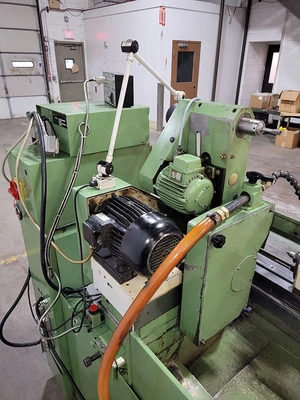

WHEELHEAD MOTOR, 3 KW (4 H.P.), 3/60/230-460 VOLTS

MACHINE IS PRESENTLY WIRED FOR 3/60/460 VOLTS

MACHINE IS WIRED FOR 3/60/230 VOLTS, 5.6 KVA

** MADE IN GRENCHEN, SWITZERLAND **

** ORIGINAL & BEAUTIFUL - EXCEPTIONAL CONDITION & APPEARANCE **

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
