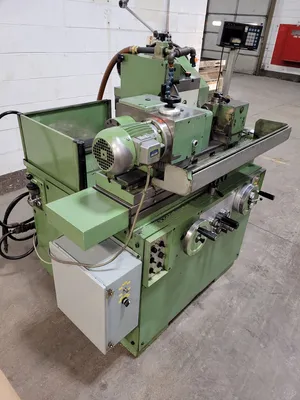

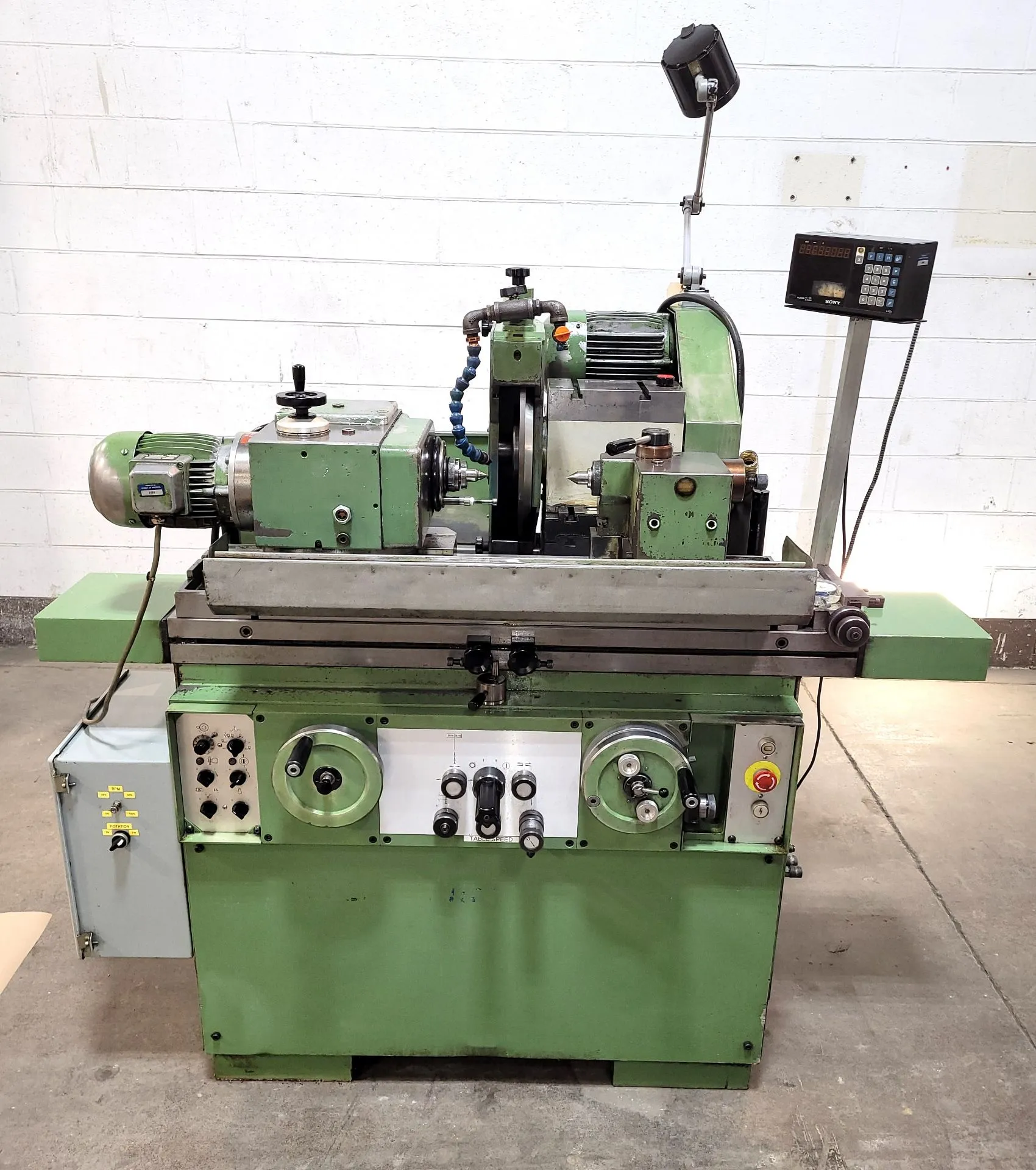

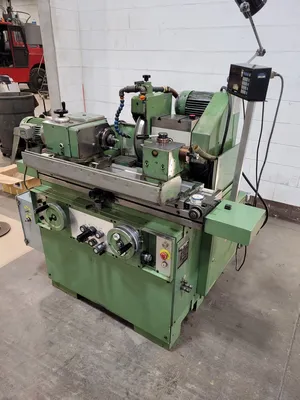

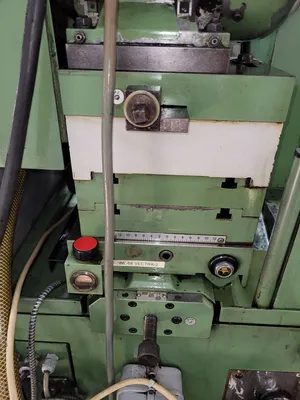

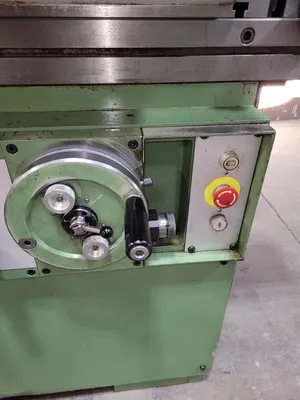

USED 1991 Tschudin HTG-310, 1991, RISERS, FULL AUTO CYCLE

11.8" Swing 13.4" Centers Tschudin HTG-310, 1991, RISERS, FULL AUTO CYCLE OD GRINDER, DUAL RATE AUTO PLUNGE OPTION

11.8" X 13.4" TSCHUDIN "SWISS" SUPER-PRECISION

     UNIVERSAL CYLINDRICAL GRINDER

MODEL:  HTG-310     S/N:  1105       NEW:  1991

TABLE:

SWING OVER TABLE, AS EQUIPPED,

 WITH 2" FACTORY RISERS ....... 11.8"

CENTER HEIGHT, WITH RISERS .... 5.9"

DISTANCE BETWEEN CENTERS ...... 13.4"

SWIVELLING RANGE .............. +/- 11°

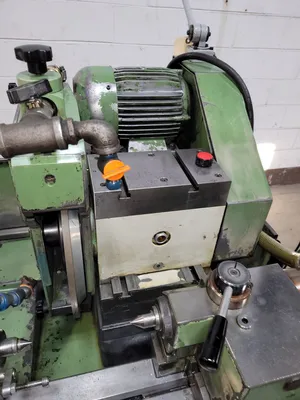

WHEELHEAD:

WHEEL SIZE .................... 14"DIA. x 2"W x 5"BORE

SWIVELLING RANGE .............. +/- 12°

MOTOR ......................... 4 HP

RAPID APPROACH ................ 1-1/2"

INFEED-AUTOMATIC .............. 0 TO .050" ON DIA.

INFEED SPEED, MAXIMUM ......... 1.2"/MIN.

SPARKOUT ...................... 2 TO 30 SECONDS

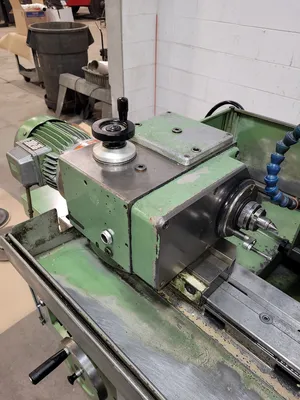

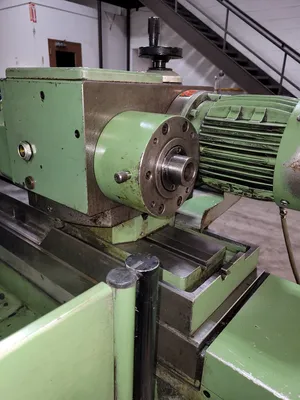

WORKHEAD:

SPINDLE TAPER ................. #5MT

SWIVELLING RANGE .............. 360°

INF. VAR. SPINDLE SPEEDS ...... 50 TO 500 RPM

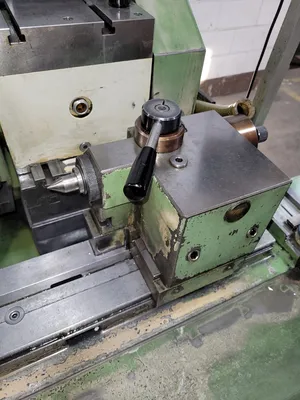

TAILSTOCK:

TAPER OF CENTER BORE .......... #3MT

TRAVEL OF CENTER .............. 0.8"

APPROXIMATE WEIGHT ............ 4,000 LBS

STANDARD FEATURES/ATTRIBUTES:

TSCHUDIN HYDRODYNAMIC TYPE CYLINDRICAL BRONZE TO

  STEEL BEARING WHEELHEAD DESIGN

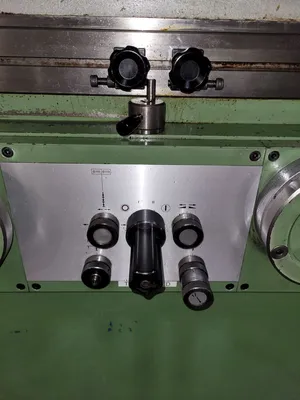

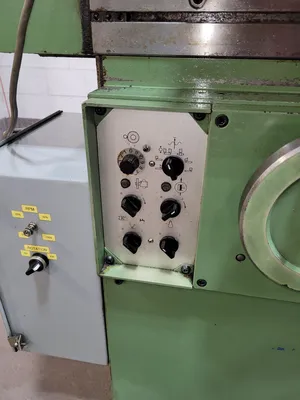

SIMPLE ONE-KNOB CONTROL INITIATES ALL THE SETTINGS

  FOR TRAVERSE & PLUNGE GRINDING CYCLES

HYDRAULIC OPERATION FEATURING:

-POWER TABLE TRAVERSE

-AUTOMATIC INFEED

-PLUNGE INFEED

-RAPID WHEELHEAD ADVANCE AND RETRACTION

-SPARKOUT TIMER

DUAL LIVE/DEAD WORKHEAD SPINDLE

A 0.00002" GRADUATED DIAL SETS POSITIVE STOP DIAMETER

3/60/230-460 VOLT ELECTRICS

EQUIPPED WITH:

FACTORY RISERS, WHICH INCREASES THE SWING TO 11.8"

"SONY" #LH51 SINGLE AXIS DIGITAL READOUT DISPLAY

DUAL RATE AUTOMATIC PLUNGE INFEED OPTION,

 "COARSE" & "FINE" CYCLE FEED OPTION

COOLANT SYSTEM WITH PAPER FILTRATION

COOLANT GUARDING

WORK LIGHT

BALANCING STAND FOR THE GRINDING WHEEL

(2) ADDITIONAL GRINDING WHEEL HUBS, WITH GRINDING WHEELS

DIAL INDICATOR, FOR TABLE SWIVEL ADJUSTMENT

CENTER IN WORKHEAD

RADIUS DRESSER

WORKHEAD SPINDLE IS A LARGE TAPER, No. 5 MT.

 THIS ALLOWS ONE TO USE A 5C COLLET WITH AN

 ATTACHMENT THRU THE SPINDLE, EITHER A

 DRAW BAR, A QUICK ACTING LEVER TYPE UNIT,

 OR A PNEUMATIC POWER CLOSER TYPE.

MACHINE MANUAL, COMPLETE DOCUMENTATION

WHEELHEAD MOTOR, 3 KW (4 H.P.), 3/60/230-460 VOLTS

MACHINE IS PRESENTLY WIRED FOR 3/60/460 VOLTS

MACHINE IS WIRED FOR 3/60/480 VOLTS, 5.6 KVA

** MADE IN GRENCHEN, SWITZERLAND **

** ORIGINAL & BEAUTIFUL - EXCEPTIONAL CONDITION & APPEARANCE **

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
