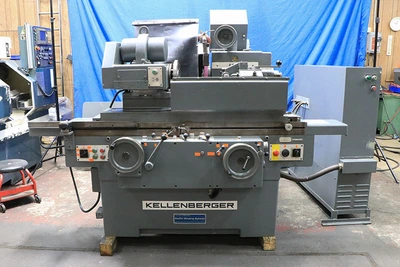

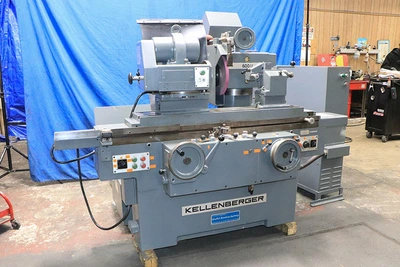

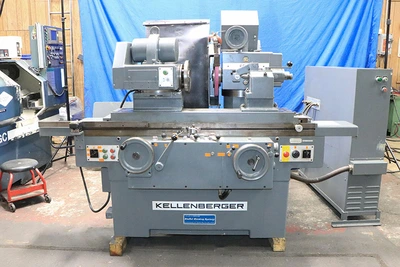

USED 1982 Kellenberger 600U, 1982, RISERS, I.D. ATT., AUTO CYCLE,

17.8" Swing 24" Centers Kellenberger 600U, 1982, RISERS, I.D. ATT., AUTO CYCLE, OD GRINDER

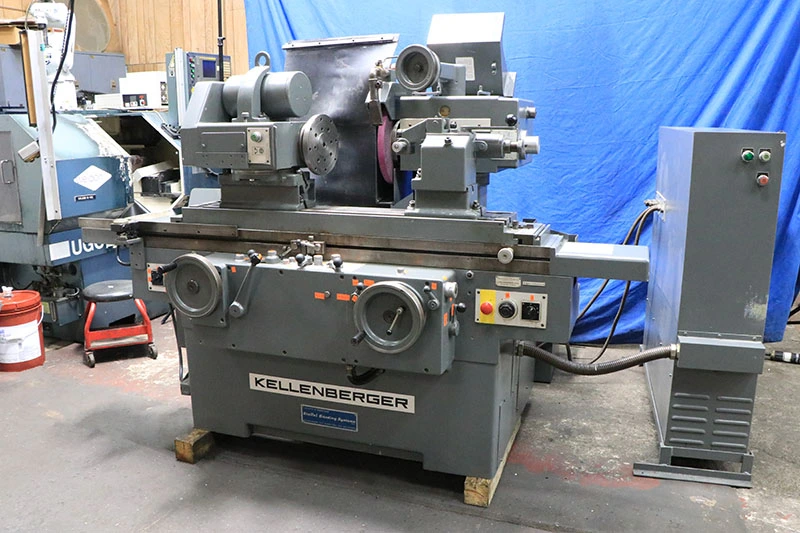

        17.8" x 24" KELLENBERGER

      "SWISS" -  "HIGH PRECISION"

  UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER

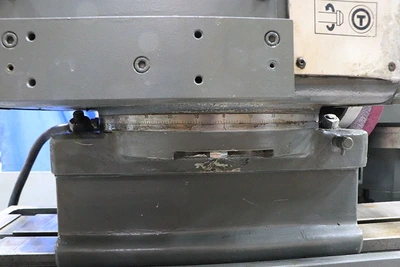

   THIS MACHINE HAS 4" FACTORY RISERS,

          IT CAN SWING 17.8"

MODEL:  600U       S/N: 1887/455       NEW: 1982

MAX. SWING w/4" FACTORY RISERS ............ 17.8"

DISTANCE BETWEEN CENTERS (NOMINAL)......... 23- 5/8"

DISTANCE BETWEEN CENTERS W/TAILSTOCK

  OVERHANGING ............................. 29- 1/2"

TABLE:

LONGITUDINAL TABLE TRAVEL ................. 35- 7/16"

LONGITUDINAL TABLE TRAVEL PER

  TURN OF HANDWHEEL:

  COARSE .................................. 0.8"

  FINE .................................... 0.1"

LONGITUDINAL TABLE SPEED (HYDRAULIC) ...... 0 TO 20' FPM

TABLE SWIVELS ............................. 11 DEGREES

REVERSING DWELL ........................... 0 TO 5 SECONDS

GRINDING WHEEL INFEED:

  1 GRADUATION OF FEED SCALE .............. 0.0002"

  AUTOMATIC HYDRAULIC INFEED, ............. 0 TO 0.037"

  AUTO INFEED PER TABLE REVERSAL .......... 0.00004" TO 1.18"

  PLUNGE GRINDING: INFEED SPEED ........... 0.00001 TO .0001 IN/S

  MICROMETER STOP, 1 GRADUATION ........... 0.00005"

UNIVERSAL GRINDING SPINDLE HEAD:

  TRANSVERSE MOVEMENT OF WHEEL SLIDE ...... 8- 21/32"

  INFEED PER REV. OF HANDWHEEL:  COARSE ... 0.3"

                                 FINE ..... 0.04"

  HYDRAULIC RAPID WHEEL SLIDE

   ADVANCE/RETRACTION STROKE .............. 1-9/16"

  GRINDING WHEEL SPEEDS ................... 1500, 1700, 2200 RPM

  GRINDING WHEEL FOR CYLINDRICAL

   GRINDING ............................... 16" X 2" X 5"

  GRINDING WHEEL (SURFACE GRINDING)........ 9" X 1/2" X 3"

  SWIVEL OF GRINDING HEAD

   W/LOCKING EVERY 90 DEGREES ............. 270 DEGREES

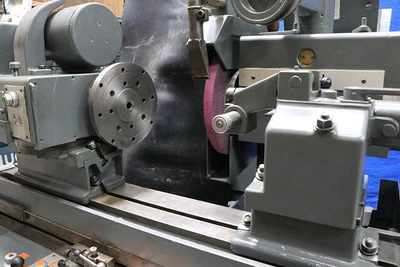

WORKHEAD:

  INFINIT. VARIABLE SPINDLE SPEEDS ........ 6 - 600 RPM

  WORKHEAD SWIVELS ........................ 360 DEGREES

  INSIDE TAPER OF WORK SPINDLE ............ #5MT

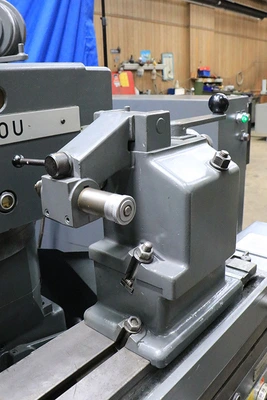

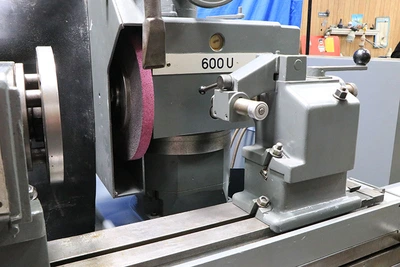

TAILSTOCK:

  INSIDE TAPER OF SPINDLE ................. #4MT

  STROKE OF SPINDLE ........................ 1- 3/16"

APPROXIMATE FLOOR SPACE REQUIRED .......... 102" X 64" X 66"H

APPROXIMATE MACHINE WEIGHT ................ 6,000 LBS

MACHINE FEATURES:

HYDRAULIC OPERATION FEATURING:

-SINGLE LEVER CONTROL

-INFINITELY VARIABLE TABLE TRAVERSE

-AUTOMATIC INFEED

-PLUNGE INFEED

-RAPID WHEEL ADVANCE & RETRACTION

SPARKOUT TIMER

EQUIPPED WITH:

- 17.8 SWING, WITH 4" FACTORY ISSUE RISERS

   FROM KELLENBERGER

- ADJUSTABLE RISE & FALL MECHANISM OF WHEELHEAD

   BY TURN OF HANDWHEEL

- SWING AROUND INTERNAL GRINDING ATTACHMENT,

- I.D. SPINDLE PROVIDED WITH THE MACHINE

- 16" O.D. WHEEL

- WORKHEAD W/DUAL LIVE & DEAD WORKHEAD SPINDLE

- ELECTRONIC VARIABLE SPEED DRIVE, PROVIDING FOR

   INFINITELY VARIABLE WORKHEAD SPINDLE SPEEDS

- 4 H.P. WHEELHEAD MOTOR

- COOLANT TANK & PUMP, BASIC SYSTEM

- LEVELLING PADS

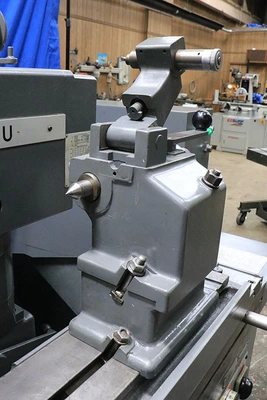

- SWING BACK DIAMOND DRESSER, MOUNTED ON THE TAILSTOCK

- DRAW BAR FOR USE WITH A CHUCK OR FACE PLATE

- FACE PLATE

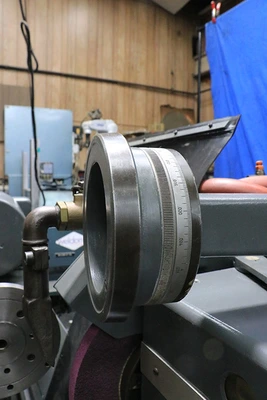

- "TRAVADIAL" ANALOG INDICATOR, FOR THE TABLE MOVEMENT

- MACHINE IS PRESENTLY WIRED FOR 3/60/480 VOLTS

SPECIAL NOTE:

THIS MACHINE HAS BEEN SERVICED BY OUR STAFF

 AND IS AVAILABLE FOR DELIVERY! **

LINK TO VIDEO: https://youtu.be/mMd3YjGvh_Q?si=vU4rSK09KtH0w4gf

** EXCELLENT CONDITION & APPEARANCE - ORIGINAL PAINT **

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
