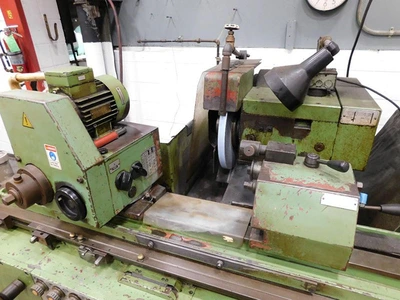

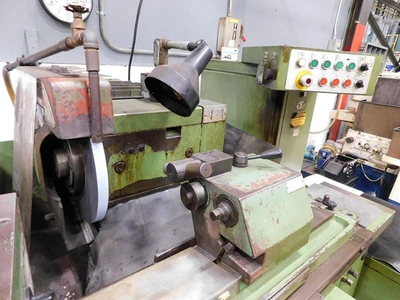

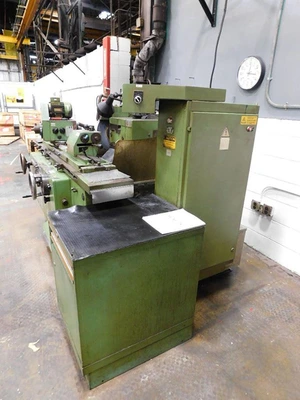

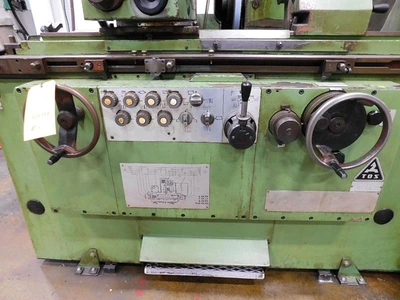

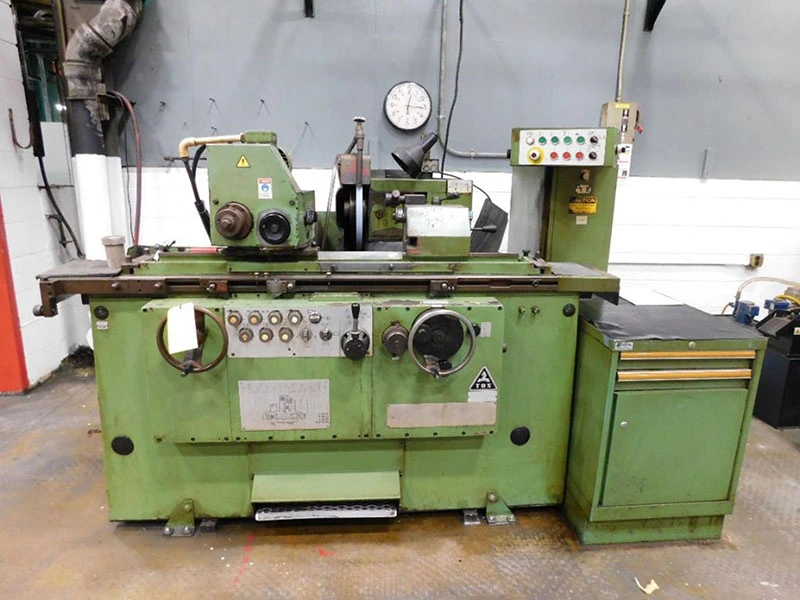

USED 1992 Tos BUAJ 28-630, 1992, HYD. TABLE, 16" WHEEL

11" Swing 25" Centers Tos BUAJ 28-630, 1992, HYD. TABLE, 16" WHEEL OD GRINDER, AUTO INFEED, AUTO DUAL RATE PLUNGE

  11" X 25" TOS HOSTIVAR UNIVERSAL

      CYLINDRICAL GRINDER

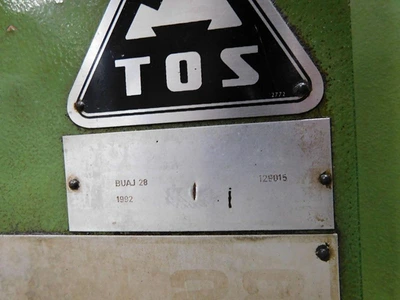

MODEL BU28/630     S/N: 129015     NEW: 1992

MAX. GRINDING DIAMETER ................. 11"

DISTANCE BETWEEN CENTERS ............... 25"

MAXIMUM WEIGHT OF WORKPIECE,

 BETWEEN CENTERS ....................... 276 LBS.

WORKHEAD SPINDLE TAPER ................. #4 MT

WORKHEAD SPINDLE SPEED RANGE,

 (12) SPEED CHOICES, FROM .............. 22.4 TO 710 RPM

SWIVEL OF WORKHEAD ..................... +/- 90°

TAILSTOCK SPINDLE TAPER ................ #4 MT

TAILSTOCK SLEEVE ....................... 1"

WHEELHEAD TRAVEL MAXIMUM ............... 10- 1/2"

HYDRAULIC RAPID TRAVERSE (STROKE) ...... 1- 1/2"

AUTOMATIC INFEED OF GRINDING WHEEL,

 PER TABLE REVERSAL .................... 0.0002" - 0.002"

AUTOMATIC PLUNGE INFEED RATE,

 COARSE FEED RATE ...................... 0.0040" - 0.157" IPM

AUTOMATIC PLUNGE INFEED RATE,

 FINE FEED RATE ........................ 0.00060"" - 0.04" IPM

MINIMUM MANUAL "MICRO-INFEED",

 RELATED TO DIAMETER ................... 0.00004"

WHEELHEAD SWIVELS, LEFT & RIGHT ........ +/- 45°

GRINDING WHEEL DIMENSIONS .............. 16" X 1- 1/2"

                                         X 5"

MINIMUM GRINDING WHEEL DIAMETER ........ 10"

MAX. WIDTH OF GRINDING WHEEL ........... 2- 1/2"

WHEELHEAD MOTOR ........................ 5.5 H.P.

GRINDING WHEEL SPEEDS (2) .............. 2,040 & 2,560 RPM

MAXIMUM TABLE TRAVEL ................... 30"

LEAST LENGTH TRAVEL .................... 0.04"

TABLE SWIVELS .......................... 8° CW

                                         3° CCW

HYDRAULIC TABLE TRAVERSE ............... 2" TO 275"

APPROX. FLOOR SPACE REQUIRED ........... 103" x 65" x 60"H

APPROX. MACHINE WEIGHT ................. 5,800 LBS.

  EQUIPPED WITH:

HYDRODYNAMIC SPINDLE BEARINGS

HYDRAULIC TABLE TRAVERSE

AUTO INFEED AT TABLE REVERSALS

DUAL RATE AUTO PLUNGE INFEED

POWER RAPID WHEELHEAD ADVANCE & RETRACTION

SPEARKOUT 0 TO 30 SECONDS

DUAL LIVE/DEAD WORKHEAD SPINDLE

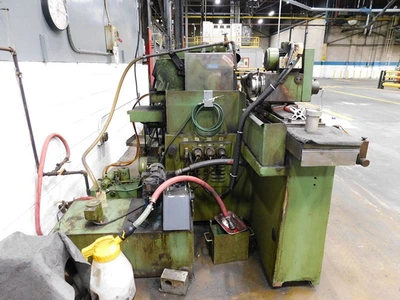

COOLANT TANK WITH MAGNETIC SEPARATOR

ADAPTOR PLATE, FOR WORKHEAD

MAGNETIC CHUCK WITH ADAPTOR, ON THE WORKHEAD

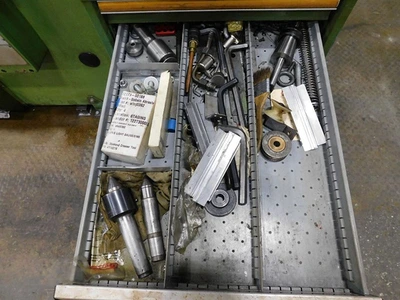

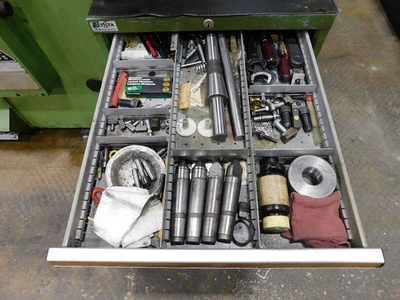

TOOL CABINET, WITH ACCESSORIES

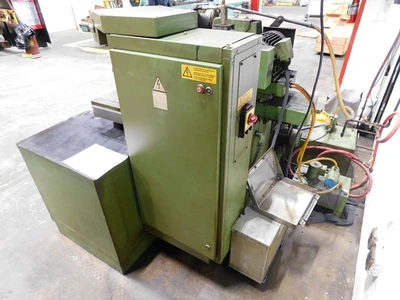

SEPERATE ELECTRICAL CABINET

MACHINE IS WIRED FOR 3/60/220-440 VOLT ELECTRICS

** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **

** EXCELLENT CONDITION & APPEARANCE - ORIGINAL PAINT **

FOR MORE INFORMATION: Call Andy at 973-497-7600
