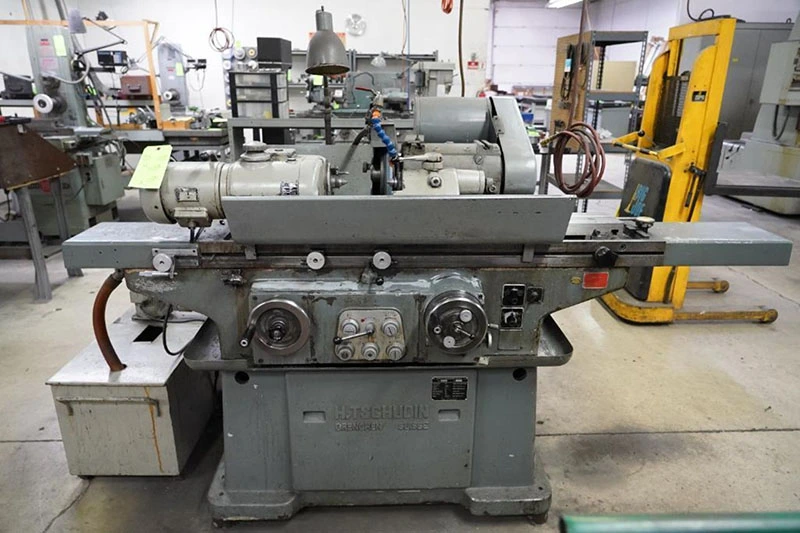

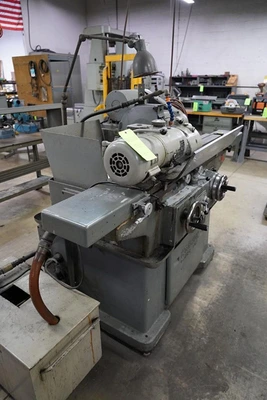

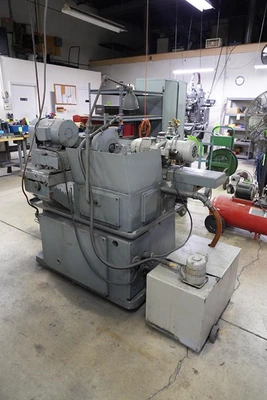

USED 1963 Tschudin HTG-600, 1963, SWISS, ALL ORIGINAL SURVIVOR,

8" Swing 24" Centers Tschudin HTG-600, 1963, SWISS, ALL ORIGINAL SURVIVOR, OD GRINDER, AUTO CYCLE

  8" X 24" TSCHUDIN "SWISS"

       HIGH PRECISION

 UNIVERSAL CYLINDRICAL GRINDER

** THIS MACHINE HAS THE STANDARD

   TSCHUDIN WHEELHEAD, WHICH ALLOWS

   FOR USING A 12" DIAMETER x 2" WIDE

   GRINDING WHEEL **

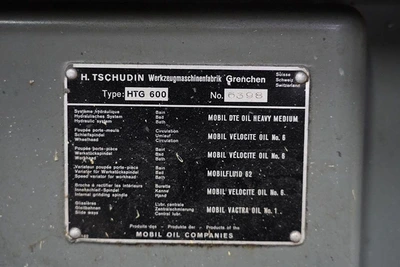

MODEL:  HTG-600    S/N: 63-98      NEW: 1963

MAXIMUM SWING OVER TABLE ............... 8"

NOMINAL DISTANCE BETWEEN CENTERS ....... 24"

MAXIMUM TABLE TRAVEL ................... 24-1/2"

SWIVEL TABLE GRADUATED TO ANGLE OF:

  TOWARD WHEELHEAD ..................... 7°

  AWAY FROM WHEELHEAD .................. 4°

INFINITELY VARIABLE TABLE SPEED,

 .................................. 0 TO 200" IPM

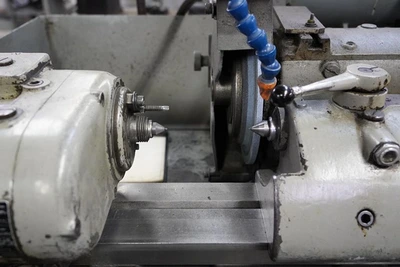

WHEELHEAD:

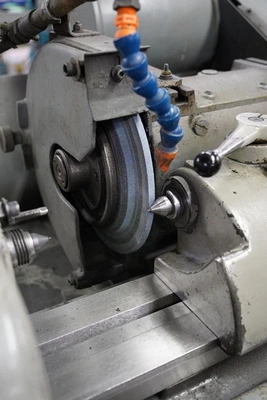

GRINDING WHEEL DIAMETER ................ 12"

GRINDING WHEEL WIDTH, MAXIMUM .......... 2"

HOLE ................................... 5"

GRINDING WHEEL SPINDLE SPEEDS,

 (3)....................... 1500, 1700 & 1900 RPM

RANGE OF PLUNGE FEED RATES,

 INFINITELY VARIABLE FROM ...... 0.0005" TO 0.200"

MAX. FEED FOR PLUNGE GRINDING ....... 0.03"

AUTO PICKFEED @ EACH TABLE REVERSAL

  MINIMUM INFEED INCREMENT, DIAMETER

  REDUCTION ........................... 0.000050"

RAPID ADVANCE/RETRACTION STROKE ....... 1-13/16"

MAXIMUM TRAVEL OF LOW SLIDE

 BY INFEED SCREWS ..................... 2"

RAPID ADVANCE/RETRACTION STROKE ....... 1-13/16"

MAXIMUM TRAVEL OF LOW SLIDE

 BY INFEED SCREWS ..................... 2"

TRAVEL OF UPPER SLIDE ................. 4- 3/4"

SWIVEL OF UPPER SLIDE,

 EITHER SIDE OF ZERO .................. 7°

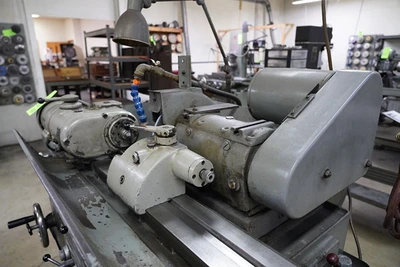

WORKHEAD:

  INFINITELY VARIABLE WORKHEAD

   SPINDLE SPEEDS ................ 65 TO 500 RPM

  TAPER OF SPINDLE ................... #4MT

  SPINDLE BORE ....................... 29/32"

  POWER OF MOTOR ..................... 0.4 H.P.

  TAPER OF WORK CENTER, WITH

   REDUCTION SLEEVE .................. #3MT

  WORKHEAD SWIVELS ................ 360 DEGREES

TAILSTOCK:

  TAPER OF WORK CENTER ............... #3MT

  TRAVEL OF SPINDLE .................. 3/4"

APPROXIMATE DIMENSIONS ....... 78" x 48" x 54"H

APPROXIMATE MACHINE WEIGHT ......... 4,700 LBS

EQUIPPED WITH:

WORKHEAD SPINDLE IS BOTH "LIVE" & "DEAD"

CENTER IN THE WORKHEAD

12" GRINDING WHEEL

COOLANT SYSTEM

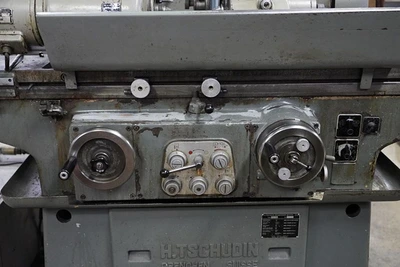

FULLY AUTOMATIC CYCLE W/SINGLE LEVER CONTROL:

  HYDRAULIC TABLE TRAVERSE

  AUTOMATIC INFEED @ EACH TABLE REVERSAL

  AUTOMATIC PLUNGE INFEED

  POWER RAPID WHEELHEAD POSITIONING

  SPARKOUT TIMER

CURRENTLY WIRED 3/60/220 VOLTS

** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **

** ORIGINAL PAINT, SUPERIOR CONDITION & APPEARANCE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
