USED 1989 Jones & Shipman 1311E, NEW 1989,

10" Swing 18" Centers Jones & Shipman 1311E, NEW 1989, OD GRINDER, 16" WHEEL, HYD. TABLE, AUTO INFEED, PLUNGE,

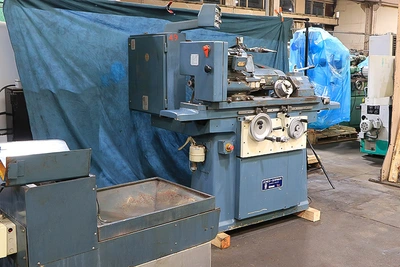

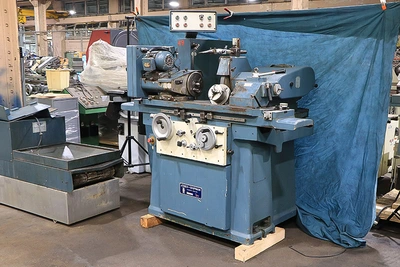

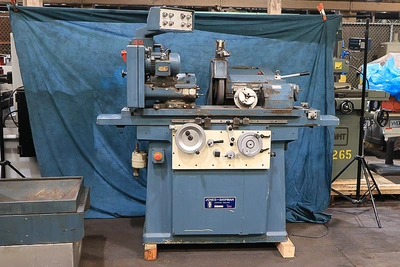

 10" X 18" JONES & SHIPMAN "HIGH PRECISION" PLAIN CYLINDRICAL GRINDER

                   "MADE IN ENGLAND"

MODEL: 1311-E     S/N: BO-16361     NEW: 1989

MAXIMUM SWING .................................. 10"

DISTANCE BETWEEN CENTERS ....................... 18"

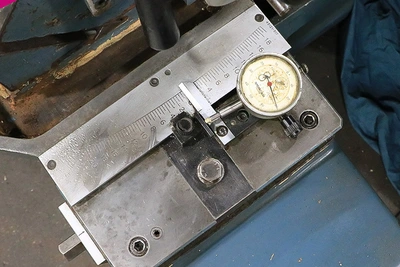

ADJUTMENT OF TABLE, CW & CCW ................... 20 DEGREES

LONGITUDINAL TABLE SPEED (HYDRAULIC) ........... 3" TO 180" IPM

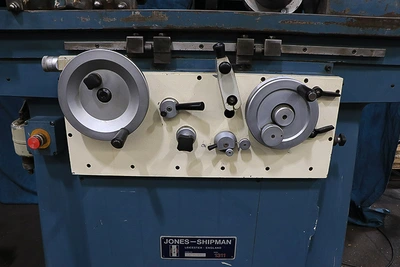

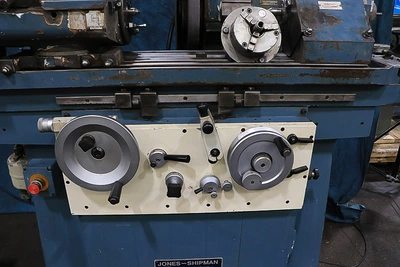

MANUAL TRAVERSE, HANDWHEEL PER REV. ............ 0.50"

FINE HAND TRAVERSE KNOB GRAD. .................. 0.0005"

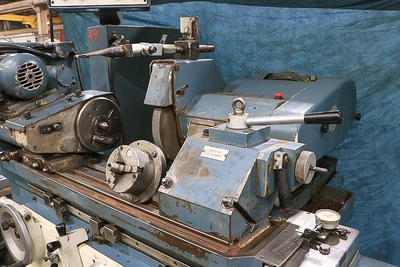

  WHEELHEAD:

CROSS FEED HANDWHEEL GRAD. ..................... 0.0002"

ONE DEPRESSION OF FINE FEED LEVER KNOB ......... 0.0001"

AUTO INFEED @ TABLE REVERSALS .................. 0.0001" TO .0006"

FEED @ REVERSAL OF TABLE, REDUCTION IN DIA. .... 0.0002" TO .0012"

CONTINUOUS (PLUNGE) INFEED RATE ................ 0.0001" TO .0006"

(PLUNGE) REDUCTION IN DIA. FROM ................ 0.004" TO .072" IPM

MAX. RANGE OF PLUNGE FEED ...................... 0.8 REV. OF THE HANDWHEEL

WHEEL SIZE ..................................... 16" DIA., x 1" TO 3"W, x 5"B

WHEEL SPEEDS (2) ............................... 1,550 & 1,990 RPM

WHEELHEAD MOTOR ................................ 5.5 HP

WORKHEAD SPINDLE SPEEDS (6) .................... 40 TO 320 RPM

WORKHEAD SPINDLE TAPER ......................... #3MT

APPROX. MACHINE DIMS. .......................... 66"L-R x 58"D x 69"H

APPROX. MACHINE WEIGHT ......................... 4,000 LBS.

MACHINE FEATURES:

HYDRAULIC OPERATION FEATURING:

- POWER TABLE TRAVERSE

- AUTO INFEED

- PLUNGE INFEED

FINE FEED MECHANISM FOR INFEED

FINE FEED KNOB FOR TABLE TRAVERSE

DUAL LIVE/DEAD WORKHEAD SPINDLE

EQUIPPED WITH:

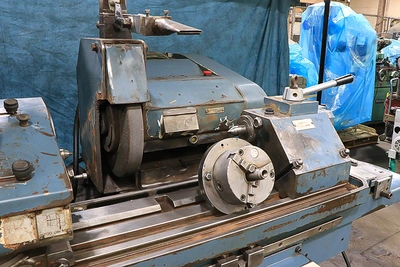

16" DIAMETER GRINDING WHEEL.  THE WHEEL ON THIS MACHINE IS 2"W.

 THIS MACHINE CAN USE UP TO A 3"W WHEEL.

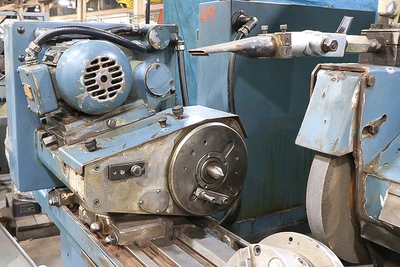

WORKHEAD HAS A BACKING PLATE AND A CHUCK MOUNTED ON THE BACK PLATE

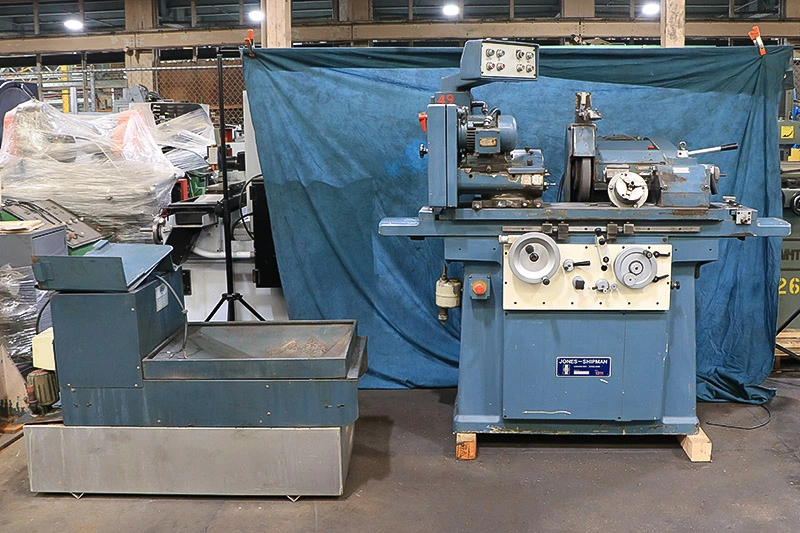

COOLANT SYSTEM

5.5 H.P./3/60/575 VOLT WHEELHEAD MOTOR

MACHINE IS WIRED FROM THE FACTORY FOR 3/60/575 VOLTS

TRANSFORMER PROVIDED

LINK TO VIDEO: https://youtu.be/PY2y33da56Q

** INSPECT UNDER POWER IN OUR NEW JERSEY **

**** ORIGINAL PAINT - VERY ACCURATE MACHINE ****

**** SUPERIOR CONDITION & APPEARANCE ****

FOR MORE INFORMATION: Call Andy at 973-497-7600
