USED 1984 Kellenberger 1000U, 1984, I.D. ATTACH., FULL AUTO CYCLE,
Overview
Description
9.8" Swing 39.4" Centers Kellenberger 1000U, 1984, I.D. ATTACH., FULL AUTO CYCLE, OD GRINDER, ACCESSORIES
Specifications

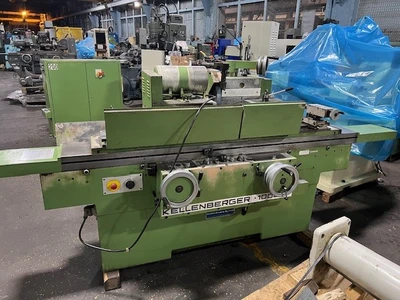

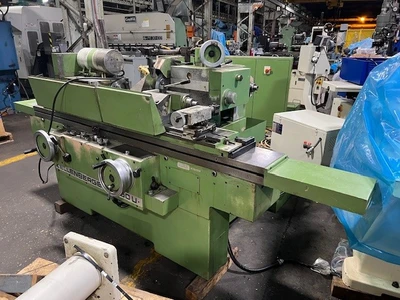

9.8" x 39.4" KELLENBERGER "SWISS"
"SUPER-PRECISION" UNIVERSAL
I.D./O.D. CYLINDRICAL GRINDER
** CAPABLE OF SWING LARGER PARTS, WITH OPTIONAL
RISER BLOCKS, UP TO 19 5/8" SWING.
RISER BLOCKS ARE AVAILABLE FROM US,
"MACHINERY VALUES", FOR ADDITIONAL DOLLARS.
WE HAVE THE BLOCKS IN STOCK!! **
** MACHINE IS EQUIPPED TO GRIND O.D.,
I.D & FACE GRINDING TASKS **

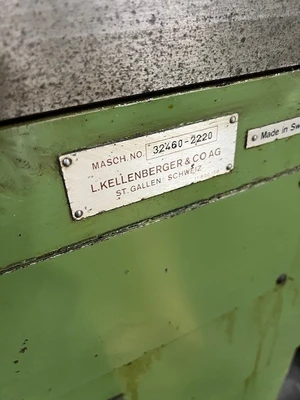

MODEL: 1000U S/N: 32460-2220 MFG. 1984
DISTANCE BETWEEN CENTERS .................. 39- 3/8"
DISTANCE BETWEEN CENTERS W/TAILSTOCK
OVERHANGING ............................. 47- 1/4"
HEIGHT OF CENTERS, WITH REMOVABLE RISERS .. 9- 27/32"
STANDARD SWING WITHOUT RISERS ............. 9.8"
MAX. SWING WITH FACTORY RISERS ............ 19.625"
TABLE:
LONGITUDINAL TABLE TRAVEL ................. 51- 13/16"
LONGITUDINAL TABLE TRAVEL PER TURN
OF HANDWHEEL:
COARSE .................................. 25/32"
FINE .................................... 3/32"
LONGITUDINAL TABLE SPEED (HYDRAULIC) ...... 0.6 - 240" IPM
TABLE SWIVELS ............................... 9 DEGREES
REVERSING DWELL ........................... 0 TO 5 SECONDS
GRINDING WHEEL INFEED:
1 GRADUATION OF FEED SCALE ................ 0.0002"
AUTOMATIC FEED, MAXIMUM ................... 0.036"
AUTO. INFEED PER TABLE REVERSAL ......... 0.00005" TO 0.0012"
INFEED FOR PLUNGE GRINDING .............. 0.00004" TO 0.002"
MICROMETER STOP, 1 GRADUATION ............. 0.00005"
UNIVERSAL GRINDING SPINDLE HEAD:
TRANSVERSE MOVEMENT OF WHEEL SLIDE ........ 11-1/4"
HYDRAULIC RAPID WHEEL SLIDE
ADVANCE/RETRACTION STROKE ............... 1-37/64"
GRINDING WHEEL SPEEDS (4) ........... 1500, 1700, 2200& 3600 RPM
GRINDING WHEEL FOR CYLINDRICAL
GRINDING .............................. 16" X 2" X 5"
GRINDING WHEEL (SURFACE GRINDING) ...... 10" X 3/4" X 3"
SWIVEL OF GRINDING HEAD W/LOCKING EVERY
90° ...................................... 270°
VERTICAL MOTION OF GRINDING SPINDLE HEAD,
HEIGHT OF CENTERS ...................... 4-59/64" TO 13-25/32"
WORKHEAD:
INFINIT. VARIABLE SPINDLE SPEEDS .......... 10 - 400 RPM
WORKHEAD SWIVELS .......................... 360°
INSIDE TAPER OF WORK SPINDLE .............. #5MT
APPROXIMATE FLOOR SPACE REQUIRED ......... 106" x 64" x 66"H
APPROXIMATE MACHINE WEIGHT .................. 6,500 LBS
MACHINE FEATURES:
HYDRAULIC OPERATION FEATURING:
-SINGLE LEVER CONTROL
-INFINITELY VARIABLE TABLE TRAVERSE
-AUTOMATIC INFEED
-PLUNGE INFEED
-RAPID WHEEL ADVANCE & RETRACTION
-SPARKOUT TIMER
ADJUSTABLE CENTER HEIGHT FEATURE
MACHINE HAS THE FOLLOWING:
THREE WHEELHEAD MACHINE, PRESENTLY COMES WITH THE O.D.,
I.D. GRINDING, FACE GRINDING WHEEL OPTIONS.

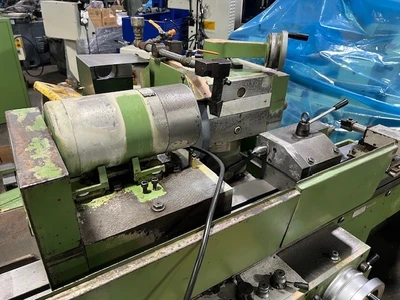

I.D. ATTACHMENT, FACTORY MOUNTED I.D. BLOCK, ON THE BACK
OF THE WHEELHEAD. BUYER GETS TO CHOOSE,
ONE OF THE TWO I.D. GRINDING SPINDLES THAT
ARE SHOWN IN THE PHOTOS.

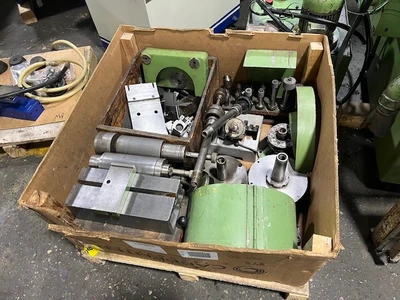

ACCESSORIES:
ASSORTMAENT OF I.D. SPINDLE QUILLS WITH WHEELS
TWO CHUCKS, EACH HAS A #5MT ADAPTOR
DRAW BARS
TABLE MOUNTED WHEEL DRESSER
COOLANT SYSTEM
3/60/230-460 VOLT ELECTRICS
MACHINE IS PRESENTLY WIRED FOR 3/60/460 VOLTS
SPECIAL NOTE:
RISERS AVAILABLE FOR ADDITIONAL DOLLARS,
TO INCREASE THE SWING.
** EXCELLENT CONDITION AND APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ **
FOR MORE INFORMATION: Call Andy at 973-497-7600
