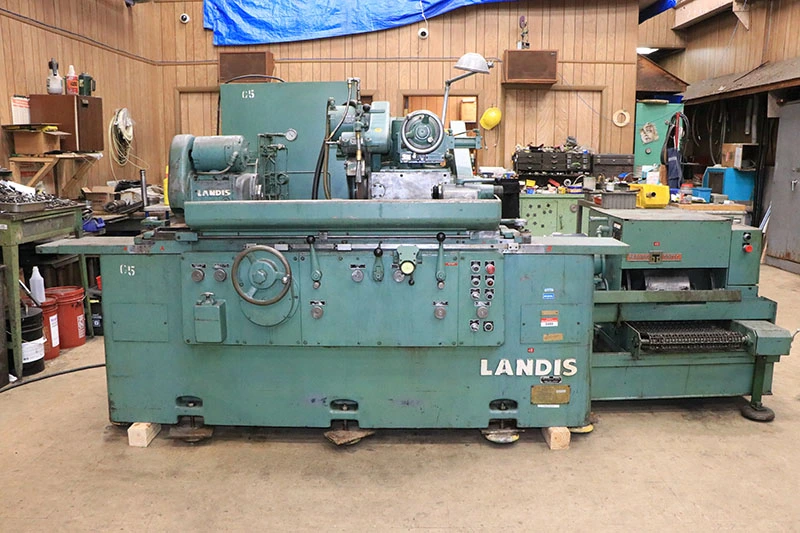

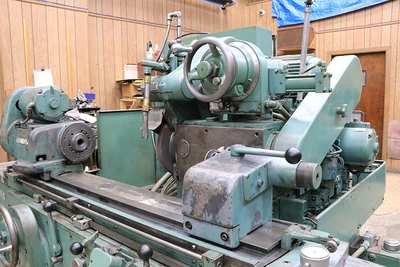

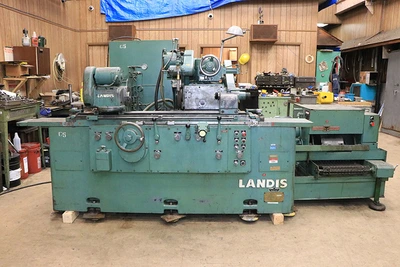

USED 1971 Landis 2R, 1971, ORIGINALLY FROM THE NAVY!,

10" Swing 36" Centers Landis 2R, 1971, ORIGINALLY FROM THE NAVY!, OD GRINDER, SWING DOWN I.D., ACCESSORIES

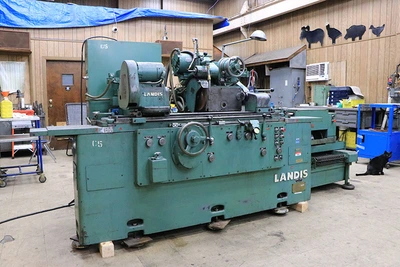

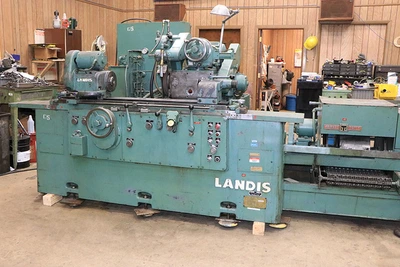

   10" X 36" LANDIS UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER

** HOUR METER READS 2,963 HOURS ON! **

MODEL: 2R       S/N: 833-87       NEW: 1971

MAXIMUM SWING OVER TABLE................. 10-31/32"

DISTANCE BETWEEN CENTERS................. 36"

MINIMUM DIAMETER WHEEL TO GRIND TO

ZERO DIAMETER WORK ON CENTERS............ 9"

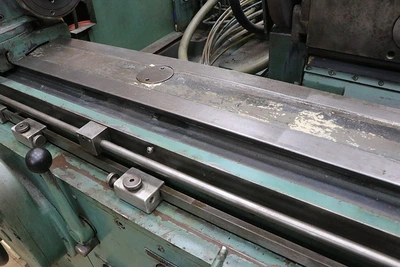

TABLE:

SWIVEL TABLE GRADUATED (IN. PER FOOT).... 3-1/2"

SWIVEL TABLE GRADUATED (DEG. INCLUDED

ANGLE)................................... 16°

  WORK CARRIAGE:

TRAVERSE SPEED........................... 2 TO 240 I.P.M.

TRAVERSE PER TURN OF HANDWHEEL: SLOW..... 0.100"

                               FAST...... 1.000"

GRINDING ................................ 12" DIA. x 1"W x 5"

SWIVEL RANGE: UPPER...................... 180°

LOWER.................................... 60° CW

                                          30° CCW

(2) GRINDING WHEEL SPINDLE SPEEDS........ 1720-2185 R.P.M.

MAX./MIN. DISTANCE WHEEL CENTERLINE

TO WORK CENTERLINE....................... 15-1/2"/1-1/2"

WORK DIAMETER REDUCTION PER REVOLUTION

  OF HANDWHEEL........................... 0.100"

AUTOMATIC INFEED @ TABLE REVERSAL,

  ON DIA., HYDRAULIC INFEED MACHINE ..... 0.0002" TO .004"

AUTOMATIC PLUNGE INFEED ................. YES

RAPID (POWER) WHEELHEAD STROKE .......... 1- 1/2"

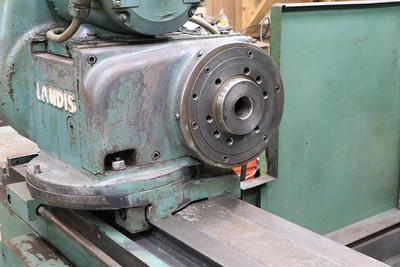

  MOTORIZED WORKHEAD AND TAILSTOCK:

INFINITELY VARIABLE WORKHEAD............. 30-150 RPM AND

                                          120-600 RPM

WORKHEAD TAPER........................... #10 JARNO

DIA. OF HOLE, WORKHEAD SPINDLE........... 1"

WORKHEAD SWIVEL RANGE.................... 120°

WORKHEAD SPINDLE NOSE.................... 5A-2

TAILSTOCK TAPER.......................... #6 JARNO

APPROX. WEIGHT .......................... 7,200 LBS.

APPROX. FLOOR SPACE REQUIRED FOR OPS. ... 64" x 129"

EQUIPPED WITH:

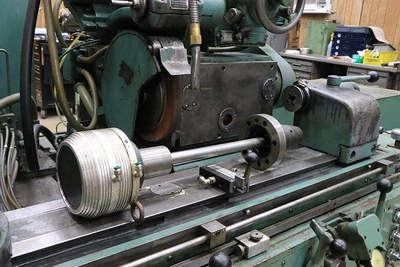

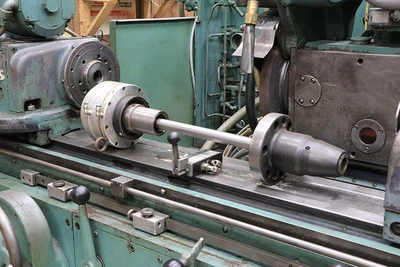

SWING DOWN INTERNAL GRINDING ATTACHMENT WITH LANDIS

  18,000 RPM I.D. GRINDING SPINDLE

12" x 1" x 5" GRINDING WHEEL

PNEUMATIC COLLET ATTACHMENT, WITH COLLET

BARNES COOLANT SYSTEM, WITH BOTH

  MAGNETIC SEPARATOR & PAPER FILTRATION

MACHINE FEATURES:

HYDRAULIC OPERATION FEATURING:

-AUTO TABLE TRAVERSE

-AUTO INFEED/PICK FEED AT TABLE REVERSALS

-AUTO PLUNGE INFEED

-POWER RAPID WHEELHEAD ADVANCE & RETRACTION

-SPARKOUT TIMER

DUAL LIVE/DEAD HEADSTOCK SPINDLE

ELECTRONIC SPEED CONTROL FOR WORKHEAD

BIJUR ONE-SHOT LUBRICATION SYSTEM FOR WHEELHEAD

5 H.P./230-460 VOLT GRINDING WHEELEHAD MOTOR

ELECTRICAL CABINET ON MACHINE, NOT SEPARATE

MACHINE IS PRESENTLY WIRED FOR 460 VOLTS/3/60 ELECTRICS

SPECIAL NOTE:

THIS MACHINE WAS ORIGINALLY FROM THE NAVY.

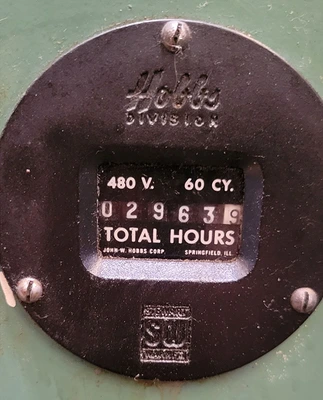

HOUR METER READS 2,963.9 HOURS ON TIME.  VERY LOW!

** INSPECT UNDER POWER IN HARRISON, NJ WAREHOUSE **

** EXCELLENT CONDITION & APPEARANCE - ORIGINAL PAINT **

FOR MORE INFORMATION: Call Andy at 973-497-7600
