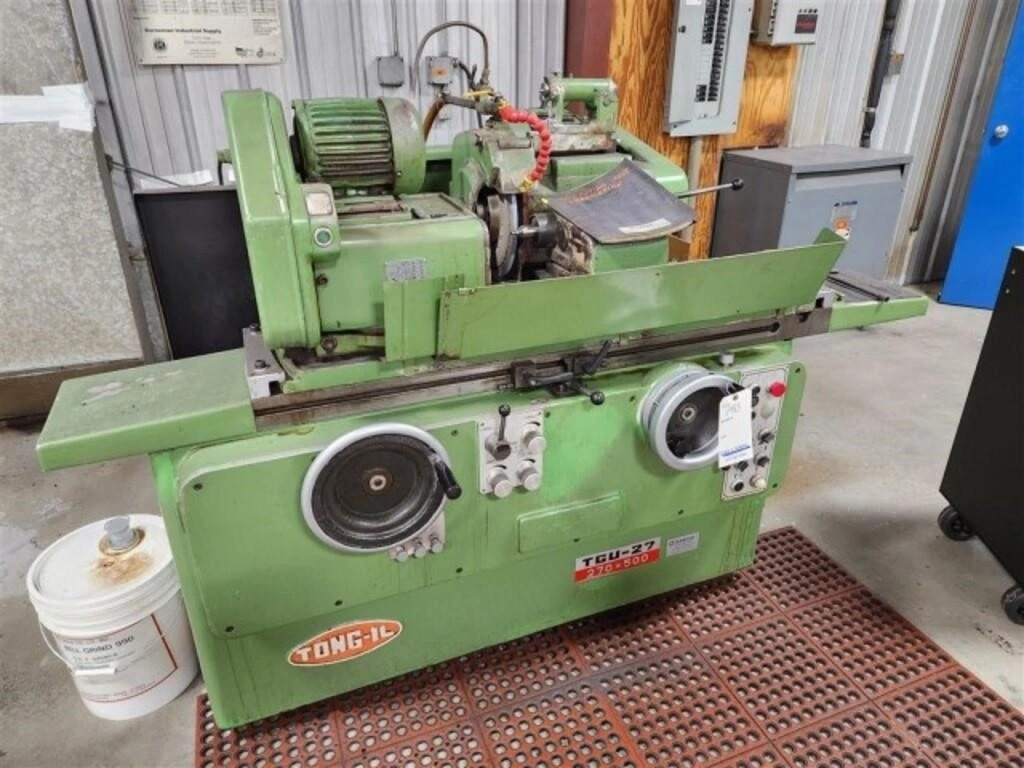

USED 1988 Tongil TGU-27, 1988, HYD. TABLE, POWER RAPID WHEEL POS.

10.6" Swing 20" Centers Tongil TGU-27, 1988, HYD. TABLE, POWER RAPID WHEEL POS. OD GRINDER

10.6" X 20" TONG-IL

(MADE IN SOUTH KOREA)

UNIVERSAL CYLINDICAL GRINDER

MODEL:  TGU-27      NEW: 1988

SPECIFICATIONS:

SWING OVER TABLE: 10.6″

GRINDING LENGTH BETWEEN CENTERS: 20″

WORKPIECE WEIGHT(MAX): 286 LBS

WORKHEAD:

SWIVEL OF WORKHEAD: 360³  (120° GAUGED)

WORKHEAD SPEEDS (6 STEPS):

 46, 68, 100, 152, 238, & 360 RPM

WORKHEAD CENTER TAPER: M.T. #4

DIAMETER OF SPINDLE HOLE: 0.77″

WORK TABLE:

LONGITUDINAL TRAVERSE,

MANUAL (MAX): 25″

HYDRAULIC (MAX): 24.4″

HYDRAULIC (MIN): 0.3″

AUTOMATIC LONGITUDINAL TRAVERSE: 2 – 157 IN/MIN

TRAVERSE PER HANDWHEEL REVOLUTION: 0.25″

SWIVEL ANGLE INCLUDED:

RIGHT SIDE OF TABLE MOVES 11°  TOWARD THE

 WORKHEAD & 5° AWAY FROM THE WORKHEAD

WHEELHEAD:

SWIVEL OF WHEELHEAD: 30° EACH DIRECTION

  (60° TOTAL)

TRAVERSE ON SCREW MAXIMUM: 6.3″

RAPID TRAVERSE (HYDRAULIC MAXIMUM): 1.57″

WORKPIECE RED, PER REV HANDWHEEL: 0.08″

CROSS FEED HANDWHEEL GRADUATIONS: 0.0002″

WORK DIAMETER REDUCTION PER ONE

DEPRESSION OF FINE ADVANCE BUTTON: .0002″

SPINDLE SPEEDS (2): 1660 & 1880 RPM

GRINDING WHEEL (STANDARD SIZE)

DIAMETER X THICKNESS X BORE: 14″ X 1.5″ X 5″

GRINDING WHEEL WIDTH RANGE: 1″ – 2″

TAILSTOCK:

TRAVEL OF TAILSTOCK SPINDLE: 1.18″

TAILSTOCK SPINDLE TAPER: M.T. #4

FLUID CAPACITIES:

WHEELHEAD LUBRICATION: 2.8 GALLONS

HYDRAULIC SYSTEM: 14.25 GALLONS

CUTTING FLUID: 21 GALLONS

ELECTRIC MOTOR POWER:

WHEELHEAD: 5 HP

WORKHEAD: 0.4 HP

HYDRAULIC PUMP: 1 HP

WHEELHEAD LUBRICATION PUMP: 0.27 HP

CUTTING FLUID PUMP: 0.16 HP

EQUIPPED WITH:

HYDRAULIC TABLE TRAVERSE

HYDRAULIC POWER RAPID WHEELHEAD ADVANCE & RETRACTION

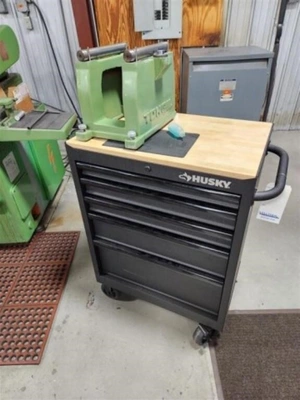

WHEEL BALANCING STAND

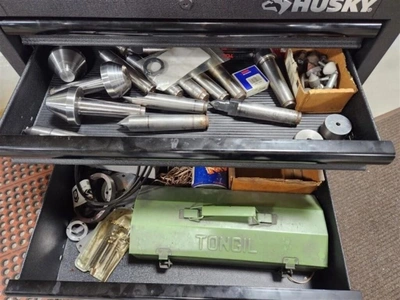

EXTRA CENTERS

COOLANT SYSTEM

ELECTRICS: 208 VOLTS, 3 PH, 60 CYC

** ORIGINAL PAINT - VERY CLEAN - EXCELLENT CONDITION **

** INSPECT UNDER POWER IN OUR HARRIOSN, NJ WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
