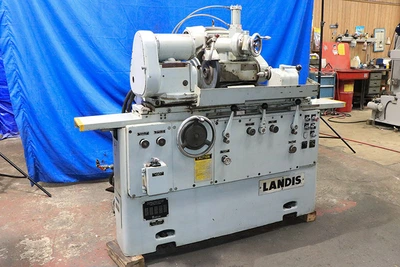

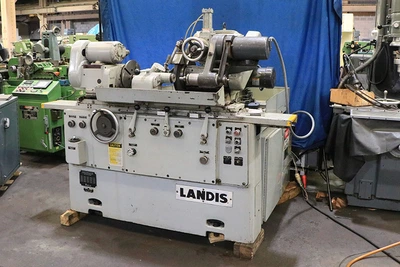

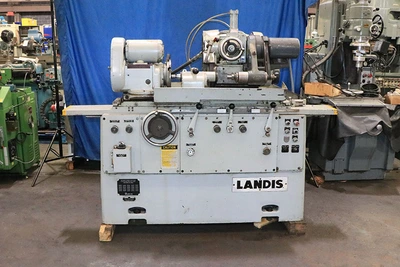

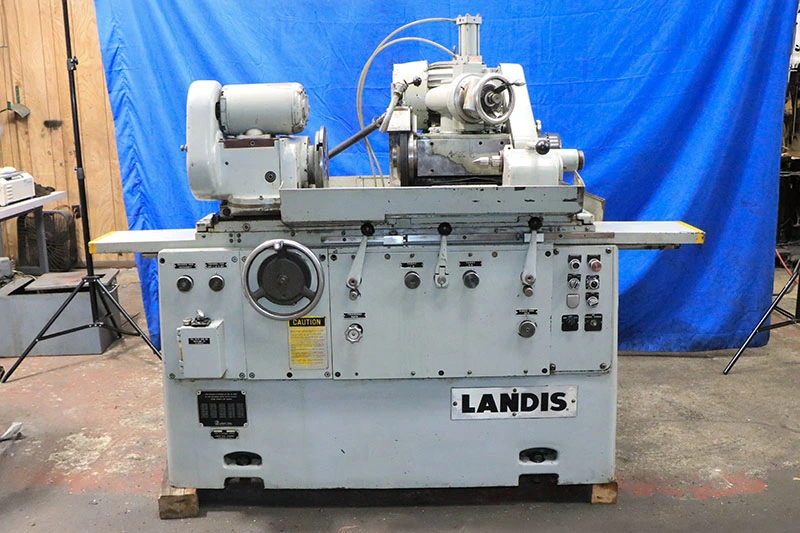

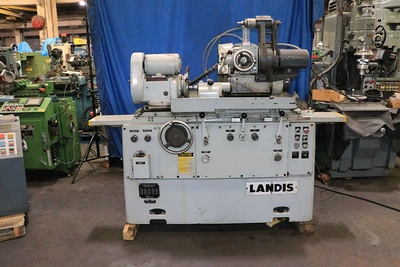

USED 1991 Landis 1R, I.D. ATTACH., 1991, FULL AUTO CYCLE,

10" Swing 20" Centers Landis 1R, I.D. ATTACH., 1991, FULL AUTO CYCLE, OD GRINDER, HYD. TABLE, AUTO INFEED, PLUNGE, RAPID, SPARKOUT

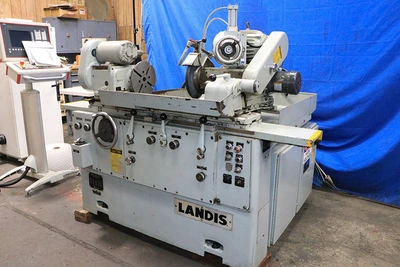

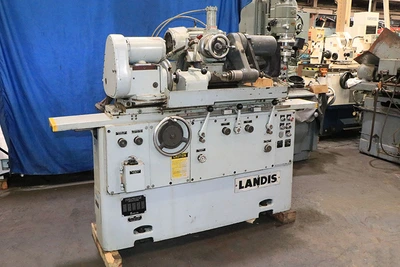

         10" X 20" LANDIS I.D./O.D.

  HYDRAULIC UNIVERSAL CYLINDRICAL GRINDER,

  WITH SWING DOWN I.D. GRINDING ATTACHMENT

        AND I.D. GRINDING SPINDLE

        **** MADE IN USA ****

MODEL: 1R     S/N: 905-30      NEW: 1991

CAPACITY:

NOMINAL SWING OVER TABLE .................. 10"

MAXIMUM SWING OVER TABLE .................. 10-7/8"

NOMINAL DISTANCE BETWEEN CENTERS .......... 20"

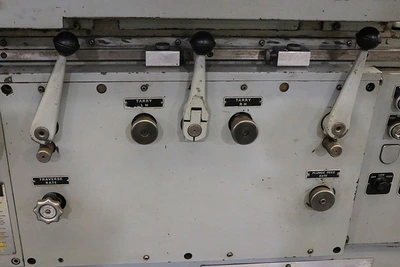

TABLE:

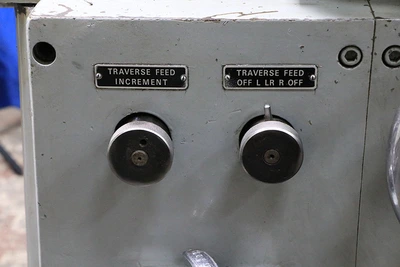

HYDRAULIC TABLE TRAVERSE ............... 2" TO 240" IPM

TRAVERSE PER TURN OF HANDWHEEL ............ 0.200"

TRAVERSE HANDWHEEL GRADUATIONS ............ 0.001"

SWIVEL TABLE GRADUATED ................. 20°, 4" PER FOOT

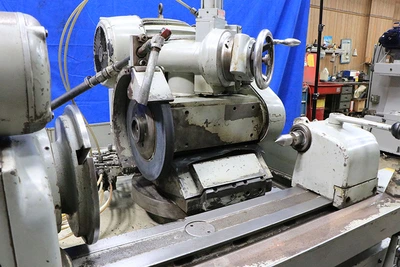

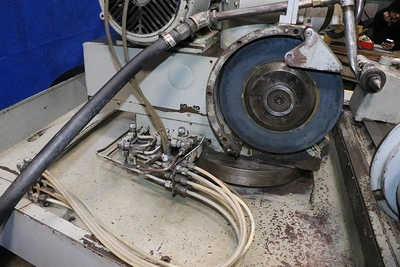

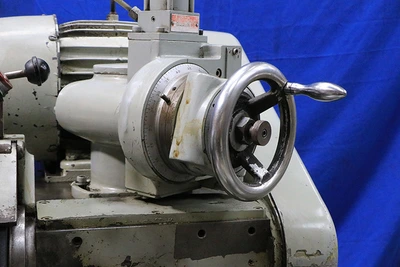

WHEELHEAD:

WHEELHEAD SWIVELS LEFT & RIGHT OF CENTER .. 90°

WHEEL SIZE ................................ 12" DIAMETER

MAXIMUM WIDTH, FULL WHEEL ................. 3"

MAXIMUM HYDRAULIC INFEED - ON DIAMETER .... 0.090"

RAPID INFEED STROKE ....................... 1"

MINIMUM FEED GRADUATIONS - ON DIAMETER .... 0.000050"

WORK DIAMETER REDUCTION PER REVOLUTION

 OF HANDWHEEL ............................. 0.100"

WORK DIAMETER REDUCTION PER REVOLUTION

 OF FINE FEED KNOB ........................ 0.001"

WHEELHEAD MOTOR ........................... 3 HP

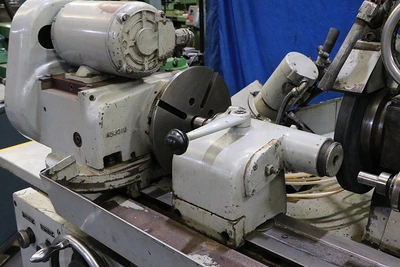

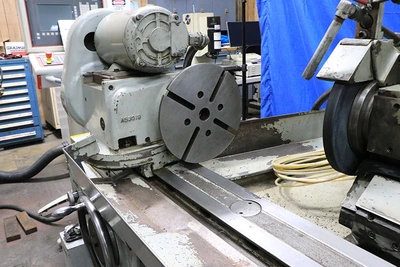

WORKHEAD:

WORKHEAD SWIVELS TOWARD WHEELHEAD ......... 90°

WORKHEAD SWIVELS AWAY FROM WHEELHEAD ...... 30°

WORKHEAD SPINDLE SPEEDS (6) ............ 60 TO 600 RPM

WORKHEAD SPINDLE NOSE ..................... A2-5"

WORKHEAD MOTOR ............................ 1/4 HP

APPROXIMATE WEIGHT ................. 4,150 LBS

APPROXIMATE DIMS., FOR OPS ......... 8'L x 4'W x 6'6"HT

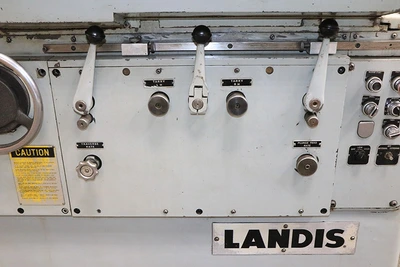

MACHINE FEATURES:

HYDRAULIC TABLE TRAVERSE

AUTO INFEED @ TABLE REVERSALS

AUTO PLUNGE FEED

POWER RAPID WHEELHEAD ADVANCE & RETRACTION

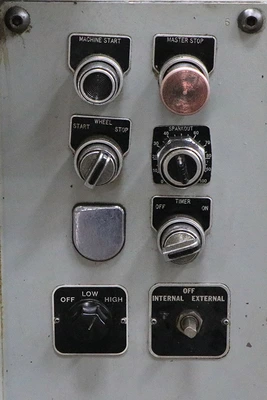

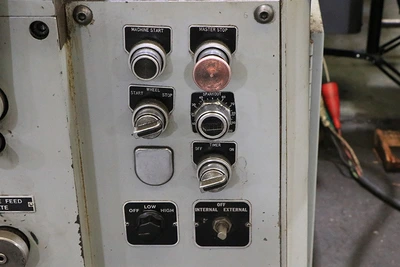

SPARKOUT TIMER

DUAL LIVE/DEAD WORKHEAD SPINDLE

HARD FILM MICROSHERE WHEEL SPINDLE BEARINGS

CARRIAGE AND WHEELHEAD WAYS ARE AUTOMATICALLY LUBRICATED

MACHINE MOTORS ARE 3/60/230-460 VOLT

EQUIPPED WITH:

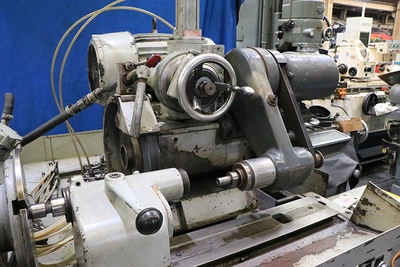

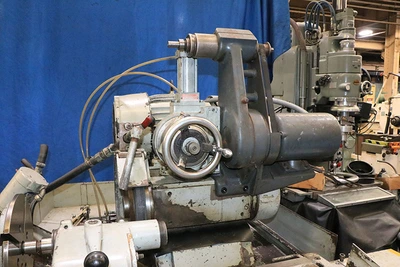

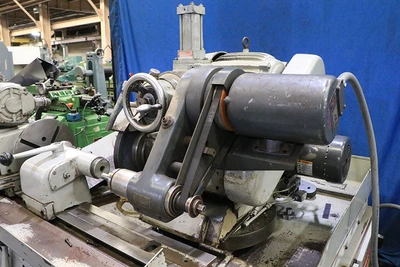

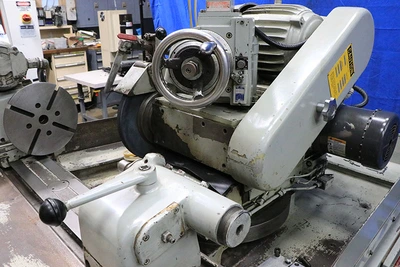

SWING DOWN I.D. GRINDING ATTACHMENT

I.D. GRINDING SPINDLE

FACE PLATE

DRESSER

COOLANT SYSTEM IN THE BASE

MACHINE IS WIRED FOR 460 VOLTS PRESENTLY

LINK TO VIDEO:

https://youtu.be/SKeLHQF9AhY?si=34i8jLTC-ba2z0hx

** "EXCEPTIONAL" CONDITION & APPEARANCE **

**** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE ****

FOR MORE INFORMATION: Call Andy at 973-497-7600
