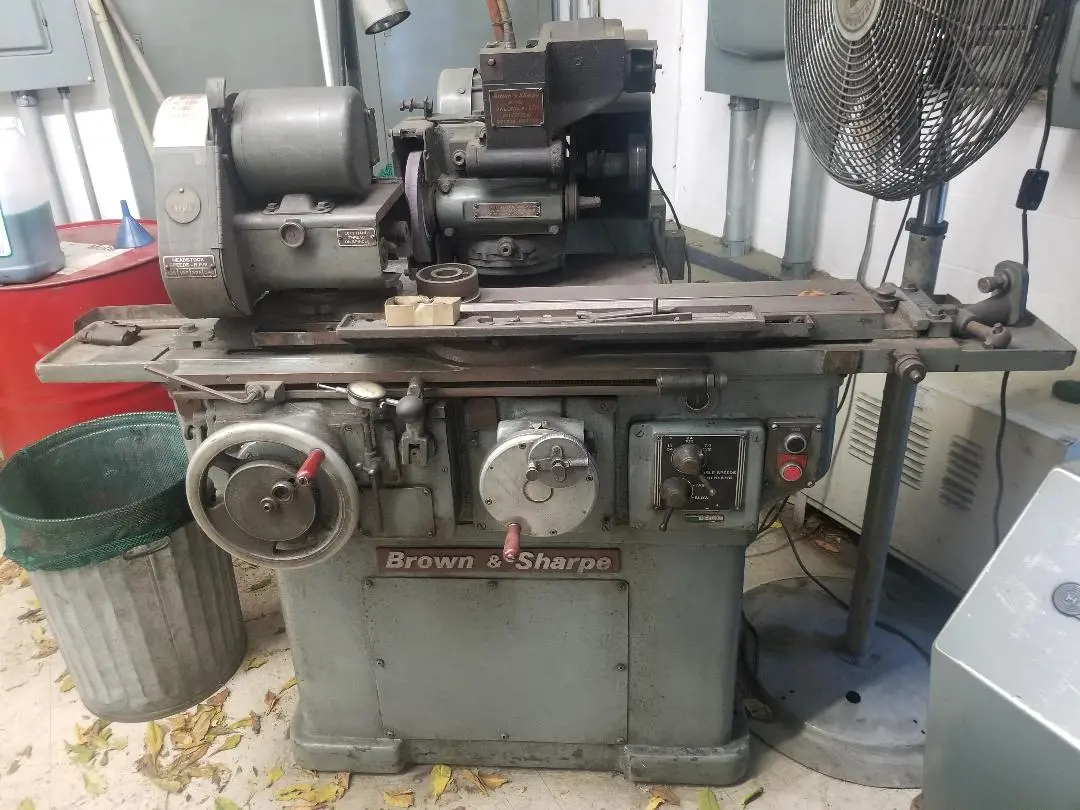

USED 1978 Brown & Sharpe 814 U VALUEMASTER, I.D. ATT., I.D. SPINDLE,

8" Swing 14" Centers Brown & Sharpe 814 U VALUEMASTER, I.D. ATT., I.D. SPINDLE, OD GRINDER, MANY ACCESSORIES

  8" x 14" BROWN & SHARPE "PRECISION" UNIVERSAL

   I.D./O.D. CYLINDRICAL GRINDER

    ******* MADE IN USA *******

MODEL: 814U VALUEMASTER   S/N: 525-8144-2592    NEW: 1978

  CAPACITY:

- GRINDS WORK UP TO ........................... 8" DIAMETER

- GRINDS LENGTH ............................... 14"

- DISTANCE BETWEEN CENTERS .................... 24"

  WHEELHEAD:

- GRINDING WHEEL SIZE ......................... 5", 7" OR 10" DIAMETER

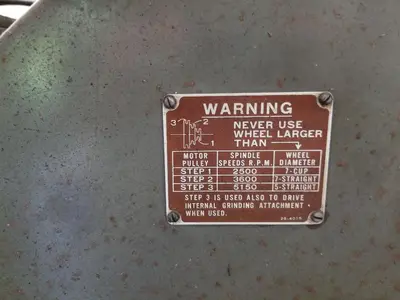

- GRINDING WHEEL SPEEDS (3) ................... 2500, 3600 & 5150 RPM

- WHEELHEAD TRAVEL ............................ 9- 1/4"

- WHEELHEAD SWIVELS, LEFT & RIGHT ............. 110 DEGREES

- CROSS FEED HANDWHEEL, GRAD. ................. 0.0001"

- CROSS FEED, SMALL HANDWHEEL INCREMENTS ...... 0.00001"

SLIDING TABLE:

- MODEL "P" TRAVERSE BY HAND OR POWER ......... YES

- POWER TABLE TRAVERSE, (6) SPEEDS ............ 7- 3/4", 13", 24", 32"

                                                 54 AND 100" IPM

- TABLE TRAVEL PER REV. OF HANDWHEEL .......... SLOW 1/4"

                                                FAST 6- 1/4"

  SWIVEL TABLE:

- ANGULAR SETTING TO LEFT & RIGHT ............. 90 DEGREES

- FINE SCREW ADJ. FOR SETTING TAPERS UP TO .... 3" PER FT.

- TABLE TRAVEL ................................ 22"

- TRAVEL PER REV. OF HANDWHEEL ................ 1/4" SLOW

                                                6-1/4" FAST

  HEADSTOCK:

- SWIVELS LEFT & RIGHT ........................ 100 DEGREES

- SPINDLE SPEEDS, (4) ......................... 128, 196, 325 & 540 RPM

- SPINDLE TAPER ............................... B & S #7

- MOTO ........................................ 1/6 H.P.

APPROX. DIMS. ................................. 68" x 55" x 65"H

APPROX. WIGHT ................................. 2,900 LBS.

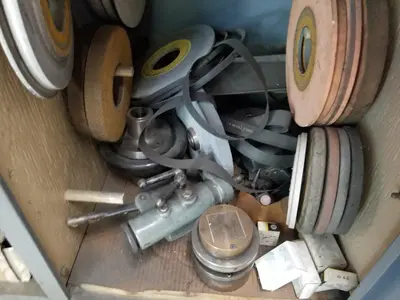

  EQUIPPED WITH:

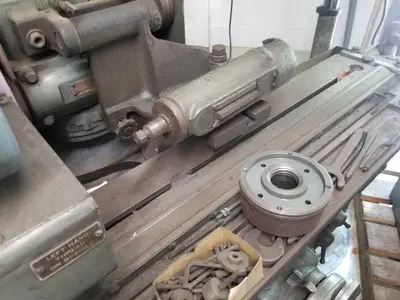

SWING DOWN I.D. GRINDING ATTACHMENT WITH B & s I.D. GRINDNING SPINDLE

POWER TABLE TRAVERSE

DOUBLE ENDED WHEEL SPINDLE

CURRENTLY SET-UP WITH 7" GRINDING WHEEL

DUAL LIVE/DEAD HEADSTOCK SPINDLE

COLLET CHUCK

FINE CROSS FEED KNOB (.0001" ON WORK DIA.)

POSITIVE STOP OPTION FOR CROSS FEED

ANTI-FRICTION BEARING WHEELHEAD SPINDLE

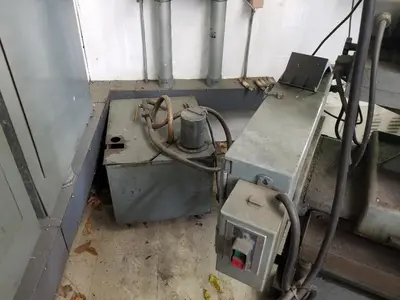

COOLANT PUMP & PIPING

1 H.P. 3/60/230-460 VOLT WHEELHEAD MOTOR

1/6 H.P. WORKHEAD MOTOR

MACHINE IS PRESENTLY WIRED FOR 460 VOLTS

** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **

** EXCELLENT CONDITION & APPEARANCE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
