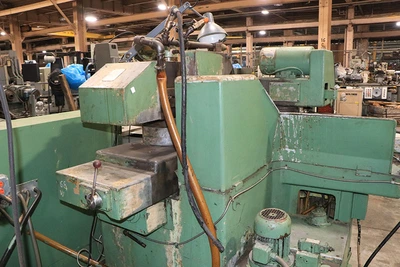

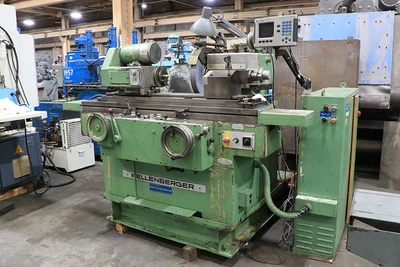

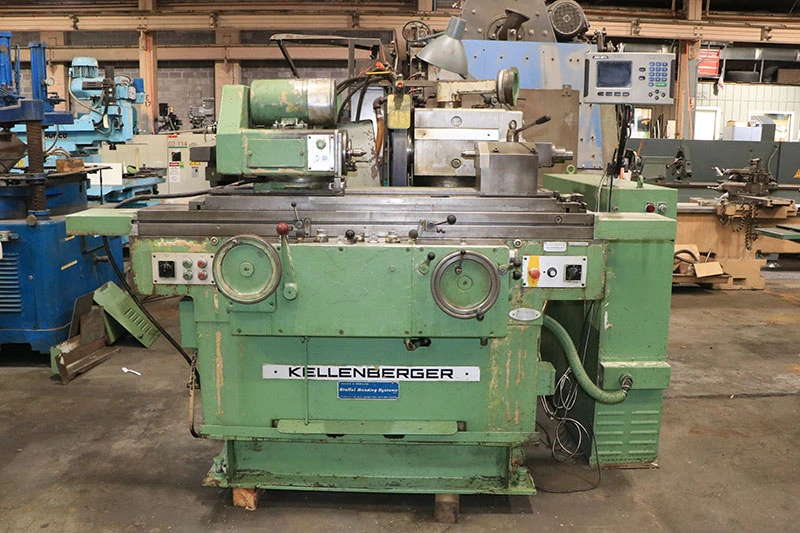

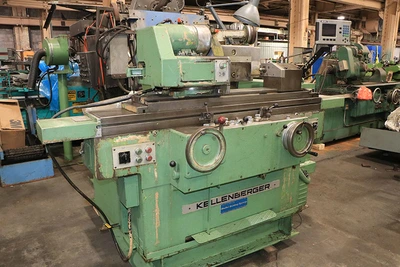

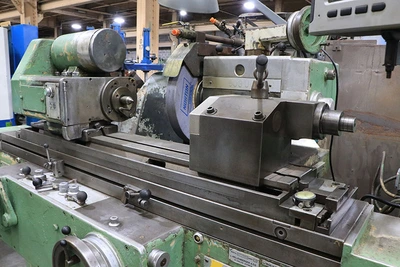

USED 1977 Kellenberger 600U, NEW 1977, OD/ID/FACE GRINDING CAPABILITY

9.8" Swing 24" Centers Kellenberger 600U, NEW 1977, OD/ID/FACE GRINDING CAPABILITY OD GRINDER, HYD. TABLE, AUTO INFEED, PLUNGE, RAPID, SPKT TIMER

   9.8" x 23.6" KELLENBERGER "SWISS" "HIGH PRECISION"

      UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER

*** THIS MACHINE IS CAPABLE OF SWINGING 19.8"

             WITH RISER BLOCKS

      THAT CAN BE PURCHASED FROM US!!  ***

MODEL:  600U     S/N: 457-1944          NEW: 1977

MAX. SWING AS PRESENTLY SET UP ............ 9.8"

MAX. SWING w/FACTORY RISERS ............... 19.8"

DISTANCE BETWEEN CENTERS (NOMINAL)......... 23- 5/8"

DISTANCE BETWEEN CENTERS W/TAILSTOCK

  OVERHANGING ............................. 29- 1/2"

TABLE:

LONGITUDINAL TABLE TRAVEL ................. 35- 7/16"

LONGITUDINAL TABLE TRAVEL PER

  TURN OF HANDWHEEL:

  COARSE .................................. 0.8"

  FINE .................................... 0.1"

LONGITUDINAL TABLE SPEED (HYDRAULIC) ...... 0 TO 20' FPM

TABLE SWIVELS ............................. 11 DEGREES

REVERSING DWELL ........................... 0 TO 5 SECONDS

GRINDING WHEEL INFEED:

  1 GRADUATION OF FEED SCALE .............. 0.0002"

  AUTOMATIC HYDRAULIC INFEED, ............. 0 TO 0.037"

  AUTO INFEED PER TABLE REVERSAL .......... 0.00004" TO 1.18"

  PLUNGE GRINDING: INFEED SPEED ........... 0.00001 TO .0001 IN/S

  MICROMETER STOP, 1 GRADUATION ........... 0.00005"

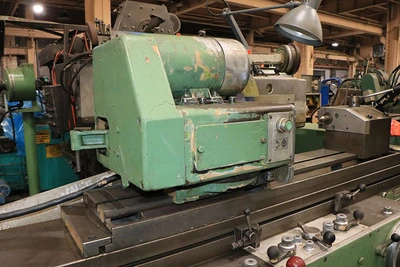

UNIVERSAL GRINDING SPINDLE HEAD:

  TRANSVERSE MOVEMENT OF WHEEL SLIDE ...... 8- 21/32"

  INFEED PER REV. OF HANDWHEEL:  COARSE ... 0.3"

                                 FINE ..... 0.04"

  HYDRAULIC RAPID WHEEL SLIDE

   ADVANCE/RETRACTION STROKE .............. 1-9/16"

  GRINDING WHEEL SPEEDS ................... 1500, 1700, 2200 RPM

  GRINDING WHEEL FOR CYLINDRICAL

   GRINDING ............................... 16" X 2" X 5"

  GRINDING WHEEL (SURFACE GRINDING)........ 9" X 1/2" X 3"

  SWIVEL OF GRINDING HEAD

   W/LOCKING EVERY 90 DEGREES ............. 270 DEGREES

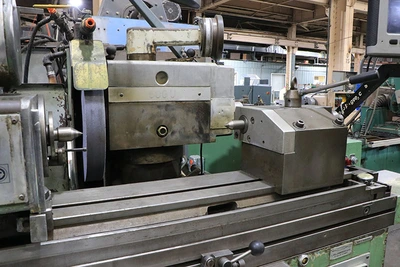

WORKHEAD:

  INFINIT. VARIABLE SPINDLE SPEEDS ........ 6 - 600 RPM

  WORKHEAD SWIVELS ........................ 360 DEGREES

  INSIDE TAPER OF WORK SPINDLE ............ #5MT

TAILSTOCK:

  INSIDE TAPER OF SPINDLE ................. #4MT

  STROKE OF SPINDLE ........................ 1- 3/16"

APPROXIMATE FLOOR SPACE REQUIRED .......... 102" X 64" X 66"H

APPROXIMATE MACHINE WEIGHT ................ 6,000 LBS

MACHINE FEATURES:

HYDRAULIC OPERATION FEATURING:

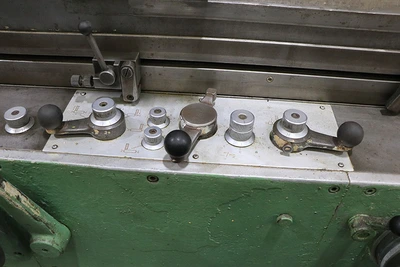

-SINGLE LEVER CONTROL

-INFINITELY VARIABLE TABLE TRAVERSE

-AUTOMATIC INFEED

-PLUNGE INFEED

-RAPID WHEEL ADVANCE & RETRACTION

SPARKOUT TIMER

EQUIPPED WITH:

- I.D ATTACHMENT & I.D GRINDING SPINDLE

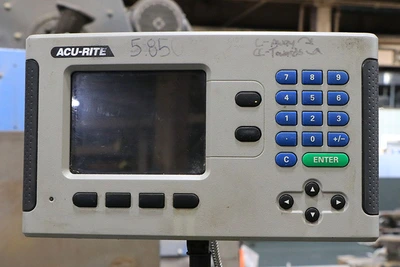

  "ACU-RITE" DIGITAL READOUT DISPLAY

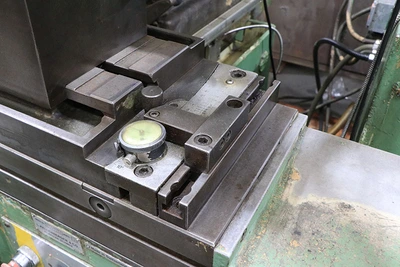

- DIAL INDICATOR FOR TABLE SWIVEL ADJUSTMENT

- CENTER IN WORKHEAD SPINDLE

- ADJUSTABLE RISE & FALL MECHANISM OF WHEELHEAD BY TURN OF HANDWHEEL

- SWING AROUND INTERNAL GRINDING ATTACHMENT,

   DOES NOT HAVE AN I.D. SPINDLE.

- 16" O.D. WHEEL

- WORKHEAD W/DUAL LIVE & DEAD WORKHEAD SPINDLE

- 4 H.P. WHEELHEAD MOTOR

- COOLANT SYSTEM

- LEVELLING PADS

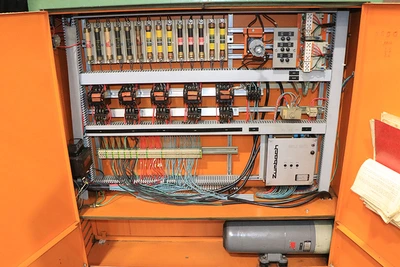

- MACHINE IS PRESENTLY WIRED FOR 3/60/440 VOLTS

SPECIAL NOTE:

AVAILABLE FROM US TO INCREASE THE SWING OF THIS MACHINE,

  COPIES OF THE FACTORY RISER BLOCKS.

  MAXIMUM SWING OBTAINABLE IS 19.8".

** EXCELLENT CONDITION & APPEARANCE

  - FROM A DEFENSE CONTRACTOR **

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
