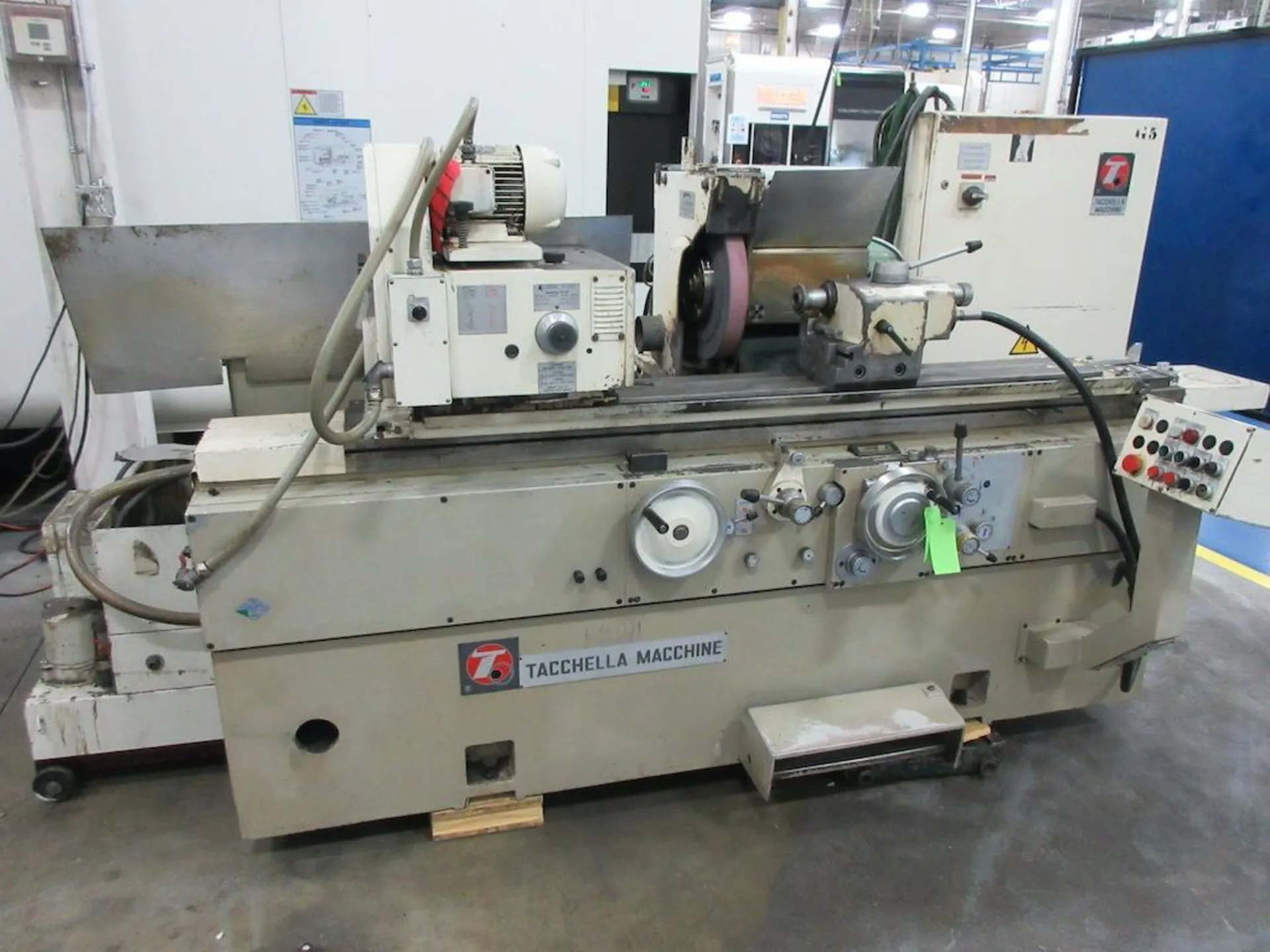

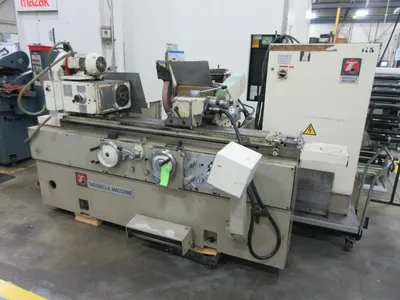

USED 1988 Tacchella 1018, AUTO CYCLE, HYD TABLE, AUTO INFFED & PLUNGE
Overview
Description
14" Swing 40" Centers Tacchella 1018, AUTO CYCLE, HYD TABLE, AUTO INFFED & PLUNGE OD GRINDER, SPKT TIEMR, RAPID, 16" WHEEL, HYD. TAILSTOCK
Specifications
14" X 40" TACCELLA "HIGH-PRECISION"
UNIVERSAL CYLINDRICAL GRINDER
MODEL: 1018UA S/N: 5734 NEW: 1988
MAXIMUM SWING OVER TABLE............... 14"
DISTANCE BETWEEN CENTERS............... 40"
WORK CARRIAGE:
TRAVERSE SPEED......................... 4" TO 192" I.P.M.
GRINDING .............................. 16" DIA. x 2"W
x 5" HOLE
SWIVEL RANGE .......................... +/- 90°
(2) GRINDING WHEEL SPINDLE SPEEDS...... 1640/1900 R.P.M.
AUTOMATIC INFEED @ TABLE REVERSAL,
ON DIA. .............................. 0.0005" TO .002"
PLUNGE GRINDING, FEED RATE RANGE ...... 0.0005" TO .070"
RAPID HYDRAULIC INFEED STROKE.......... 2"
MOTORIZED WORKHEAD AND TAILSTOCK:
INFINITELY VARIABLE WORKHEAD........... 30 TO 600 RPM
WORKHEAD TAPER......................... #4 MT
DIA. OF HOLE, WORKHEAD SPINDLE......... 1- 3/16""
WORKHEAD SWIVEL RANGE.................. +/- 90°
TAILSTOCK TAPER........................ #4 MT
TAILSTOCK STROKE ...................... 1- 1/4"
TABLE:
SWIVEL TABLE GRADUATED (DEG. INCLUDED
ANGLE)................................. 9°
APPROX. DIMENSIONS .................... 108" X 60" X 69"H
APPROX. WEIGHT ........................ 8,000 LBS.
EQUIPPED WITH:

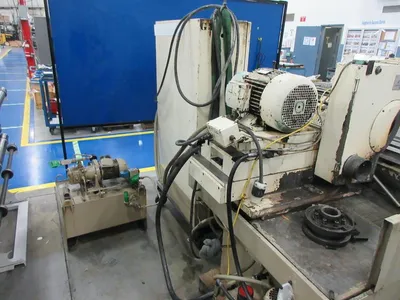

HYDRAULIC OPERATION FEATURING:

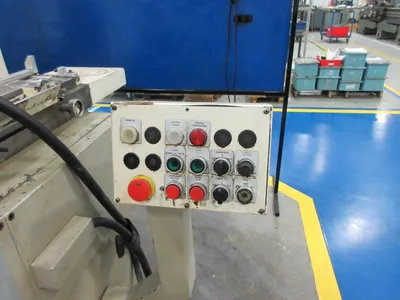

-SINGLE LEVER AUTO CYCLE CONTROL
-AUTO TABLE TRAVERSE
-AUTO INFEED
-DUAL RATE (COARSE & FINE) PLUNGE INFEED
-RAPID WHEELHEAD AVANCE & RETRACTION
SPARKOUT TIMER (0 TO 60 SECONDS)
DUAL LIVE/DEAD HEADSTOCK SPINDLE

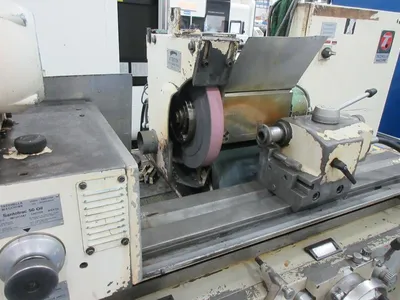

16" GRINDING WHEEL

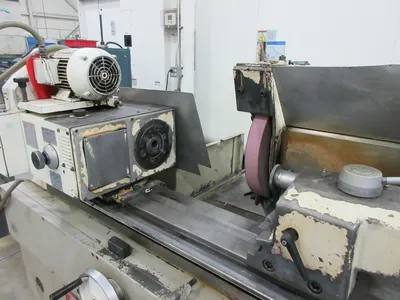

ELECTRONIC SPEED CONTROL FOR WORKHEAD
HYDRAULIC TAILSTOCK QUILL
LUBRICATION SYSTEM
COOLANT SYSTEM
SPECIAL NOTE:
WE PURCHASED OUR MACHINE FROM AN AEROSPACE
COMPANY IN CANADA. IT IS WIRED PRESENTLY
FOR 3/60/600 VOLTS.
IF YOU REQUIRE A DIFFERENT VOLTAGE, WE
CAN PROVIDE YOU WITH A TRANSFORMER.
PLEASE SPECIFY THE VOLTAGE YOU REQUIRE.
200-208-220-230-240-440-460-480 VOLTAGES.
PRICE FOR THIS ITEM IS $875.
** ITALIAN MACHINE TOO, SUPERIOR QUALITY! **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
** - ORIGINAL PAINT - EXCELLENT CONDITION **
FOR MORE INFORMATION: Call Andy at 973-497-7600
