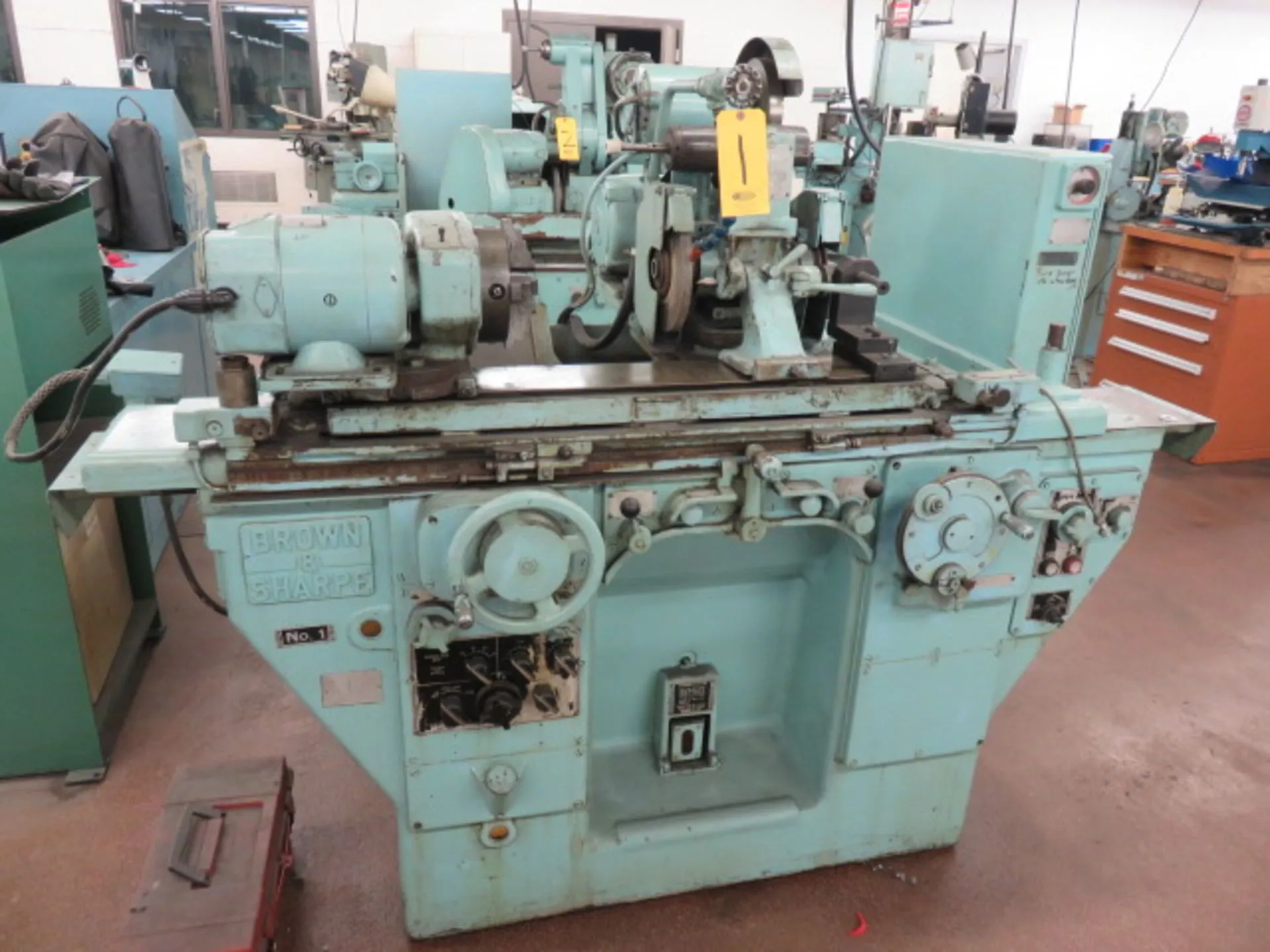

USED 1960 Brown & Sharpe #1, NEW 1960, I.D. ATTACH., AUTO CYCLE

10" Swing 20" Centers Brown & Sharpe #1, NEW 1960, I.D. ATTACH., AUTO CYCLE OD GRINDER

  10" X 20" BROWN & SHARPE UNIVERSAL I.D./O.D.

          CYLINDRICAL GRINDER

MODEL:  #1    S/N:  521-1-240    NEW:  1960

UNIQUE TO BROWN & SHARPE GRINDERS FEATURE

- DOUBLE SWIVEL WHEELHEAD:

"THE WHEEL SPINDLE HEAD WHICH SUPPORTS THE EXTERNAL AND

 INTERNAL GRINDING SPINDLES CAN BE SWIVELED TO EITHER

 SIDE OF ZERO. AN ADDITIONAL SWIVEL THROUGH 90 DEGREES

 IS PROVIDED AT THE WHEEL SLIDE. ANY COMPOUND SETTING

 REQUIRED IN COMBINATION STRAIGHT & TAPER OR DOUBLE

 TAPER GRINDING, O.D. OR I.D., CAN BE MADE QUICKLY

 & ACCURATELY.

 THE UNIVERSAL TURRET, WHICH  SUPPORTS THE WHEEL

 SPINDLE HEAD, PROVIDES FURTHER ADJUSTMENT

 FOR CHANGE OF WHEEL LOCATION. THE TURRET

 SWIVELS ON THE WHEEL SLIDE, AND CAN BE LOCKED

 IN ANY OF FOUR POSITIONS. EACH CHANGE MOVES THE

 WHEEL 2". RIGHT HAND WHEEL MOUNTING PROVIDES

 FOUR ADDITIONAL WHEEL POSITIONS."

SWING OVER TABLE ....................... 10"

DISTANCE BETWEEN CENTERS, NOMINAL ...... 20"

DISTANCE BETWEEN CENTERS, MAXIMUM ...... 22-3/4"

GRINDING WHEEL MOTOR ................... 2 HP

WHEELHEAD SPINDLE SPEEDS (3) ........... 2,500/3,000/3,600 RPM

GRINDING WHEEL SIZE .................... 10" X 1" X 3"

SWIVEL AT THE WHEELSLIDE ............... 90° EITHER WAY

WHEEL SPINDLE SWIVELS .................. 90° EITHER WAY

HEADSTOCK MOTOR ........................ 1/4 HP

INFINITELY VARIABLE SPINDLE SPEEDS ..... 60 TO 600 RPM

HEADSTOCK SPINDLE NOSE TAPER ........... A2-5"

HEADSTOCK SWIVELS EITHER SIDE OF ZERO .. 90°

INFINITELY VARIABLE TABLE SPEED ........ 3" TO 150" IPM

TABLE PER REV. OF HANDWHEEL:

  SLOW ................................. 0.1"

  FAST ................................. 1.5"

DWELL AT EACH OR ALTERNATE TABLE REV. .. 0 - 2-1/2 SEC.

TABLE SWIVEL, ANGULAR SETTING .......... 8-1/4 DEG.

SCALES-TAPER PER FT. ................... 3-1/2" (25%)

AUTOMATIC CROSS FEED, REDUCTION IN

  DIAMETER OR WORK

  AT EACH OR ALTERNATE REVERSALS ....... 0.0001" - .003"

AUTO PLUNGE INFEED ..................... YES

SPARKOUT TIMER ......................... YES

HAND FEED PER REV. OF HANDWHEEL:

  SLOW ................................. 0.1"

  FAST ................................. 0.3"

TAILSTOCK SPINDLE TAPER ................ #7 JARNO

TAILSTOCK SPINDLE TRAVEL ............... 5/8"

APPROXIMATE WEIGHT ..................... 5,100 LBS

MACHINE FEATURES:

  WHEELHEAD - DOUBLE SWIVEL & TURRET (DESCRIBED ABOVE)

  HYDRAULIC TABLE TRAVERSE

  AUTO INFEED

  AUTO PLUNGE INFEED WITH SPARKOUT TIMER

  CROSS FEED HANDWHEEL, WITH POWER RETRACTION

  ADJUSTABLE TABLE DWELL

  RIGHT OR LEFT END WHEEL MOUNTING

  SWIVELLING AT WHEEL SPINDLE HEAD OR AT THE WHEEL

   SLIDE PERMITS ANY COMPOUND SETTING REQUIRED IN

   COMBINATION STRAIGHT AND TAPER GRINDING,

   EXTERNAL OR INTERNAL

  L.H. & R.H. GRINDING WHEEL COVERS

  DUAL DEAD/LIVE HEADSTOCK SPINDLE

  SELF-CONTAINED COOLANT SYSTEM

  3/60/220-440 VOLT MOTORS

EQUIPPED WITH:

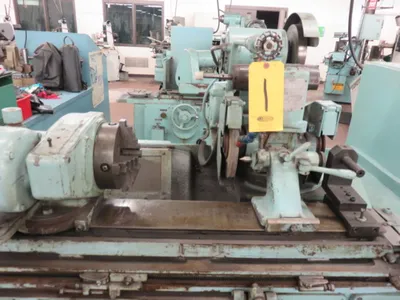

SWING DOWN I.D. GRINDING ATTACHMENT WITH I.D. SPINDLE

4-JAW CHUCK MOUNTED ON WORKHEAD

ZIGGY, WE CAN SWAP OUT THE HARDINGE "SJOGREN 5C COLLET CHUCK FOR THE

 4-JAW CHUCK, AND THIS MACHINE HAS THE I.D. ATTACHMENT YOU WANT.

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

**  EXCELLENT CONDITION & APPEARANCE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
