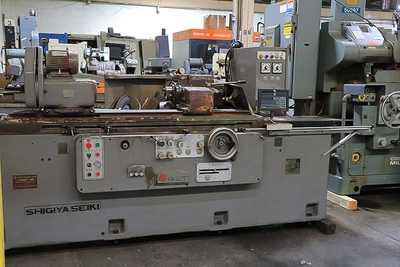

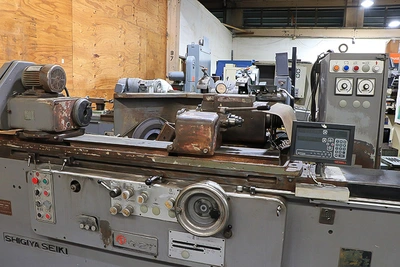

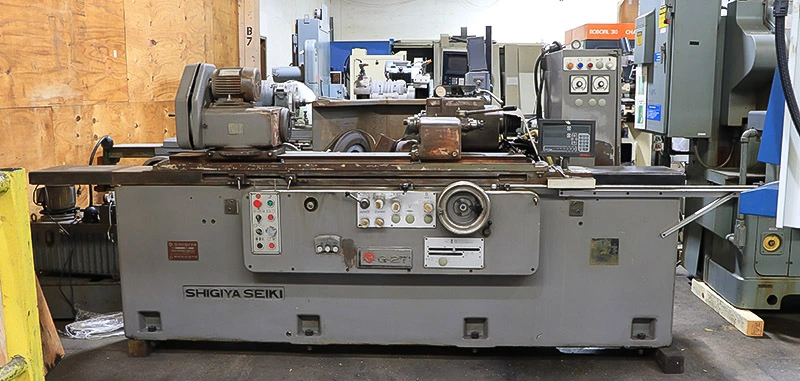

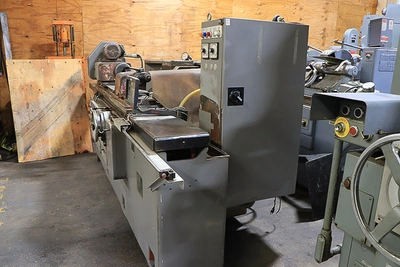

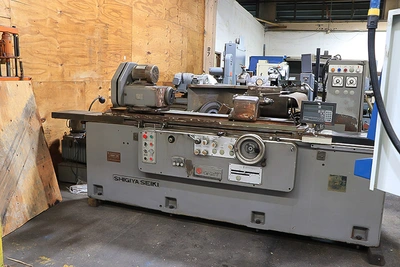

USED Shigiya GUA27-100

Shigiya GUA27-100 OD GRINDER

11.6" X 40" SHIGIYA (JAPANESE) PRECISION UNIVERSAL CYLINDRICAL GRINDER

MODEL: GUA-27X100      S/N: 30119       NEW: 1984

SWING ............................... 11.6"

DISTANCE BETWEEN CENTERS ............ 40"

LONGITUDINAL TABLE SPEED ............ 2" TO 120" IPM

TABLE SWIVELS (TOTAL) ............... 7 DEG.

MAX. STROKE OF WHEELHEAD ............ 8- 1/2"

MAX. AUTO INFEED STROKE ............. 0.3"

AUTO INFEED RATE .................... 0.00004" TO .004"

PLUNGE INFEED ....................... 0.0008" TO .06"

ONE REV. OF HANDWHEEL ............... 0.04"

HANDWHEEL, FINE FEED BY MICRFEED .... 0.0001"

WHEELHEAD SWIVELS LEFT& RIGHT ...... 30 DEG.

GRINDING WHEEL SIZE ................. 14" DIA. X 1"-2"W

X 5" BORE

GRINDING WHEEL SPEEDS (2) ........... 1,660/1,880 RPM

WORKHEAD SPINDLE TAPER .............. #4 MT

WORKHEAD SPINDLE SPEEDS (9) ......... 20 TO 380 RPM

WORKHEAD SWIVELLING RANGE (TOTAL) ... 120 DEG.

TAILSTOCK SPINDLE TAPER ............. #4 MT

TAILSTOCK SPINDLE TRAVEL ............ 1- 1/8"

APPROX. MACHINE WEIGHT .............. 9,250 LBS.

APPROX. MACHINE DIMENSIONS .......... 150"L X 68"W X 61"H

EQUIPPED WITH:

HYDRAULIC OPERATION FEATURING:

-POWER TABLE TRAVERSE

-ADJUSTABLE TABLE DWELL

-AUTO INFEED

-PLUNGE INFEED

-OPTIONAL COARSE-FINE WHEEL INFEED POSITION CONTROL KNOB

-RAPID WHEELHEAD ADVANCE& RETRACTION

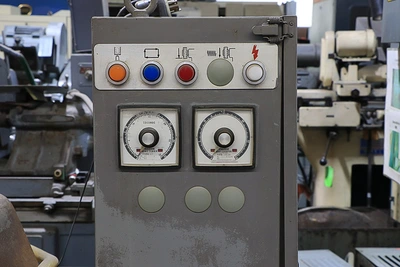

INDEPENDENT SPARKOUT TIMERS FOR AUTO INFEED& PLUNGE

GRINDING OPERATIONS

FINE FEED (MICROFEED) KNOB FOR TABLE TRAVERSE

WHEELHEAD FEATURES HYDROSTATIC BEARING DESIGN

(AUTO-PRESSURE LUBRICATED)

EXTERNAL HYDRAULIC SYSTEM

AUTOMATIC LUBRICATION SYSTEM

DUAL LIVE/DEAD WORKHEAD SPINDLE

5 H.P. WHEELHEAD MOTOR

COOLANT SYSTEM

WIRED PRESENTLY FOR 220/3/60 ELECTRICS

** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **

*** EXCELLENT CONDITION & APPEARANCE  ***

FOR MORE INFORMATION: Call Andy at 973-497-7600
