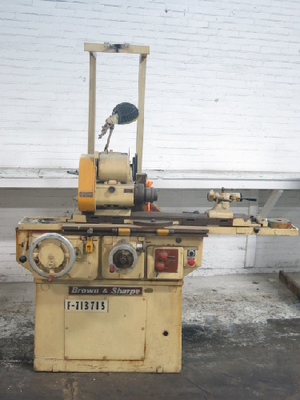

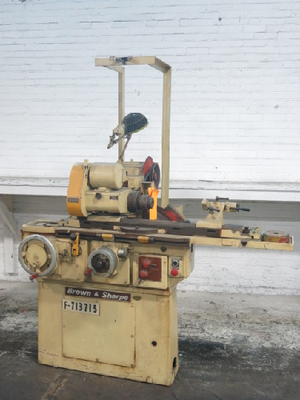

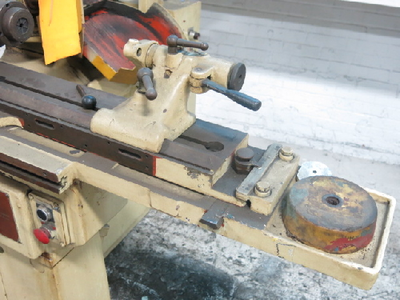

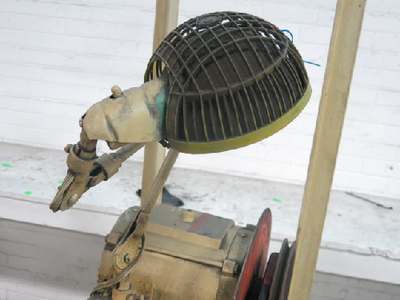

USED 1980 Brown & Sharpe 814U VALUEMASTER

8" Swing 14" Centers Brown & Sharpe 814U VALUEMASTER OD GRINDER, POWER TABLE, INCH/METRIC HANDWHEELS

  8" x 14" BROWN & SHARPE "PRECISION" "MADE IN USA"

 UNIVERSAL CYLINDRICAL GRINDER

MODEL:  814U VALUEMASTER   S/N: 525-8144-2699    NEW: 1980

 CAPACITY:

- GRINDS WORK UP TO ..................... 8" DIAMETER

- GRINDS LENGTH ......................... 14"

- DISTANCE BETWEEN CENTERS .............. 24"

  WHEELHEAD:

- GRINDING WHEEL SIZE ................... 5", 7" OR 10" DIAMETER

- GRINDING WHEEL SPEEDS (3) ............. 2730, 3600 & 5150 RPM

- WHEELHEAD TRAVEL ...................... 8-3/8"

- WHEELHEAD SWIVELS, LEFT & RIGHT ....... 110 DEGREES

  SWIVEL TABLE:

- ANGULAR SETTING TO LEFT & RIGHT ........ 90 DEGREES

- FINE SCREW ADJ. FOR SETTING TAPERS UP TO 3" PER FT.

- TABLE TRAVEL ........................... 22"

- TRAVEL PER REV. OF HANDWHEEL ........... 1/4" SLOW

                                           6-1/4" FAST

- POWER TABLE, (6) TABLE SPEEDS FROM ..... 7 -3/4" TO 100" IPM

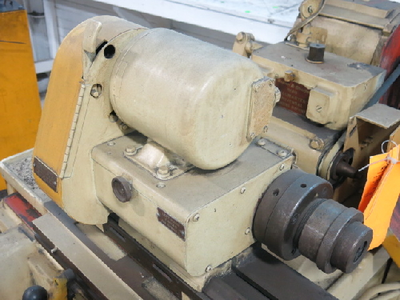

  HEADSTOCK:

- SWIVELS LEFT & RIGHT .................. 100 DEGREES

- SPINDLE SPEEDS (4) .................... 128 TO 540 RPM

- APPROXIMATE WEIGHT: ................... 2,900 LBS.

- APPROX. DIMENSIONS .................... 65" x 55"D x 55"H

  EQUIPPED WITH:

POWER TABLE TRAVERSE FEATURE

DOUBLE ENDED WHEEL SPINDLE, WHEELS CAN BE ON L.H. OR R.H.

CURRENTLY SET-UP WITH 7" GRINDING WHEEL .... MACHINE CAN

  ALSO BE USED WITH 5" OR 10" DIAMETER GRINDING WHEELS

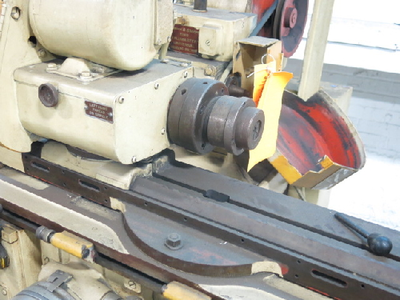

DUAL LIVE/DEAD HEADSTOCK SPINDLE

COLLET ATTACHMENT WITH ONE COLLET

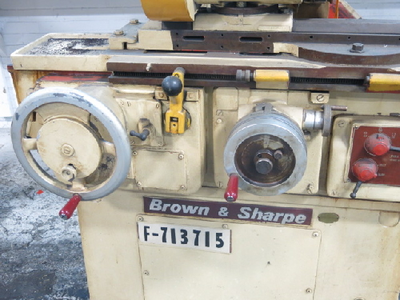

FINE CROSS FEED KNOB (.0001" ON WORK DIA.)

VERTICAL HANDWHEEL GRADUATED TO READ .0005"

ANTI-FRICTION BEARING WHEELHEAD SPINDLE

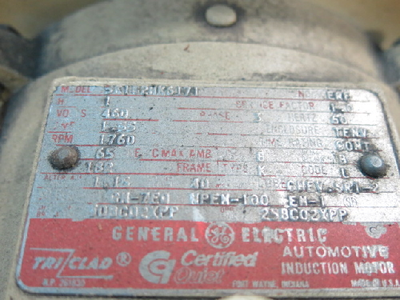

  1 H.P. 3/60/230-460 VOLT WHEELHEAD MOTOR

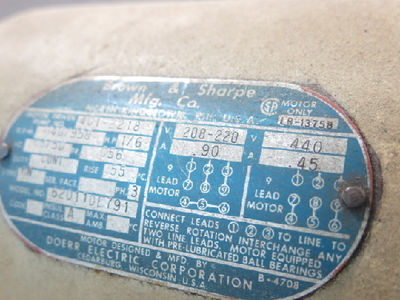

1/6 H.P. WORKHEAD MOTOR

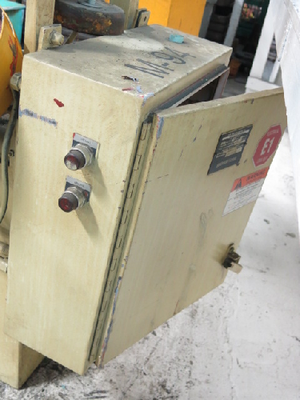

MACHINE IS PRESENTLY WIRED FOR 460 VOLTS

  ** EXCELLENT CONDITION& APPEARANCE **

** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
