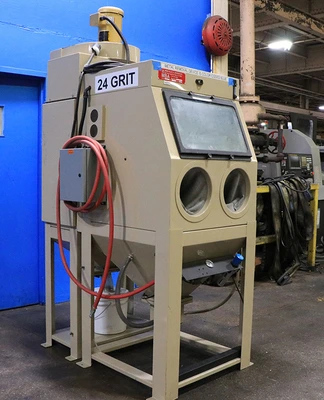

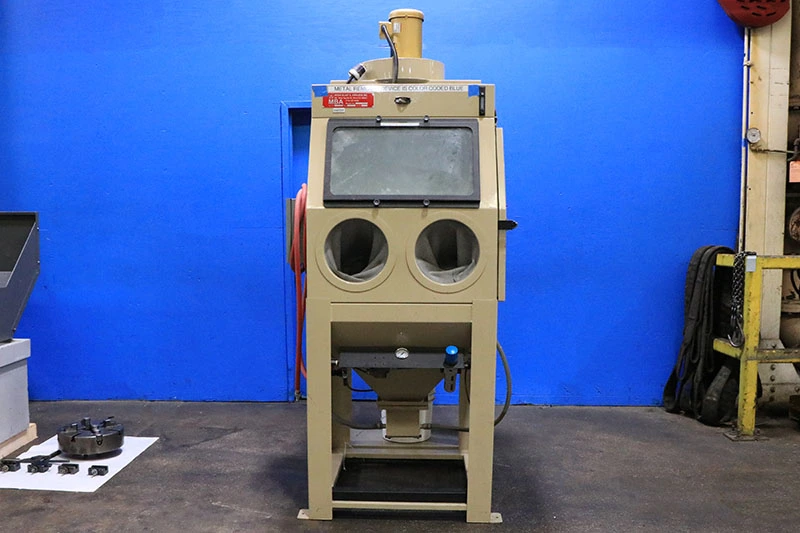

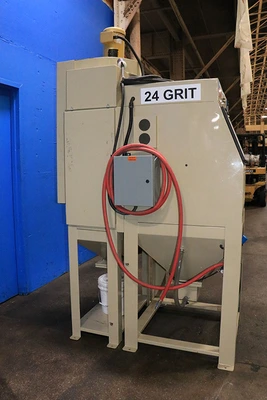

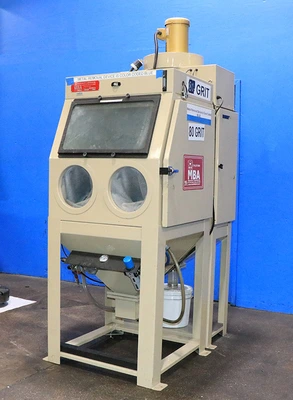

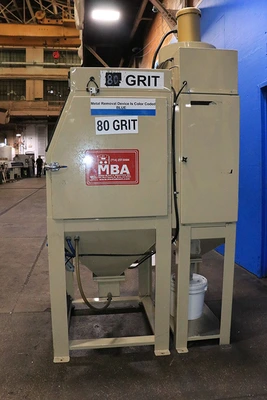

USED 2020 MEDIA BLAST N200-3030 CYCLONE SIPHON, 2020, 36" x 28" X 30"

28" Width 30" Height MEDIA BLAST N200-3030 CYCLONE SIPHON, 2020, 36" x 28" X 30" BLAST CLEANER, GUN No. 3Y6BC, DC, OPTIONS

                   MediaBlast

                     USA Made

            Model N-200 3030

    "Pressure Blast"

 Abrasive Blast Cabinet

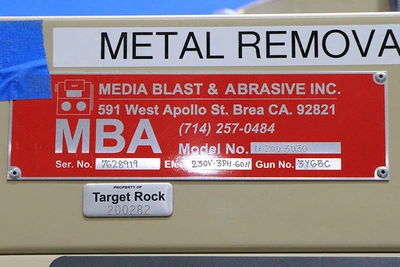

S/N: 7628919  New: 2020

The N-200 Cyclone dry, siphon blasting

cabinet has the lowest abrasive usage

of any machine design and is one of the

most effective pieces of sandblasting

equipment at controlling and recycling

fine abrasive blasting media

(180 to 325 mesh). Fine abrasive can

cause visibility problems, mixing valve

feed problems and high abrasive usage

rates. The N200 Cyclone uses a pneumatic

conveyor to help keep the

fine media dry and flowing, and a high

efficiency cyclone separator reclaimer

used to remove the abrasive from inside

the cabinet without loss of abrasive.

The cyclone is the most efficient

mechanical separator reclaimer used

and Media Blast has the most efficient

cyclone on the market today. Media Blast

also offers the standard efficiency barrel

cyclone separator, seen below, used for

larger abrasive sizes. This standard

efficiency barrel cyclone will handle

150 mesh but remember 150 mesh will soon

become 220 and 220 will soon become 320.

Getting the right cyclone type is about

talking about the application, call for

details. Standard is the High Efficiency

N-200 Cyclone. It can operate with almost

 any abrasive type and size, but it's the

 only machine designed to use fine and

ultra-fine abrasives. When using standard

 or large abrasive sizes, 150 mesh and

larger, look to the N-200 model with the

 internal cyclone separator reclaimer and

 internal abrasive storage for a more

economical machine with fewer maintenance

 parts, both models are needed for use in

 today's markets. The N-200 Cyclone has

more standard cabinet sizes than any

other Media Blast machine model. See below

 for some of the most popular sizes. Look

at the HEPA after filter in available

options for machine cell operation

and ultra fine abrasives.

"N-200 Cyclone Siphon uses a pneumatic conveyor

    to keep the fine media dry & flowing, and a cyclone

    separator reclaimer to remove the abrasive."

"The N-200 Cyclone Siphon sand blasting cabinet

  is made from 100% welded 12- and 14-gauge CRS.

  It was designed for applications requiring fine and

  ultra-fine abrasive, but it can also operate with

  most standard abrasive 60-325 mesh. Look at

  the HEPA after filter in available options for machine

  cell operation using 220 mesh and finer."

• Door dims: 22" x 25" H

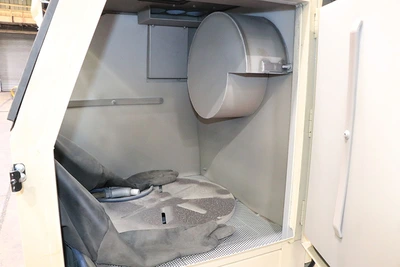

• Work dims: 36" x 28"  30" H

• Electrical: 120V / 60Hz / 1PH

• Overall dims: 44" x 43" x 84" H

• 1/2 hp 700 cfm class III pressure blower

• Recommended abrasive size:

  60 - 150 mesh

• Compressed air usage: 25 - 90 CFM

  @ 80 PSI• Standard gun size: 3/8"

  using 46 CFM @ 80 PSI

• Expanded metal work grates,

  3/4" - #9 flattened

• 10” diameter work ports with two-piece

  glove and gauntlet

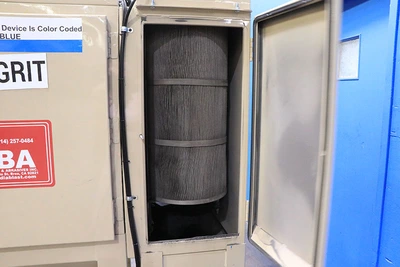

• 220 sq.ft. certified cartridge filter with

  pneumatic cleaning

• Dust collector: 220 sq. ft. cartridge,

  700 CFm blower C-III, internal seperator

Description

"If you're in need of a blaster for constant

 operation, consider the MediaBlast N-200

 USA Made Abrasive Sand Blast Cabinet!

This dry siphon production machine uses

 a negative pressure dust collector to ensure

 a longer duty cycle, a cleaner work area,

 and a longer blower service life. It also

 utilizes a patented internal seperator

 reclaimer to help filter out both rust and

 dust to greatly enhance visibility.

 Its unique features include a 3-Y blast gun

  with  a 3/8" tungsten carbide nozzle, a

  replaceable bolt-on machine hopper,

 a 220 sq. ft. certified cartridge filter with

 pneumatic cleaning, and much more that

 other competitors don't offer. Some

 common features include a long wear

 hose, a replaceable adjustable abrasive

 flow-control mixing valve, and a double

 panel door construction."

KEY BENEFITS

• American Made

• "Catalyst paint• Long wear hose• Safety

 door interlock• Lockable refrigerator door

 handle• Glass window protector, low static•

 Dry siphon production machine type•

 Bolt-on machine hopper, replaceable•

 Bolt-in cabinet hopper scalper screen•

 Double panel door construction, no spills•

 LED outside cabinet lighting on standard

 top• LED spot lighting on expanded height

 models• 100% welded 14-gauge CRS

 cabinet construction• Foot operated blast

  control valve with treadle pedal•

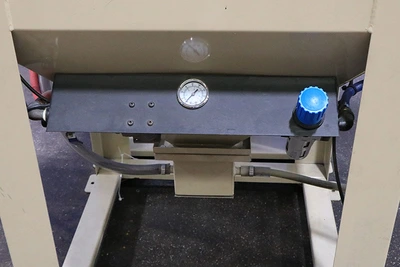

 Precision air-regulator, air filter/water trap

 with gauge• 3-Y blast gun with 3/8”

 tungsten carbide nozzle standard•

 Hopper dust storage and maintenance

 access service door• Adjustable abrasive

 flow-control mixing valve, replaceable•

 Safety glass view window with positive

 sealing window seal• Separator reclaimer,

 pneumatic centrifuge (Patented) internal•

 Smaller and larger gun sizes are available

 for applications with larger and smaller

 air compressors."

https://mediablast.com/wp-content/uploads/2020/05/4-c-N-200-Cyclone-03.04.21.pdf

Equipped With:

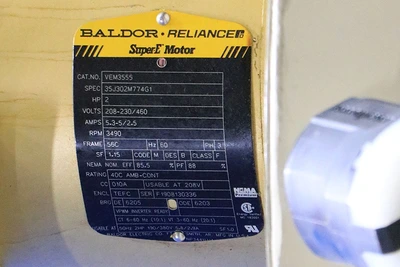

2 H.P. 1,100 CFM Class III

 Pressure Blower

"MBA" Gun No. 3Y6BC, 3/8" Boron Nozzle

Auto Reverse Pulse Option

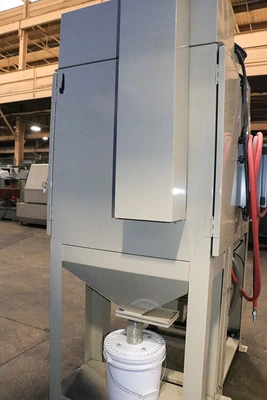

Dual Cartridge Dust Collector

30 Watt LED Flood Light

22" Fixed Turntable

Wired Presently for 3/60/230 Volts

Like New Condition & Appearance **

In Stock, Ships from our Harrison, NJ Warehouse **

FOR MORE INFORMATION: Call Andy at 973-497-7600
