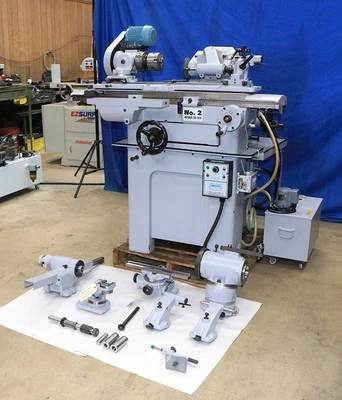

USED 2016 Republic-Lagun TCG-106, NO. 2 Type, 2016, Helical Grinding Attch.

Republic-Lagun TCG-106, NO. 2 Type, 2016, Helical Grinding Attch. TOOL & CUTTER GRINDER, Motorized Wkhd, Non-Mtrz'd Wkhd., Many Accessories

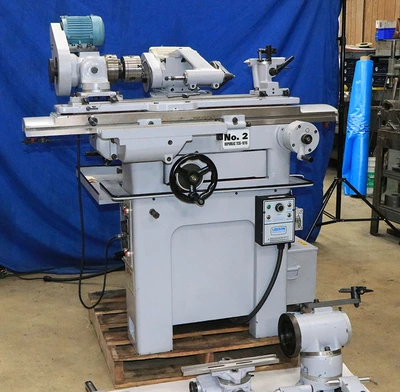

        No. 2 Republic-Lagun

          Model: TCG-1016

  Universal Tool and Cutter Grinder

Replacement Cost as Equipped for this Machine

                 is Over $55,000!

Our Machine Comes with Over $20,000 of

              Optional Accessories!

                  Holy COW!!!

 S/N: 22764    New: 2016

*** Like New Condition ***

Specifications:

Swing Over Table: 10″

Distance Between Centers: 27 1/2″

Distance Between Tailstock and Workhead: 22 3/4″

Workhead Hold Tapers:

  ASA # 50 One End; # 5 M.T. or # 12 B & S Other End

Table Work Surface: 5.315″ x 37″

Table T-Slot: 0.565″

Longitudinal Table Travel: 15 3/4″

Cross Travel of Saddle: 10″

Table Swivel Graduations: +/- 60°

Table Graduation on End: +/- 10°

Vertical Movement of Wheel Head: 10″

Wheel Head Tilt: +/- 15°

Wheel Head Swivel: 360°

Wheel Spindle Centerline to Table Top: 2″ – 12″

Wheel Spindle Centerline to T-Slot Center: 6 1/2″ – 16 1/2″

Grinding Wheel Spindle Speed: 2,600, 3,700, 6,200 RPM

Grinding Wheel Spindle Drive: 2 HP / 240 V, 480 V / 3 PH

Compact footprint, Floor Space: 61″ x 68 1/2″

Dimensions: 57 1/2″ x 57 1/2″ x 59 1/2″ H

Weight: approx. 2,560 lbs.

Standard Features:

Highest quality meehanite casting with outstanding

 rigidity and vibration dampening

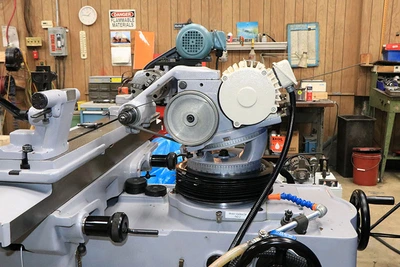

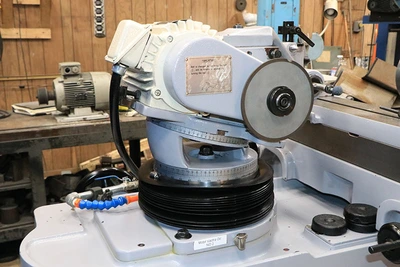

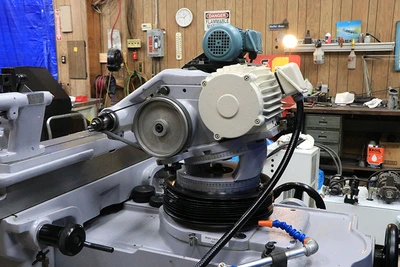

Tilt wheelhead for easy clearance setting.

Wheelhead is designed to tilt +/- 15°. It can also

 be swiveled 360° on the horizontal plane.

 These features make it very easy to set rake and

 relief angles and provide a wide angle of grinding.

 Grinding wheels can be mounted on both ends

Table slideways are hardened and precision ground.

Table is mounted on anti-friction slideway ball bearings,

 controlled by table cable on take-up reels for

 backlash-free operation. Fingertip control of table

 movement is by coarse and fine feed table feeds

 knobs on right and left side and rear

Universal workhead can be swiveled at any angle

 horizontally and vertically. Both ends have a taper hole

Complete 3/60/220/440 volt electrics in nema-type

 enclosure and operating controls convenient to operator

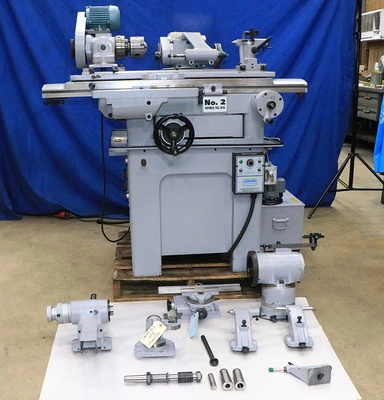

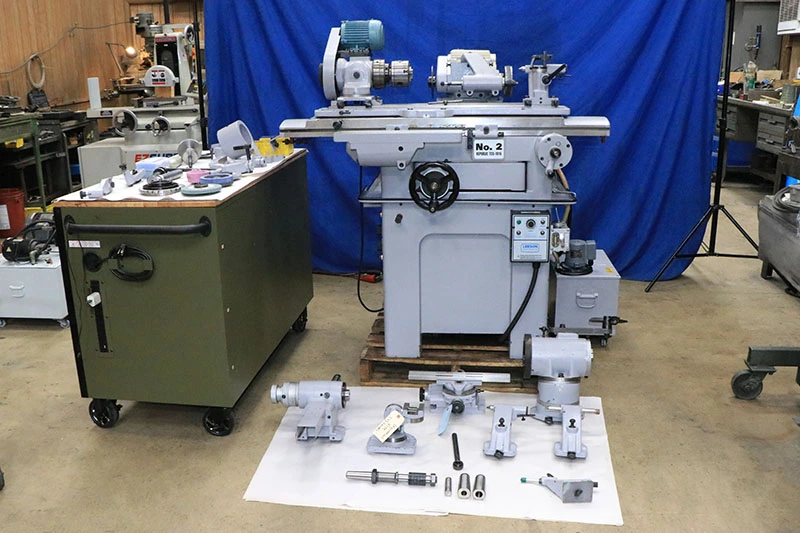

Equipment:

I.D. Spindle Option

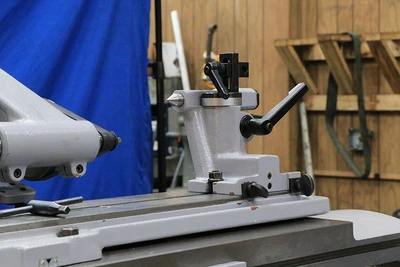

Two sets of Tailstocks, with centers

 (left hand and right hand tailstocks with centers)

Grinding wheel mounts and flanges

Assortment of grinding wheels

Table mounted wheel dresser

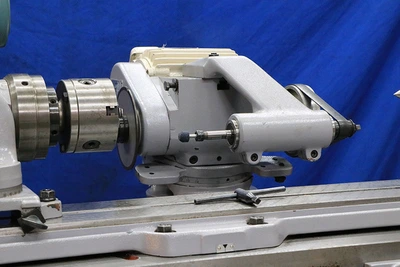

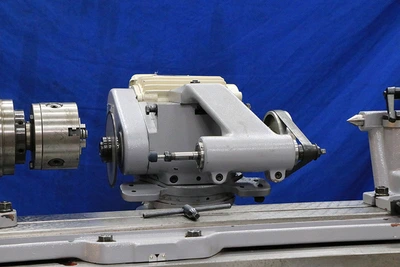

"Helical Grinding Attachment"

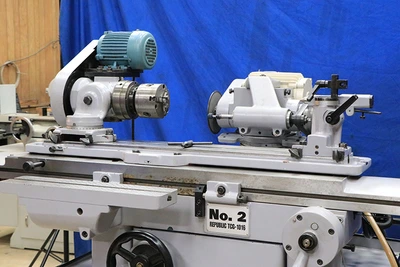

Motorized Workhead, with 3-Jaw Chuck Presently Mounted.

 Also has a Draw Bar.

Index Plate for the Workhead

Face Milling "Large" Workhead

Wheel Extension

Universal Vise,  Swivels in Two Planes, and Tilting

Coolant Tank with Pump

Machine is Presently Wired for 3/60/480 Volts

Special Note:

Replacement Cost as Equipped for this Machine is Over $55,000!

Our Machine Comes with Over $20,000 of Optional Accessories!

Holy COW!!!

*** Like New Condition & Appearance ***

** Inspect under Power in our Harrison, NJ Warehouse **

FOR MORE INFORMATION: Call Andy at 973-497-7600
