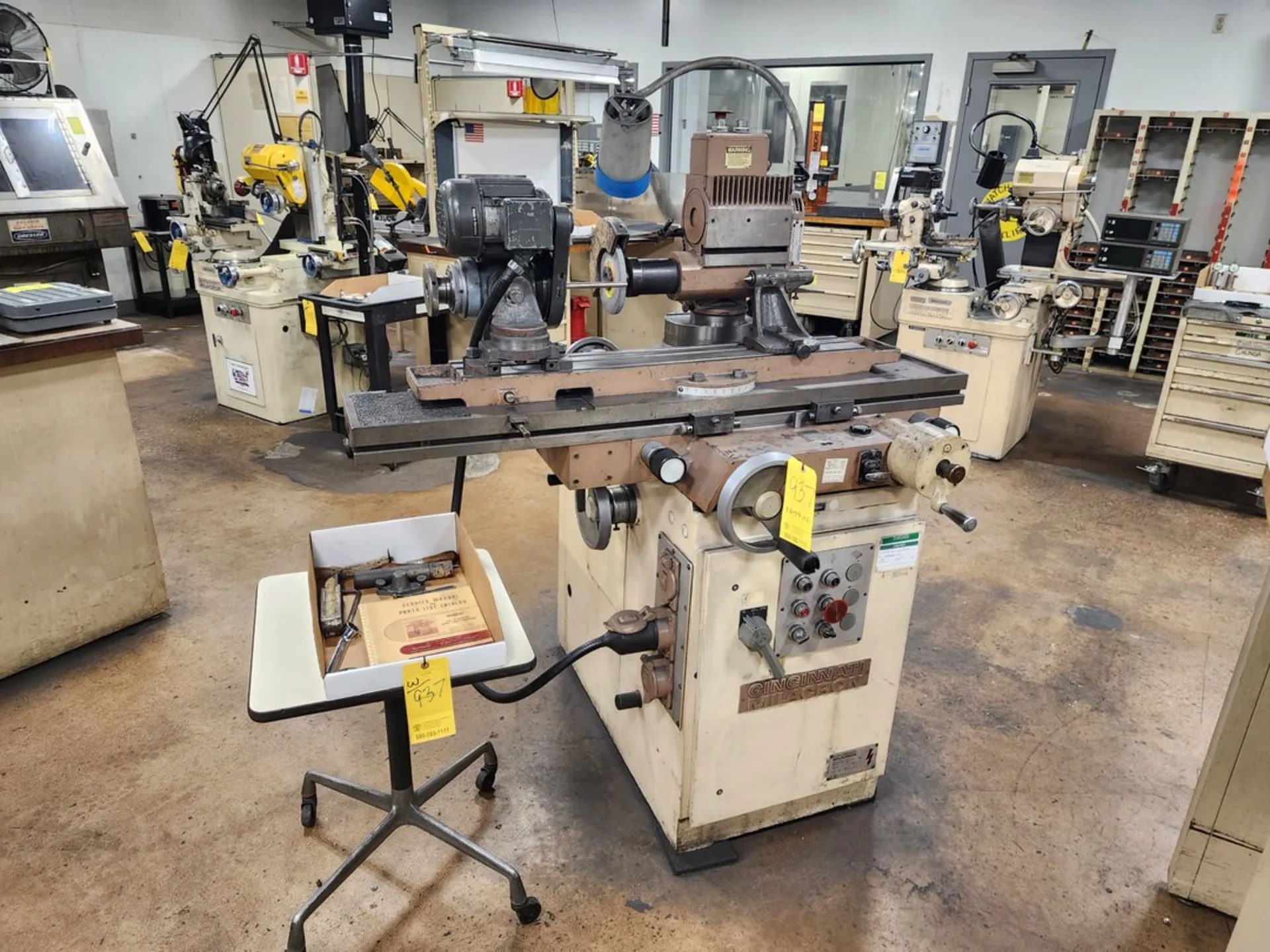

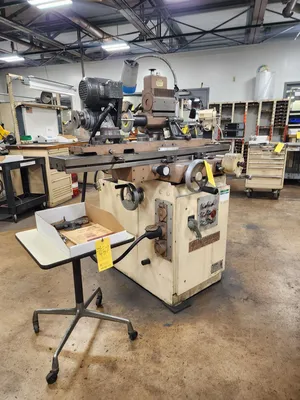

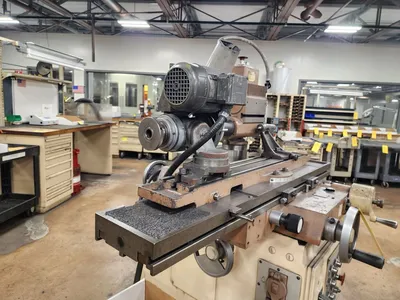

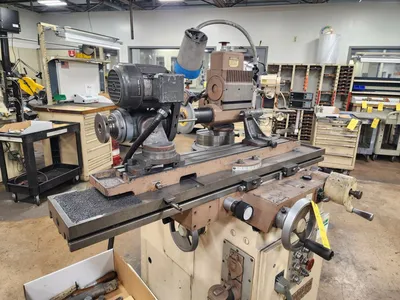

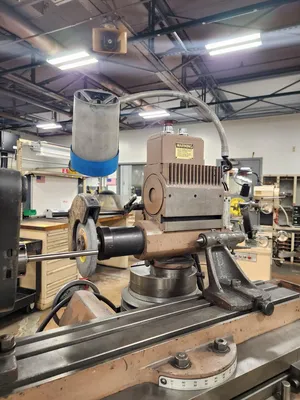

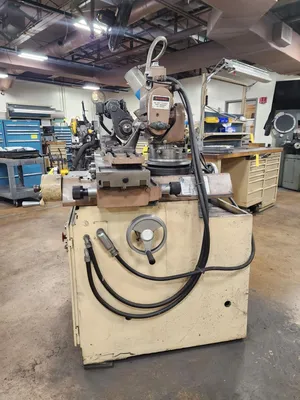

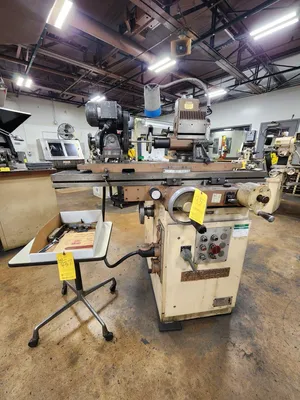

USED 1978 Cincinnati-Milacron #2MT, 1978, TILT WHEEL, RADIUS ATT., TAILSTOCKS,

         NO. 2 CINCINNATI-MILACRON

                MODEL: MT

      UNIVERSAL TOOL & CUTTER GRINDER

    S/N: F-4984-E-79-05-36     NEW: 1979

CAPACITY:

SWING OVER TABLE DIAMETER ......................... 10"

LENGTH, BETWEEN RIGHT & LEFT-HAND TAILSTOCKS ...... 27"

LENGTH, BETWEEN TAILSTOCK & WORKHEAD .............. 21-1/2"

FACE MILLS ON WORKHEAD DIAMETER ................... 10"

FACE MILLS USING FACE MILL GRINDING ATTACH. DIA. .. 18"

SAWS ON TABLE DIAMETER ............................ 48"

FORMED CUTTERS (USING 6" WHEEL) DIAMETER .......... 10"

RANGE:

TABLE SIZE ..................................... 6" x 36"

LONGITUDINAL TABLE TRAVEL ......................... 16"

CROSS MOVEMENT OF TABLE ........................... 10"

TABLE SWIVEL ...................................... 180°

TABLE TAPER PER FOOT ON DIA. (TOWARD & AWAY) ...... 5"

FINE ADJ. TAPER PER FT. ON DIA. (TOWARD & AWAY) ... 2"

TABLE GRADUATIONS IN CENTER, IN DEGREES ........... 90°

VERTICAL MOVEMENT OF GRINDING WHEEL SPINDLE ....... 10-1/2"

MAX. DIST. CENTERLINE OF SPINDLE TO TABLE ......... 13-1/2"

SPINDLE TILTS ABOVE AND BELOW CENTER .............. 15°

SWIVEL MOVEMENT OF GRINDING WHEEL SPINDLE ......... 360°

SPINDLE SPEEDS:

6" WHEEL, SURFACE SPEED 6,022 FT./MIN. ......... 3,834 RPM

3" WHEEL, SURFACE SPEED 5,887 FT./MIN. ......... 6,425 RPM

APPROXIMATE MACHINE WEIGHT ..................... 3,000 LBS

APPROXIMATE DIMENSIONS ................. 36" X 38"D X 60"H

MACHINE FEATURES:

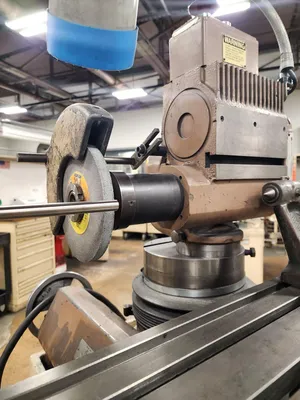

TILTING WHEELHEAD (15 DEG. ABOVE & BELOW)

DUPLICATE CONTROLS @ THE FRONT & REAR OF THE TABLE

BALL BEARING ANTI-FRICTION TABLE ROLLING IN

REPLACEABLE HARDENED STEEL V-WAYS

360 DEG. ECCENTRIC WHEELHEAD & SWIVEL TABLE WHICH

CAN INCREASE SPECIFIED CROSS RANGE BY 70%

CAST IRON CONSTRUCTION

ONE-SHOT LUBRICATION SYSTEM

2-SPEED SPINDLE, INSTANTLY REVERSIBLE

1 HP 3/60/230-460 VOLT SPINDLE MOTOR

EQUIPPED WITH:

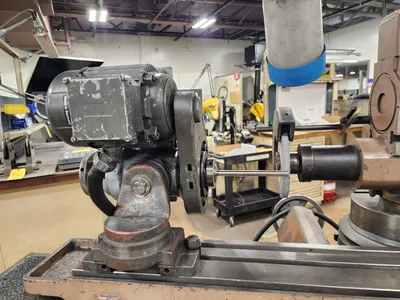

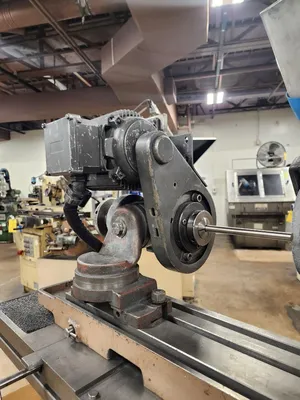

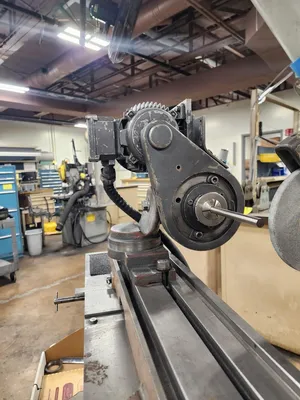

CINCINNATI MILACRON MOTORIZED WORKHEAD,

  WITH 5C COLLET ATTACHMENT

CINCINNATI TAILSTOCKS

MACHINE IS PRESENTLY WIRED FOR 460 VOLTS

AVAILABLE TO PURCHASE SEPARATELY:

CINCINNATI MILACRON RADIUS ATTACHMENT,

  COMPLETE WITH WORKHEAD,

https://www.machineryvalues.com/inventory/cincinnati-milacron-radius-grinding-fixture-grinder-attachments/162337/0

** EXCEPTIONAL CONDITION & APPEARANCE (ORIGINAL PAINT) **

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
