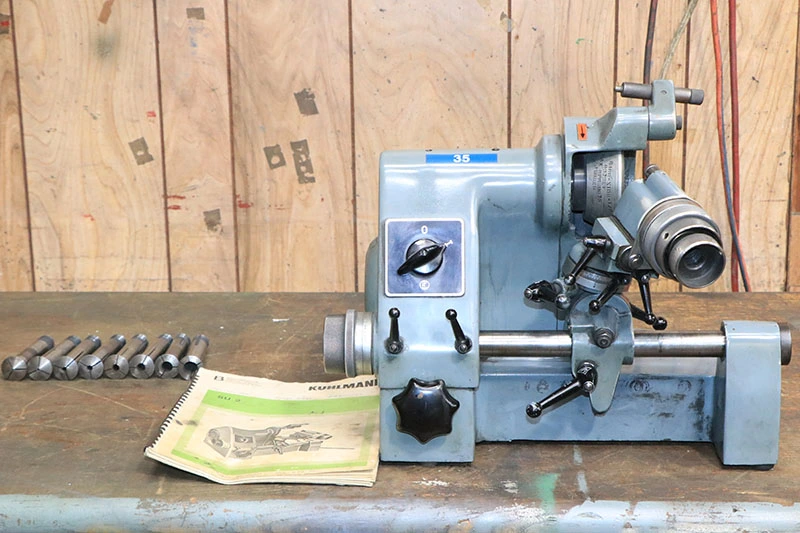

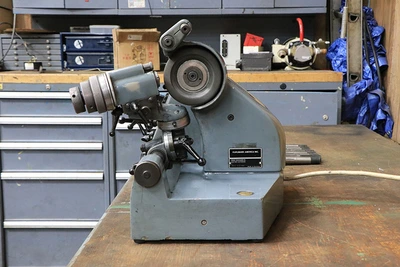

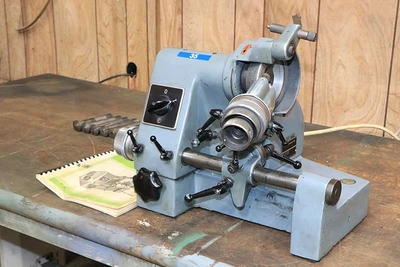

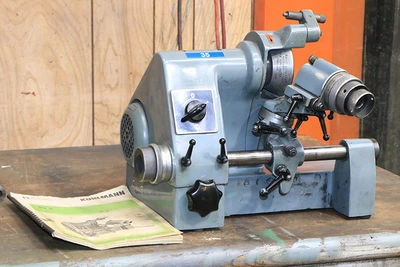

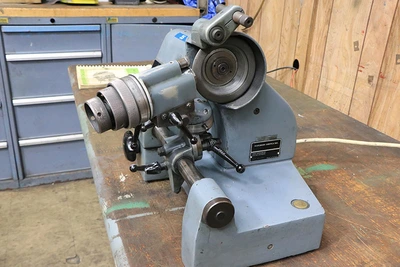

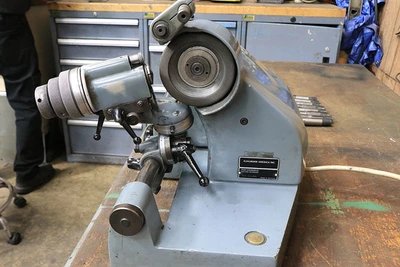

USED 2000 Kuhlmann SU2, 2000,MADE IN GERMANY, SINGLE LIP PANTOGRINDER
Overview
Description
Kuhlmann SU2, 2000,MADE IN GERMANY, SINGLE LIP PANTOGRINDER TOOL & CUTTER GRINDER, COMPLETE, SINGLE PHASE
Specifications
KUHLMANN "MADE IN GERMANY" FOR THE USA MARKET
SINGLE-LIP UNIVERSAL TOOL GRINDER (PANTOGRINDER)
MODEL: SU 2 S/N: 12.0.0034 NEW: 2000's
THE "SU 2" ALLOWS YOU TO GRIND SINGLE-LIP
CUTTERS TO ANY CUTTING SHAPE AND EASILY
HANDLES DIES, TWIST DRILLS, TURNING AND
SHAPING TOOLS, PROBE STYLUSES, CENTER POINTS,
ELECTRODES AND MANY OTHER TOOLS.
INTRICATE TOOL PROFILES CAN BE GENERATED
AND RESHARPENED IN MINUTES.
PRECISION GRINDING SPINDLE ALLOWS
VIBRATION-FREE GRINDING WITHOUT ANY
CUTTER MARKS AND IS TIGHTLY SEALED
TO PREVENT THE INGRESS OF DUST AND DIRT.

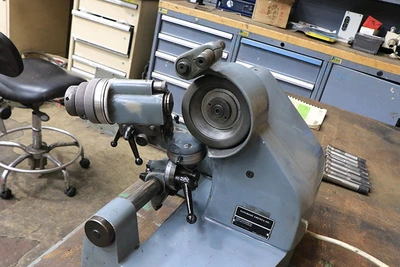

THE DRESSING UNIT IS INCORPORATED IN THE
WHEEL GUARD AND ADJUSTED BY A FINE
ADJUSTING SCREW.
A WIDE VARIETY OF SHAPES AND PROFILES
ARE OBTAINABLE DUE TO THE NUMEROUS
LINEAR AND ROTARY ADJUSTMENTS ON THE SO.
POWER RATING ...................... 0.34 H.P.
MOTOR SPEED ....................... 2800 RPM
GRINDING SPINDLE SPEED ............ 5600 RPM

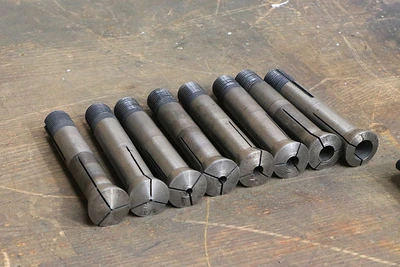

TOOL MOUNT - MAX. TOOL DIAMETER ... 0.7"
- TAPER SHANKS .................... #1 & #2 MT
TOOL MOUNT ADJUSTMENTS:
LATERAL ........................... 0.4"
LONGITUDINAL ...................... 1.6"
MAX. RELIEF ANGLE ................. 45 DEG.
FINE ADJ. OF INDEX HEAD BRACKET ... 0.6"
NUMBER OF INDEX POSITIONS ......... 12 x 30°
MACHINE WEIGHT (MACHINE ONLY) ..... 83.6 LBS
MACHINE SIZE (MACHINE ONLY) ....... 14.2" x 19" x 14"H
EQUIPPED WITH:
BENCH MODEL

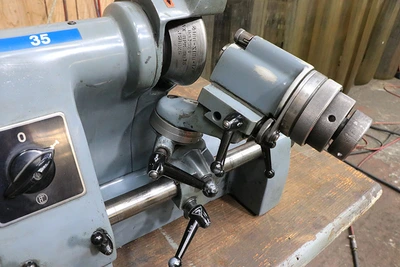

UNIVERSAL TOOL HEAD
DIAMOND WHEEL
BUILT-IN WHEEL DRESSER

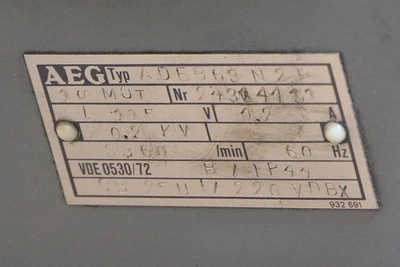

115 VOLT/1PH/60 ELECTRICS
LINK TO VIDEO: https://youtu.be/-O42Iwzihho?si=mQtTcqcnpmaNOlM0
** EXCEPTIONAL CONDITION & APPEARANCE - ORIGINAL PAINT **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
FOR MORE INFORMATION: Call Andy at 973-497-7600
