USED 1980 Cincinnati-Milacron MT, MONOSET, 1980, ENORMOUS TOOLING PACKAGE

Cincinnati-Milacron MT, MONOSET, 1980, ENORMOUS TOOLING PACKAGE TOOL & CUTTER GRINDER, MOTORIZED WORKHEAD

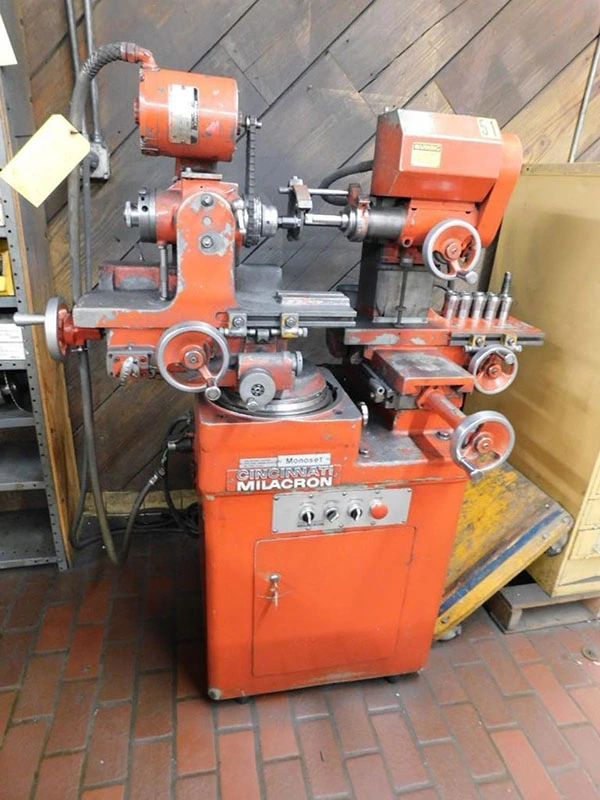

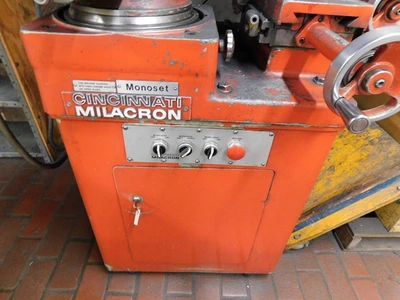

CINCINNATI MILACRON "MONOSET" TOOL & CUTTER GRINDER

** WITH ENORMOUS COMPLIMENT OF ACCESSORIES **

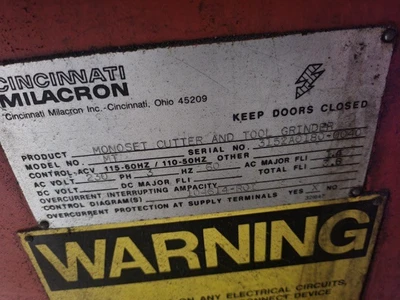

MODEL: MT     S/N:3152A0180-0040        NEW: 1980

CAPACITY -

WORKHEAD SWING OVER MAIN SLIDE, MAX. DIA. ... 12"

MAX. WORKHEAD COLLET HOLE DIA. .............. 1-1/4"

MIN. WORKHEAD COLLET HOLE DIA. .............. 0.12"

MAX. GRINDING WHEEL DIA. .................... 4"

MAX. LENGTH OF WORK BETWEEN SPINDLE &

TAILSTOCK CENTER ............................ 6"

RANGE -

WORKHEAD SLIDE TRAVEL:

LONGITUDINAL ................................ 5-3/4"

CROSS ....................................... 5-3/4"

WORKHEAD ANGULAR ADJUSTMENT:

MAX. TURNTABLE SWIVEL ....................... 235°

ABOVE AND BELOW CENTER ...................... 40°

WHEELHEAD SLIDE TRAVEL:

LONGITUDINAL ................................ 6"

CROSS ....................................... 7-1/2"

WHEELHEAD, VERTICAL MOVEMENT:

ABOVE CENTER ................................ 4.5"

BELOW CENTER ................................ 5"

SPEEDS -

(3) WHEELHEAD SPINDLE SPEEDS ..... 4K, 5,730 & 8K RPM

(1) WORKHEAD SPINDLE SPEED ....... 436 RPM

APPROXIMATE WEIGHT ............... 1,500 LBS.

MACHINE FEATURES:

HARD WAYS & SCREWS

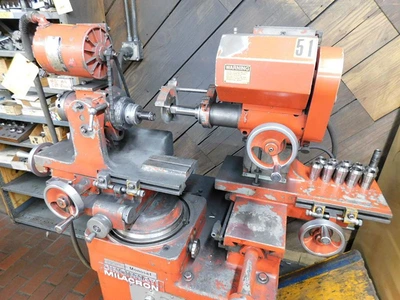

MOTORIZED WORKHEAD

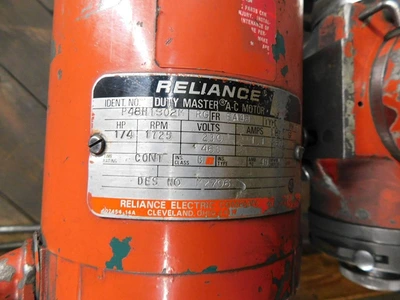

1/4 HP 3/60/230-460 VOLT MOTORIZED WORKHEAD

BIJUR ONE-SHOT LUBRICATION SYSTEM

1/2 HP 230-460 VOLT WHEELHEAD DRIVE MOTOR

MACHINE IS PRESENTLY WIRED FOR 3/60/230 VOLTS

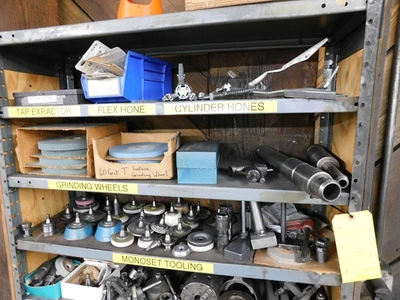

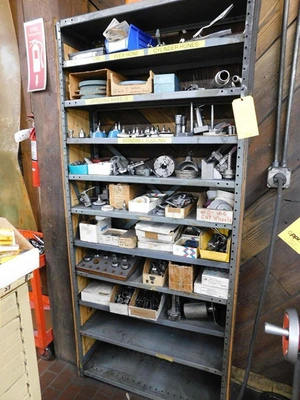

"C" SERIES COLLETS

"A" SERIES COLLETS

TAPERED HOLE COLLETS

INDEX PLATES

CHUCK

WHEEL ARBORS

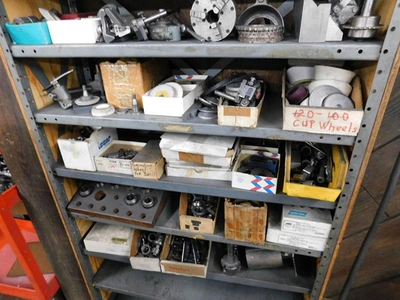

DIAMOND CUP WHEELS

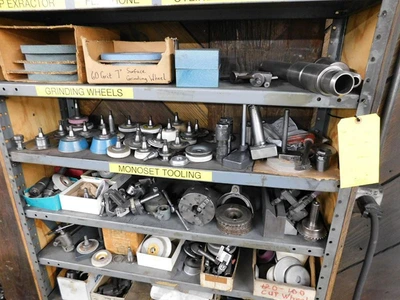

STONE WHEELS

SO MUCH MORE!

EVERYTHING YOU SEE, YOU GET!

** EXCELLENT CONDITION & APPEARANCE  **

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
